How to Install
3
7
4, 8, 9
5
FASTENER TORQUE: M10 19 Nm (14 FT-LB)
U/T1 96 V/T2 97 W/T3 98 U/T1 96
6
1 External temperature monitoring
2 AUX relay
01 02
04 05
3 NAMUR
4 AUX fan
100 101
L1 L2
5 Brake
-R +R
81 82
6 Motor
U
96 97
T1 T2
7 NAMUR fuse. See Table 4.16 for part numbers.
8 Fan fuses. See Table 4.13 for part numbers.
9 SMPS fuses. See Table 4.12 for part numbers.

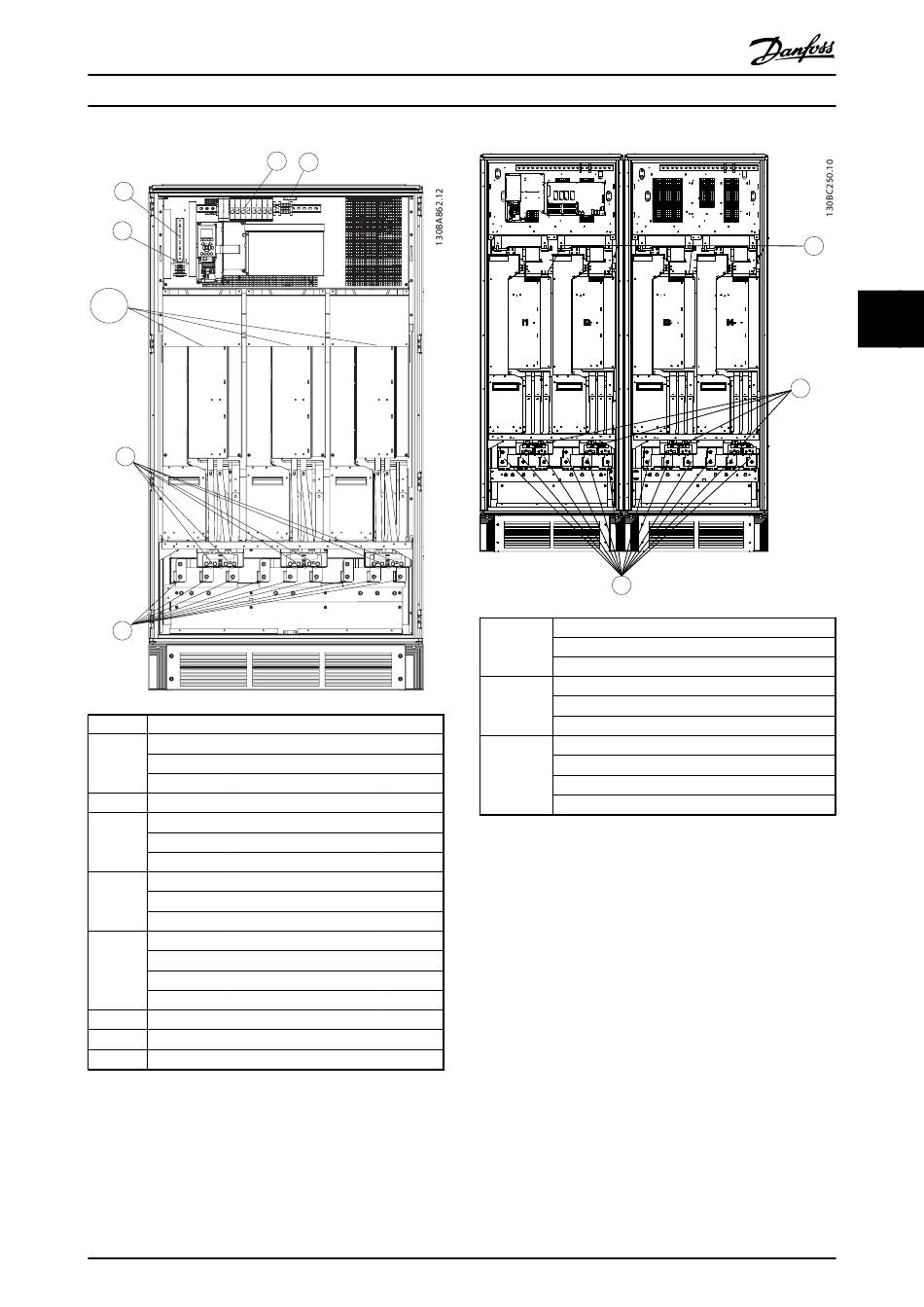

Illustration 4.8 Inverter Cabinet, Enclosure Sizes F12 and F13
MG20Y202
Operating Instructions
1 2
FASTENER TORQUE: M10 19 Nm (14 FT-LB) FASTENER TORQUE: M10 19 Nm (14 FT-LB)
V/T2 97 W/T3 98 U/T1 96 V/T2 97 W/T3 98
03
06
102 103
L1 L2
V W
98
T3
