Profibus DP Mk2 Option Card Installation Manual
4.4 Redundant Systems – RedCom Redundancy
The RedCom Dual Channel Profibus DP (Mk2) Option Card version has two redundant
communications channels. Like the Simple card, the RedCom card supports two types of redundant
operation and the details are as described in Profibus Guideline 2.212 'Specification Slave
redundancy'. The two modes are:

SR – System Redundancy (One common slave address)

FR – Flying Redundancy (Two slave addresses offset by 64)
The Rotork Profibus DP (Mk2) RedCom Dual Channel Option Card obeys the Profibus REDCOM
Specification for Redundant Communications. This includes 3 bytes of Extended Diagnostics for
RedState. Not all PLC systems can accept these diagnostic messages.
As with the Simple Redundant card, there are two basic considerations when looking at redundant
systems; protection against the failure of the connecting cable and protection against failure of the
device. Most systems consider cable protection to be the most important and this is termed 'SR' or
System Redundancy. The alternative setup, using only a single cable, but with two Profibus
connections is termed 'FR' or Flying Redundancy. With FR systems there are two Profibus interfaces
on the slave, but only one slave, so protection against failure of the Profibus interface is included. SR
and FR are described in more detail in the previous section.

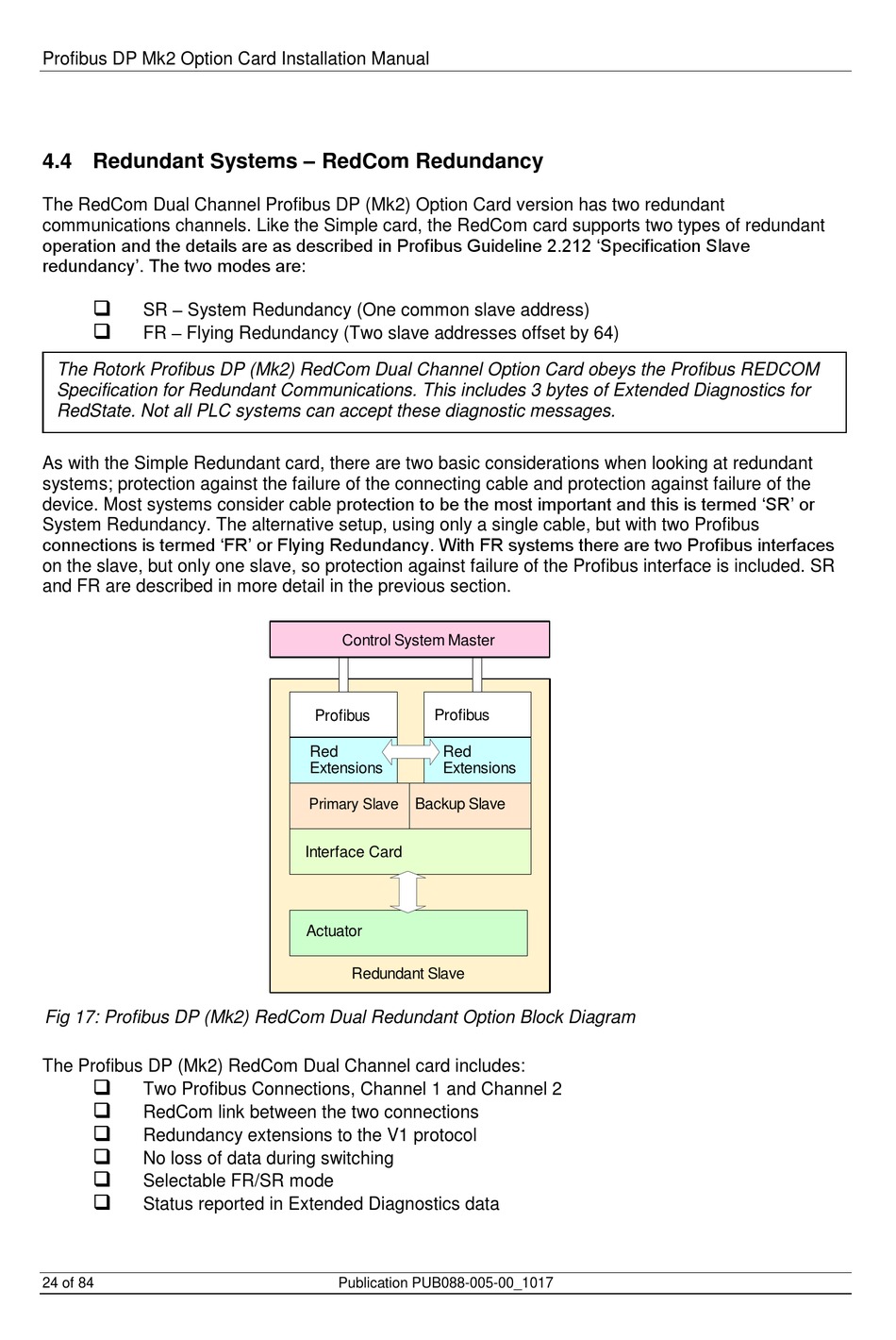

Fig 17: Profibus DP (Mk2) RedCom Dual Redundant Option Block Diagram
The Profibus DP (Mk2) RedCom Dual Channel card includes:

Two Profibus Connections, Channel 1 and Channel 2

RedCom link between the two connections

Redundancy extensions to the V1 protocol

No loss of data during switching

Selectable FR/SR mode

Status reported in Extended Diagnostics data
24 of 84
Control System Master
Profibus
Profibus
Red Red
Extensions Extensions
Primary Slave Backup Slave
Interface Card
Actuator
Redundant Slave
Publication PUB088-005-00_1017
