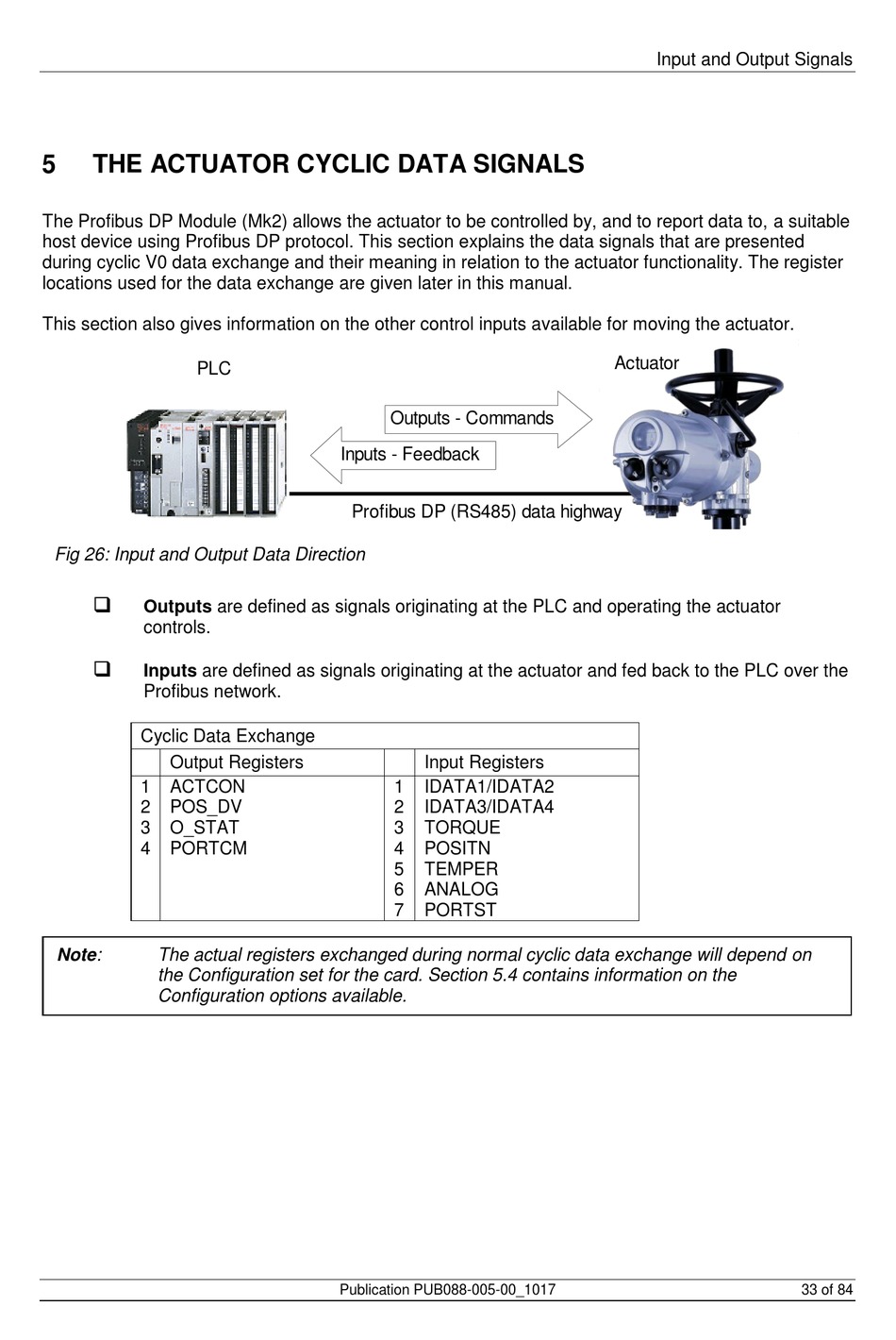

THE ACTUATOR CYCLIC DATA SIGNALS

The Profibus DP Module (Mk2) allows the actuator to be controlled by, and to report data to, a suitable
host device using Profibus DP protocol. This section explains the data signals that are presented
during cyclic V0 data exchange and their meaning in relation to the actuator functionality. The register
locations used for the data exchange are given later in this manual.
This section also gives information on the other control inputs available for moving the actuator.
PLC
Fig 26: Input and Output Data Direction

Outputs are defined as signals originating at the PLC and operating the actuator
controls.

Inputs are defined as signals originating at the actuator and fed back to the PLC over the
Profibus network.
Cyclic Data Exchange
Output Registers
1 ACTCON
2 POS_DV
3 O_STAT
4 PORTCM
Note: The actual registers exchanged during normal cyclic data exchange will depend on
the Configuration set for the card. Section 5.4 contains information on the
Configuration options available.
Outputs - Commands
Inputs - Feedback
Profibus DP (RS485) data highway
Input Registers
1 IDATA1/IDATA2
2 IDATA3/IDATA4
3 TORQUE
4 POSITN
5 TEMPER
6 ANALOG
7 PORTST
Publication PUB088-005-00_1017
Input and Output Signals
Actuator
33 of 84
