Profibus DP Mk2 Option Card Installation Manual

3.2 Inside a Q actuator

The PFU is fitted in the option board position in this actuator. Only one option board may be fitted at
any one time. The necessary internal components must also be present; in this case a potentiometer
and auxiliary limit switches at end of travel must be fitted to the actuator.

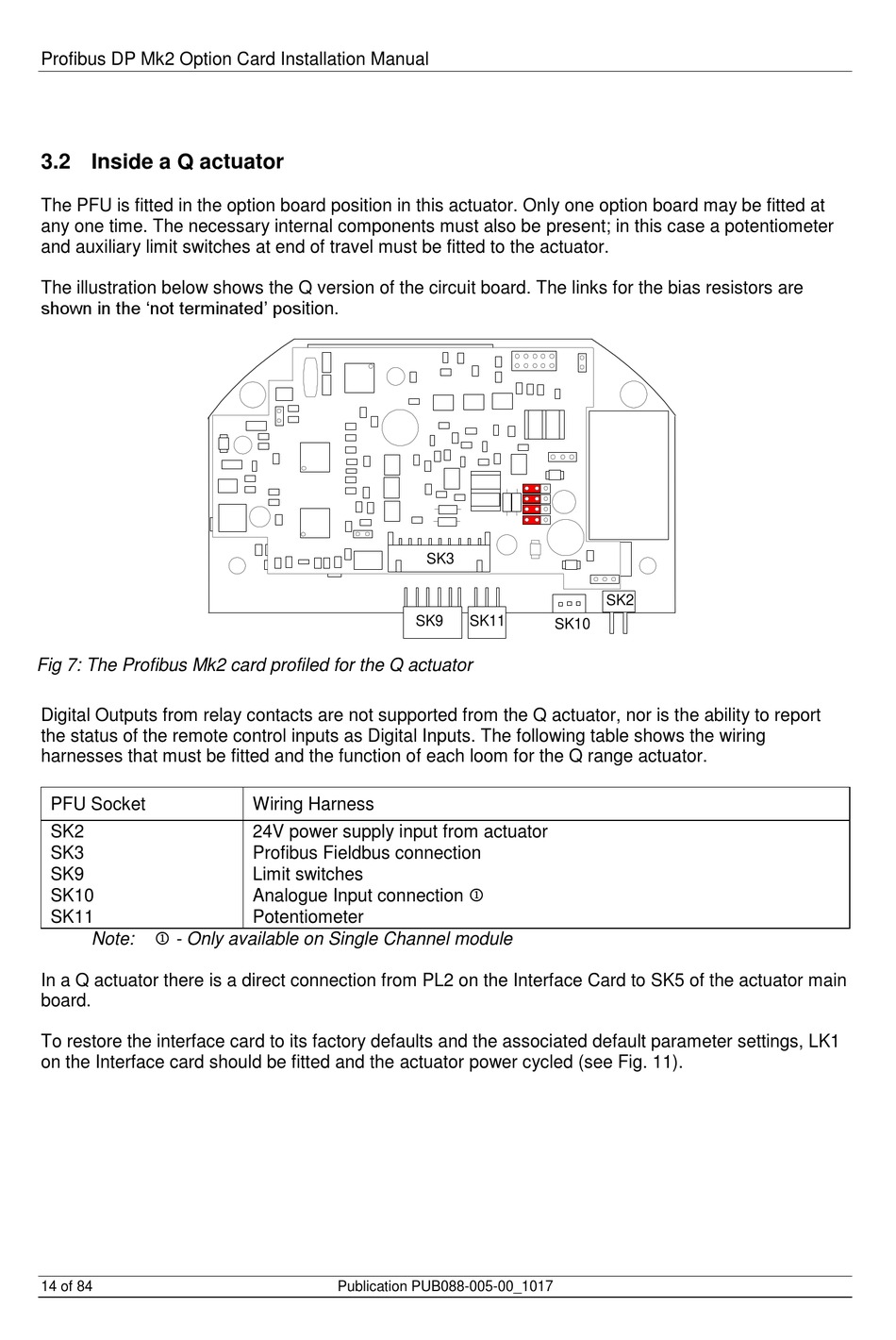

The illustration below shows the Q version of the circuit board. The links for the bias resistors are
shown in the 'not terminated' position.
Fig 7: The Profibus Mk2 card profiled for the Q actuator
Digital Outputs from relay contacts are not supported from the Q actuator, nor is the ability to report
the status of the remote control inputs as Digital Inputs. The following table shows the wiring
harnesses that must be fitted and the function of each loom for the Q range actuator.
PFU Socket
SK2
SK3
SK9
SK10
SK11
 - Only available on Single Channel module
Note:
In a Q actuator there is a direct connection from PL2 on the Interface Card to SK5 of the actuator main
board.
To restore the interface card to its factory defaults and the associated default parameter settings, LK1
on the Interface card should be fitted and the actuator power cycled (see Fig. 11).
14 of 84
EPROM
LK1
Wiring Harness
24V power supply input from actuator
Profibus Fieldbus connection
Limit switches
Analogue Input connection 
Potentiometer
Publication PUB088-005-00_1017
SK3
SK9
SK11
SK10
SK2
