Profibus DP Mk2 Option Card Installation Manual

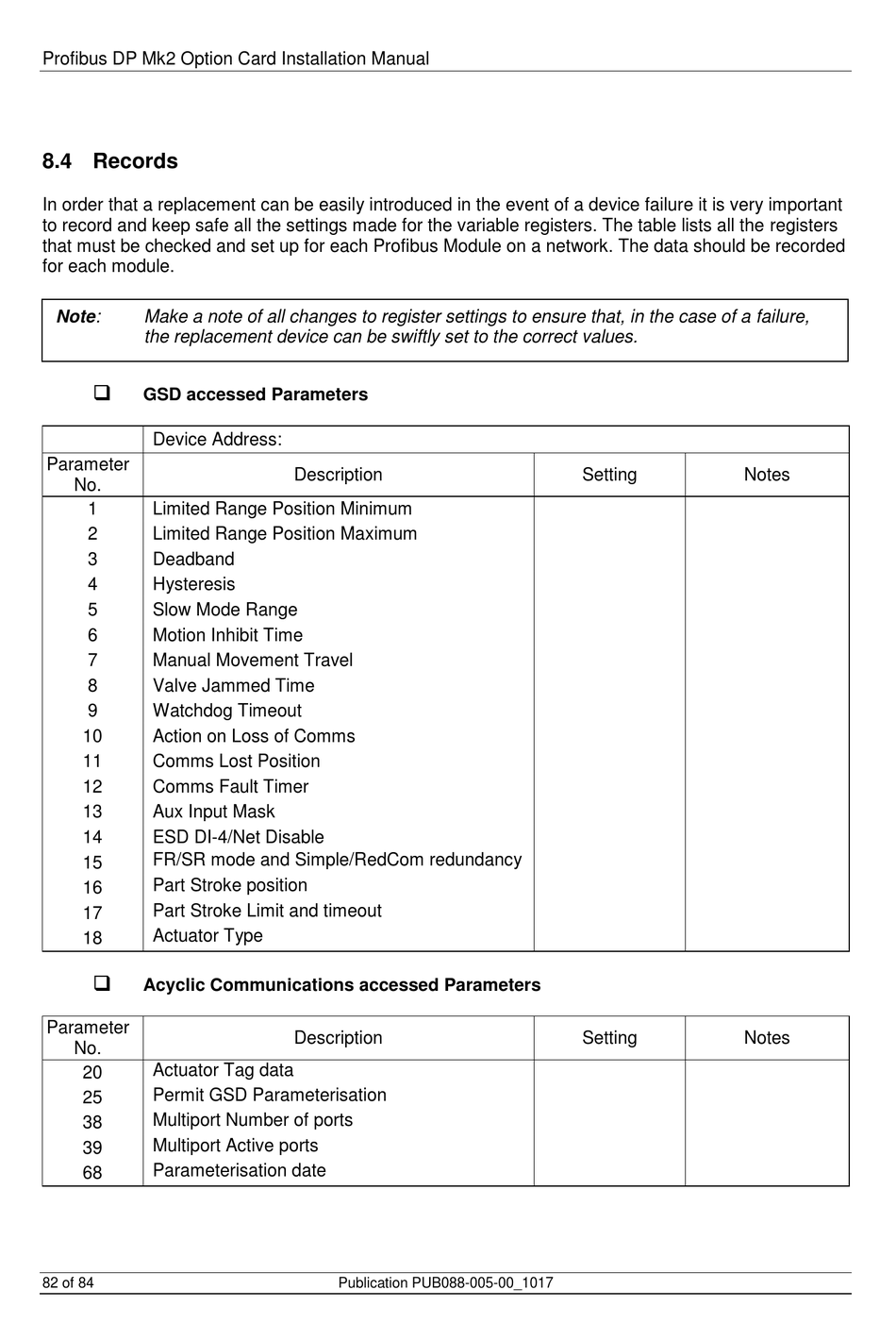

8.4 Records

In order that a replacement can be easily introduced in the event of a device failure it is very important
to record and keep safe all the settings made for the variable registers. The table lists all the registers
that must be checked and set up for each Profibus Module on a network. The data should be recorded
for each module.
Note: Make a note of all changes to register settings to ensure that, in the case of a failure,
the replacement device can be swiftly set to the correct values.

GSD accessed Parameters
Device Address:
Parameter
No.
1 Limited Range Position Minimum
2 Limited Range Position Maximum
3 Deadband
4 Hysteresis
5 Slow Mode Range
6 Motion Inhibit Time
7 Manual Movement Travel
8 Valve Jammed Time
9 Watchdog Timeout
10 Action on Loss of Comms
11 Comms Lost Position
12 Comms Fault Timer
13 Aux Input Mask
14 ESD DI-4/Net Disable
FR/SR mode and Simple/RedCom redundancy
15
Part Stroke position
16
Part Stroke Limit and timeout
17
Actuator Type
18

Acyclic Communications accessed Parameters
Parameter
No.
Actuator Tag data
20
Permit GSD Parameterisation
25
Multiport Number of ports
38
Multiport Active ports
39
Parameterisation date
68
82 of 84
Description
Description
Publication PUB088-005-00_1017
Setting Notes
Setting Notes
