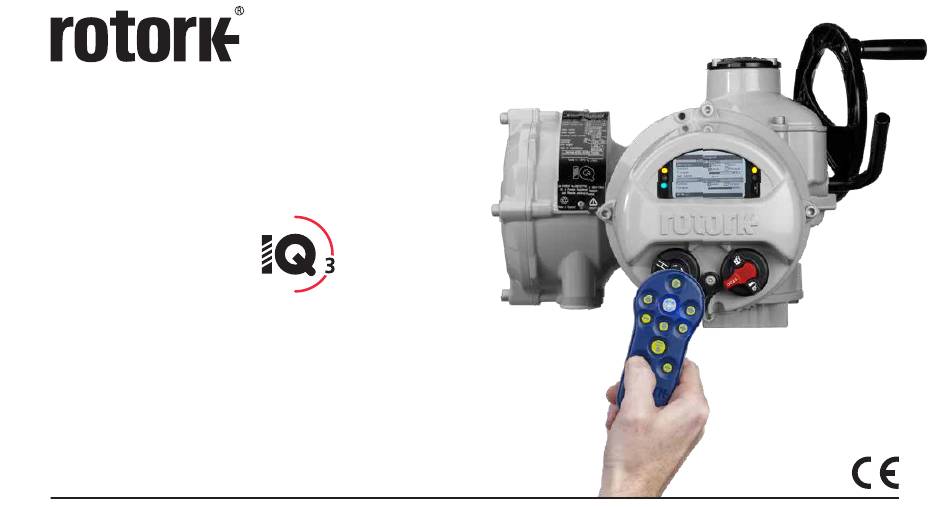

- Page 1 IQ Range Low Temperature Settings Manual PUB002-135-00 Date of issue 11/18...
- Page 2 Left/Decrease Increase Right/ to install, operate, adjust and inspect Save Select/ Rotork IQ range valve actuators in low The Setting Tool will automatically temperature environments using the connect using Bluetooth which segment display. takes up to 5 seconds and when...
- Page 3 Understanding the Display Value Actuator settings and setting values are shown using the segment portion of the LCD. This details the current setting and the setting value where applicable. The adjacent example details the Torque Open setting (tO) is configured for 40% torque (40).
- Page 4 Positional display Positional display IQ Range Low Temperature Settings Manual...
- Page 5 Accessing Actuator Settings With the actuator selected to Local or C3 – Open Action Stop, navigate to the password screen All actuator settings can be viewed OL = Open on position and enter the actuator password as with the actuator selected to Local, shown below.
- Page 6 tO – Opening Torque Help Screens H1 – Local Selector Input Adjustable from 40 – 100 (RA) in A series of help screens are available in If a segment is ON the applicable Close increments of 1. order to indicate status of the actuator condition is active.
- Page 7 H3 – Primary Control H5 – Alarm Status H7 – Relay Status 1 H9 – Fault Status Valve Obstructed Motor Stall Close Stop S1 Active S2 Active Mains Fail Phase Loss Partial Valve EEPROM Encoder Open Stroke Jammed Active Active Present Status Error...
- Page 8 The name Rotork is a registered trademark. Rotork recognises all registered trademarks. The Bluetooth ® word mark and logos are registered trademarks Date of issue 11/18 owned by Bluetooth SIG, Inc. and any use of such marks by Rotork is under license. Published and produced in the UK by Rotork. POWJB1118...
