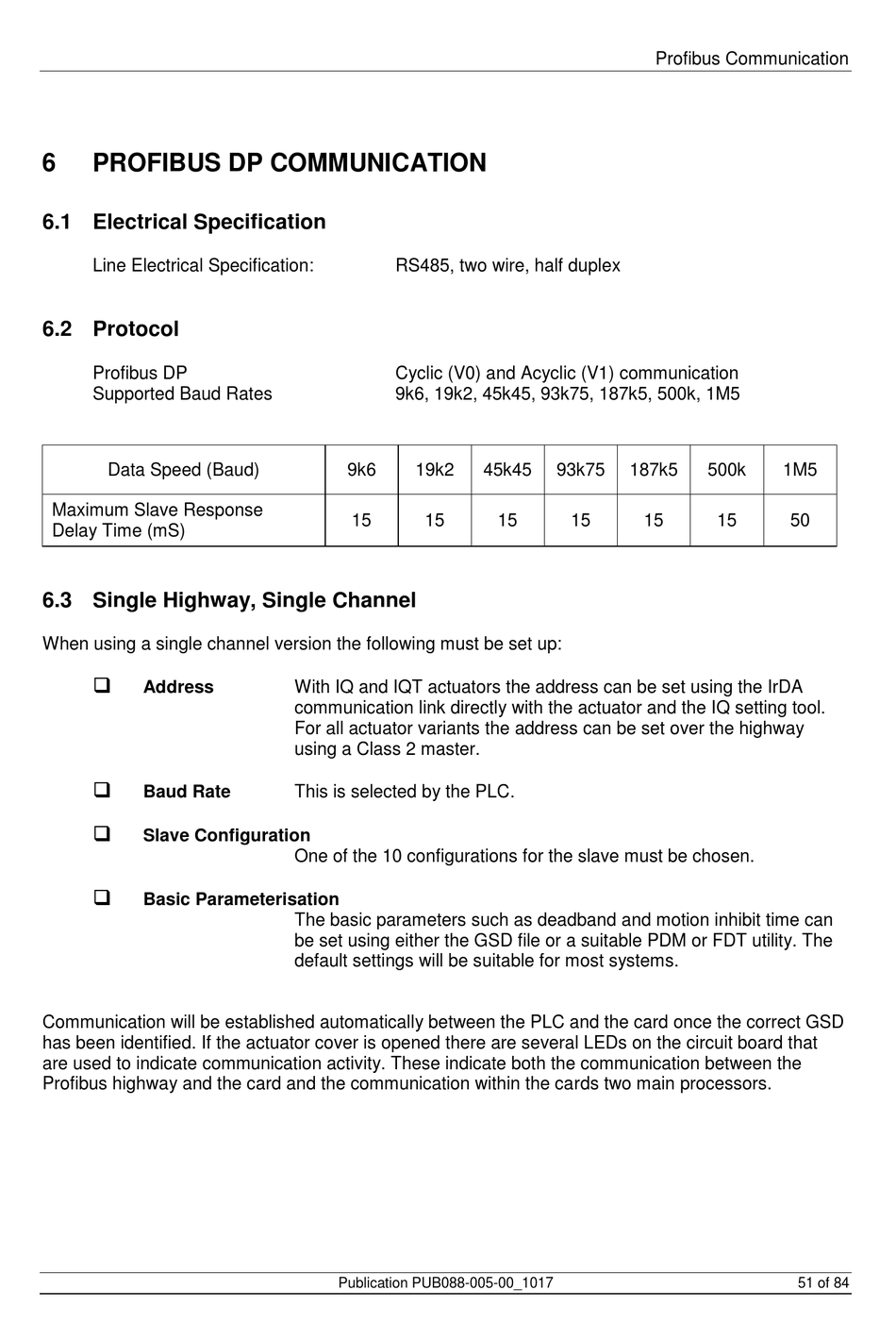

PROFIBUS DP COMMUNICATION

6.1 Electrical Specification

Line Electrical Specification:

6.2 Protocol

Profibus DP
Supported Baud Rates
Data Speed (Baud)
Maximum Slave Response
Delay Time (mS)

6.3 Single Highway, Single Channel

When using a single channel version the following must be set up:

Address

Baud Rate

Slave Configuration

Basic Parameterisation
Communication will be established automatically between the PLC and the card once the correct GSD
has been identified. If the actuator cover is opened there are several LEDs on the circuit board that
are used to indicate communication activity. These indicate both the communication between the
Profibus highway and the card and the communication within the cards two main processors.
RS485, two wire, half duplex
Cyclic (V0) and Acyclic (V1) communication
9k6, 19k2, 45k45, 93k75, 187k5, 500k, 1M5
9k6 19k2
15 15
With IQ and IQT actuators the address can be set using the IrDA
communication link directly with the actuator and the IQ setting tool.
For all actuator variants the address can be set over the highway
using a Class 2 master.
This is selected by the PLC.
One of the 10 configurations for the slave must be chosen.
The basic parameters such as deadband and motion inhibit time can
be set using either the GSD file or a suitable PDM or FDT utility. The
default settings will be suitable for most systems.
Publication PUB088-005-00_1017
45k45 93k75 187k5
15 15 15
Profibus Communication
500k 1M5
15 50
