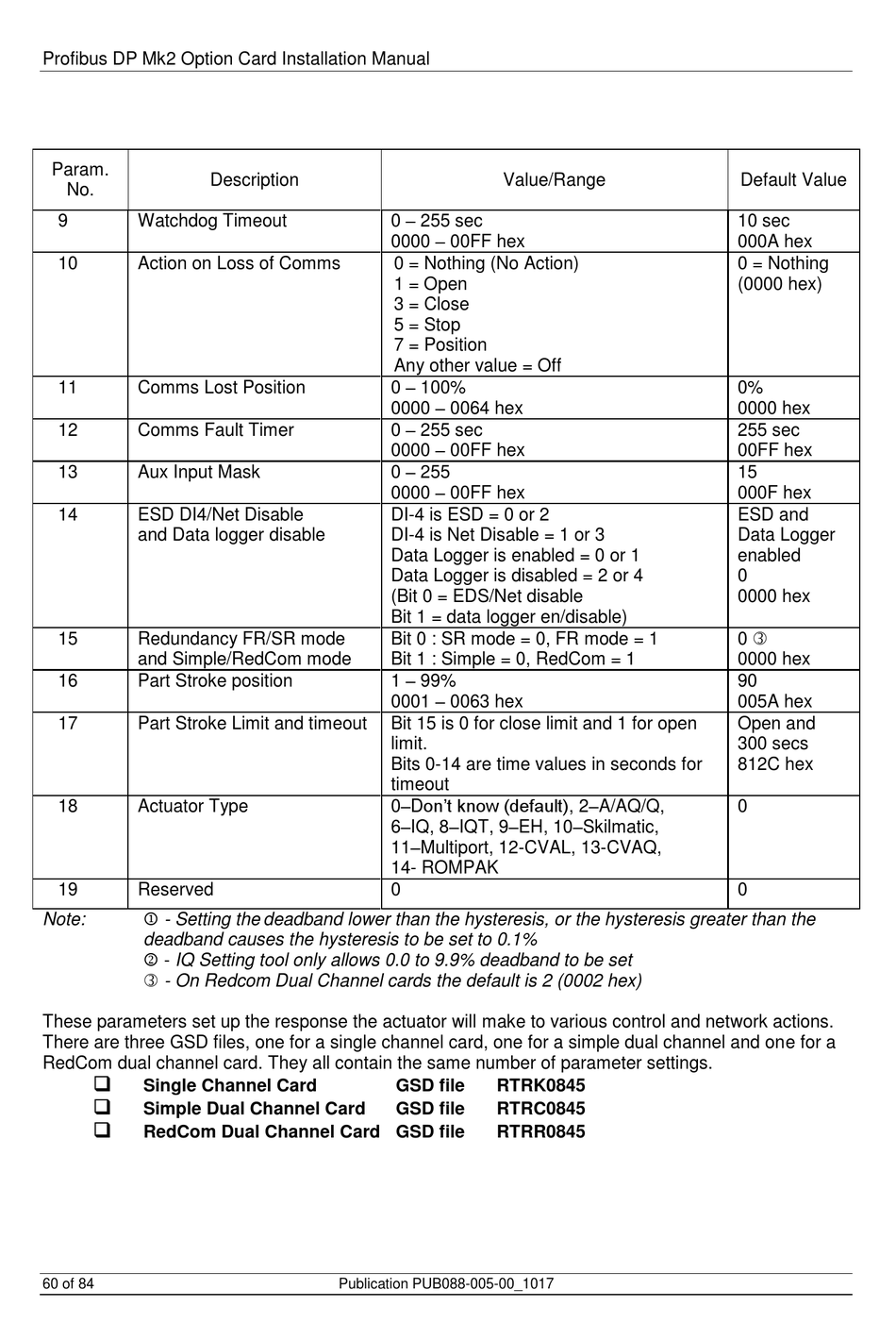

Profibus DP Mk2 Option Card Installation Manual
Param.
Description
No.
9
Watchdog Timeout
10
Action on Loss of Comms
11
Comms Lost Position
12
Comms Fault Timer
13
Aux Input Mask
14
ESD DI4/Net Disable
and Data logger disable
15
Redundancy FR/SR mode
and Simple/RedCom mode
16
Part Stroke position
17
Part Stroke Limit and timeout
18
Actuator Type
19
Reserved
- Setting the deadband lower than the hysteresis, or the hysteresis greater than the
Note:
deadband causes the hysteresis to be set to 0.1%
- IQ Setting tool only allows 0.0 to 9.9% deadband to be set
- On Redcom Dual Channel cards the default is 2 (0002 hex)
These parameters set up the response the actuator will make to various control and network actions.
There are three GSD files, one for a single channel card, one for a simple dual channel and one for a
RedCom dual channel card. They all contain the same number of parameter settings.
Single Channel Card
Simple Dual Channel Card
RedCom Dual Channel Card GSD file
60 of 84
Value/Range
0 – 255 sec
0000 – 00FF hex
0 = Nothing (No Action)
1 = Open
3 = Close
5 = Stop
7 = Position
Any other value = Off
0 – 100%
0000 – 0064 hex
0 – 255 sec
0000 – 00FF hex
0 – 255
0000 – 00FF hex
DI-4 is ESD = 0 or 2
DI-4 is Net Disable = 1 or 3
Data Logger is enabled = 0 or 1
Data Logger is disabled = 2 or 4
(Bit 0 = EDS/Net disable
Bit 1 = data logger en/disable)
Bit 0 : SR mode = 0, FR mode = 1
Bit 1 : Simple = 0, RedCom = 1
1 – 99%
0001 – 0063 hex
Bit 15 is 0 for close limit and 1 for open
limit.
Bits 0-14 are time values in seconds for
timeout
0–Don't know (default), 2–A/AQ/Q,
6–IQ, 8–IQT, 9–EH, 10–Skilmatic,
11–Multiport, 12-CVAL, 13-CVAQ,
14- ROMPAK
0
GSD file
RTRK0845
GSD file
RTRC0845
RTRR0845
Publication PUB088-005-00_1017
Default Value
10 sec
000A hex
0 = Nothing
(0000 hex)
0%
0000 hex
255 sec
00FF hex
15
000F hex
ESD and
Data Logger
enabled
0
0000 hex
0
0000 hex
90
005A hex
Open and
300 secs
812C hex
0
0
