Profibus DP Mk2 Option Card Installation Manual
8.1.2

PDM (Process Device Manager)

This utility uses EDD device description files and the PDM programme from Siemens. A typical
configuration screen is illustrated below.

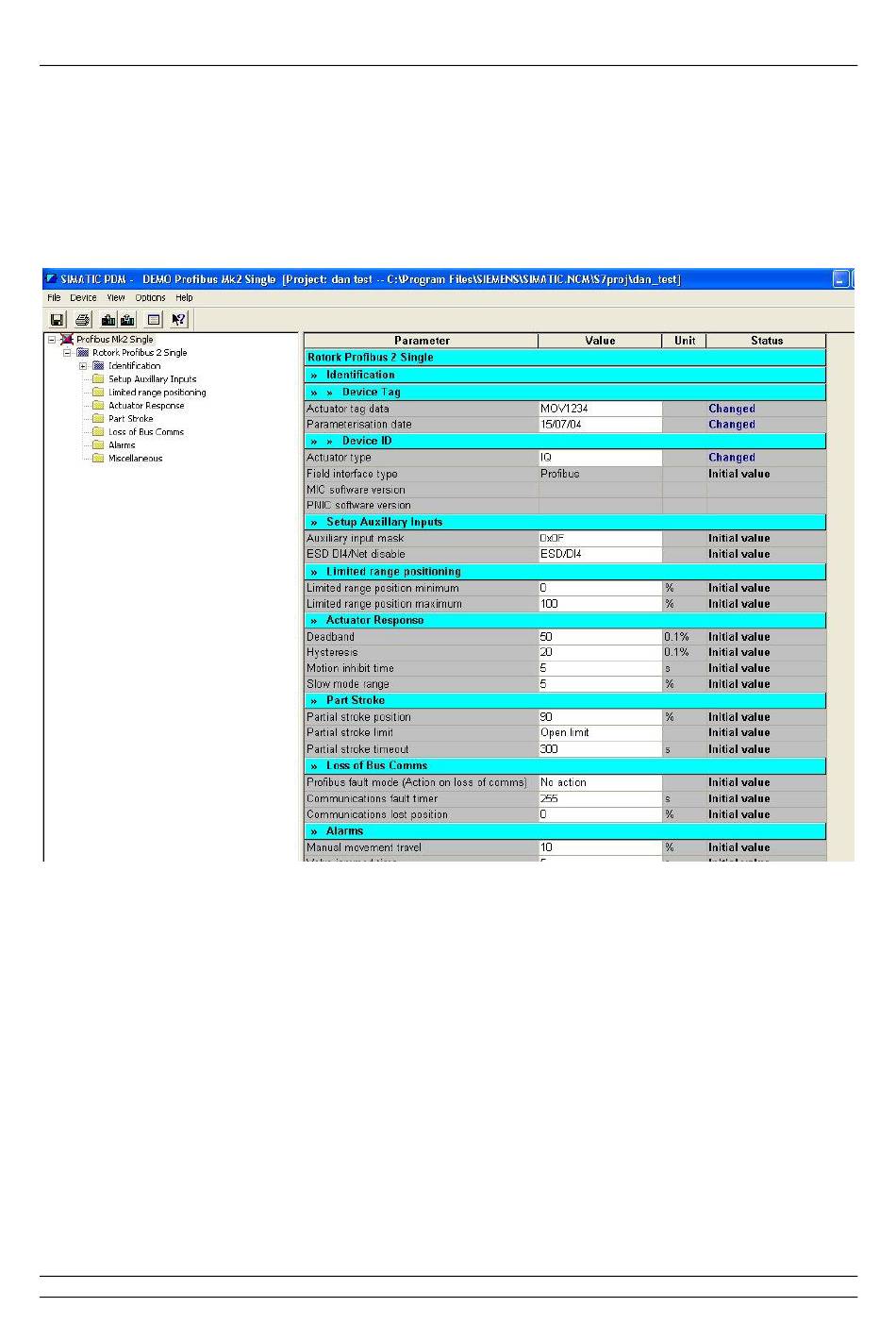

Fig 40: Rotork EDD running in the Siemens PDM application
As with FDT, the parameters and the control and review of actuator information can all be carried out
in PDM using the EDD device description file.
78 of 84 Publication PUB088-005-00_1017
