rotork Schischek RedMax BF Series Quick Start Manual

RedMax ¼ turn actuators – size M
Electrical, explosion proof rotary actuators with
integrated Ex-i tripping circuit for safety temperature trigger ExPro-TT
On-off / 3-pos. control mode, 24...240 VAC/DC, 95° angle of rotation incl. 5° pretension
30 – 50 – 60 Nm with safety operation (spring return)
ATEX tested in acc. with directive 2014/34/EU for zone 2, 22
Compact. Easy installation. Universal. Cost effective. Safe.
Type Torque Supply
RedMax- 30 - BF 30 Nm 24...240 VAC/DC 40 / 60 / 90 / 120 / 150 s/90° ~ 20 s/90°
RedMax- 50 - BF 50 Nm 24...240 VAC/DC 40 / 60 / 90 / 120 / 150 s/90° ~ 20 s/90°
RedMax- 60 - BF 60 Nm 24...240 VAC/DC 40 / 60 / 90 / 120 s/90°
RedMax- ... - CTM Types as above with aluminium housing and seawater resistant coating (cable glands brass nickel-plated)
RedMax- ... - VAM Types as above with stainless steel housing for aggressive ambient (cable glands brass nickel-plated)

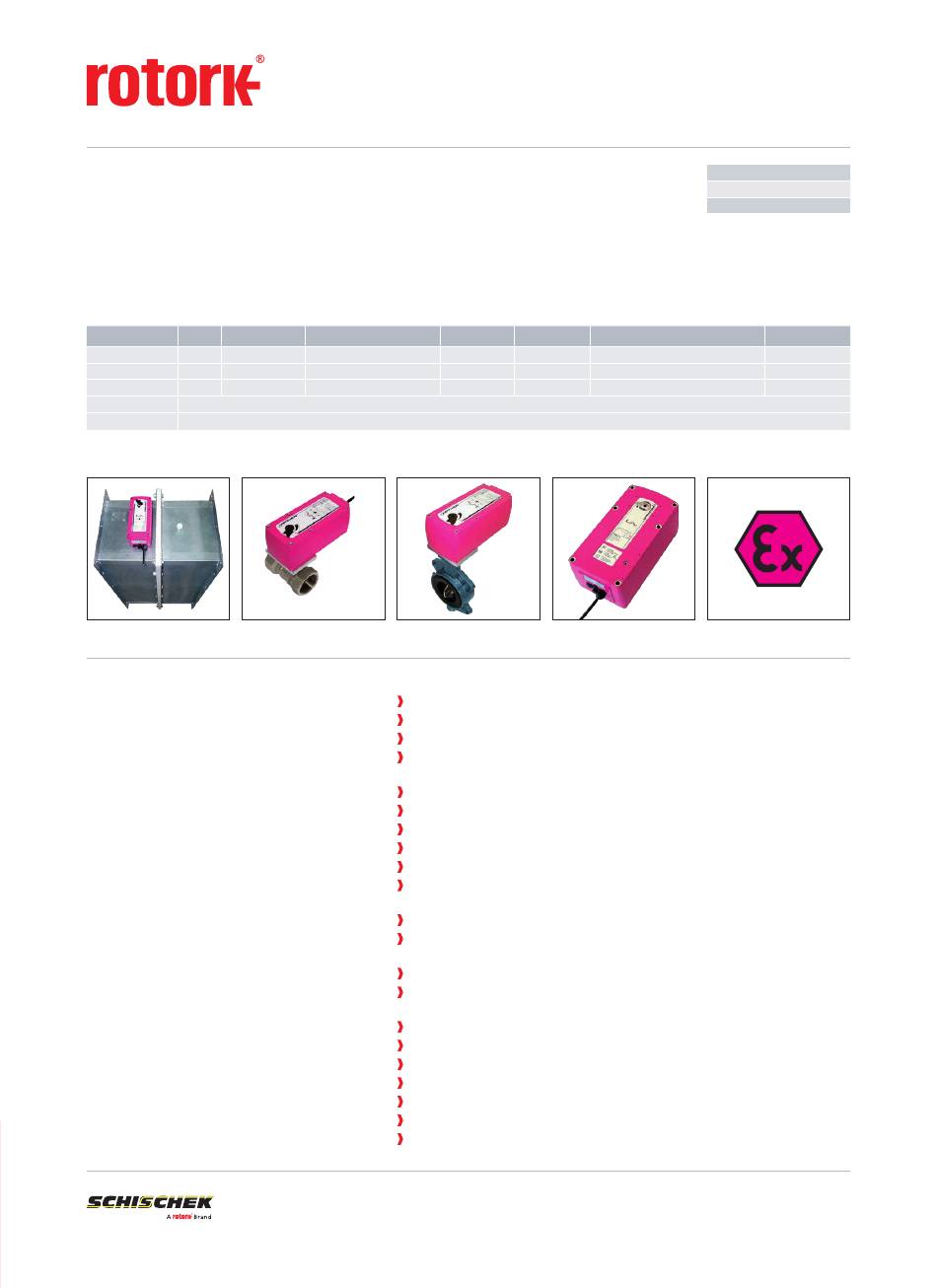

Product views and applications
Fire damper Ball valve
Description
The RedMax actuators are a revolution for safety, fire and
shut-off dampers, VAV systems, ball valves, throttle valves
and other motorized applications for HVAC systems in
chemical, pharmaceutical, industrial and offshore/onshore
plants, for use in Ex-areas zone 2 (gas) and zone 22 (dust).
Highest protection class (ATEX) and IP67 protection,
small dimensions, only 9,5 kg weight, universal functions
and technical data, an integrated heater and an optional
stainless steel housing guarantee safe operation even under
difficult environmental conditions. High quality brushless
motors guarantee long life.
All actuators are programmable and adjustable on site.
Special tools or equipment are not required. Motor running
times are selectable or adjustable on site. The integrated
universal power supply is self adaptable to input voltages
in the range of 24...240 VAC/DC. The actuators are 100 %
overload protected.
...Max-...-BF actuators are equipped with spring return
fail safe function, with 2 integrated auxiliary switches for
end position indication and an intrinsically safe tripping
circuit for connecting the ...Pro-TT-... safety temperature
trigger. Standard shaft connection is a double square direct
coupling with 16 × 16 mm.
Different accessories are available to adapt auxiliary
switches, terminal boxes or adaptions for ball valves and
throttle valves and other armatures.
Motor running time Spring return Control mode Feedback
~ 20 s/90°
Throttle valve
Highlights
For all types of gases, mists, vapours and dusts in zones 2 and 22
Universal supply unit from 24...240 VAC/DC
Motor running times 40–60–90–120–150 s/90° adjustable on site
On-off and 3-pos. control with spring return function, running time
~ 20 s/90°
Ex-i circuit for direct connection of the ...Pro-TT-... safety temperature trigger
2 integrated auxiliary switches, switching at 5° and 85° angle of rotation
30–50–60 Nm actuators in the same housing size
100 % overload protected
Compact design and small dimension (L × W × H ~ 288 × 149 × 116 mm)
Direct coupling to the damper shaft with double square connection
16 × 16 mm
95° angle of rotation inclusive 5° pretension
Robust aluminium housing (optional with seawater resistant coating)
or in stainless steel
IP67 protection
Simple manual override included + preparation for comfortable
manual override
Gear made of stainless steel and sinter metal
Weight only ~ 9,5 kg
Integrated heater for ambient temperatures down to −40 °C
Integrated safety temperature sensor
Integrated equipment for manual adjustment (push button, lamp, switch)
Preparation for adaptable and adjustable auxiliary switches type ...Switch
Wide range of accessories
Special options ... -CTM ... -VAM
On-off, 3-pos. 2 × aux. switches + Ex-i tripping circuit SB 7.2/7.3
On-off, 3-pos. 2 × aux. switches + Ex-i tripping circuit SB 7.2/7.3
On-off, 3-pos. 2 × aux. switches + Ex-i tripping circuit SB 7.2/7.3
RedMax ¼ turn actuators
RedMax-...-BF
RedMax - ... - BF
RedMax - ... - CTM
RedMax - ... - VAM
Subject to change!
