Profibus DP Mk2 Option Card Installation Manual

1.1 General

The Profibus DP Module (Mk2) has three versions:

Single Channel Profibus DP plus one analogue input channel

Simple Dual Channel, independent isolated Profibus DP highways for redundant systems
that do not support full RedCom

RedCom Dual Channel, independent isolated Profibus DP highways for RedCom
compliant systems
The two dual channel versions have the same physical assembly, but are configurable to include the
necessary extra messages for RedCom systems. PLCs that cannot accept the extended diagnostic
messages from RedCom slaves should use the Simple Dual channel card. The reporting of RedCom
extended diagnostics can be selected from the GSD file.

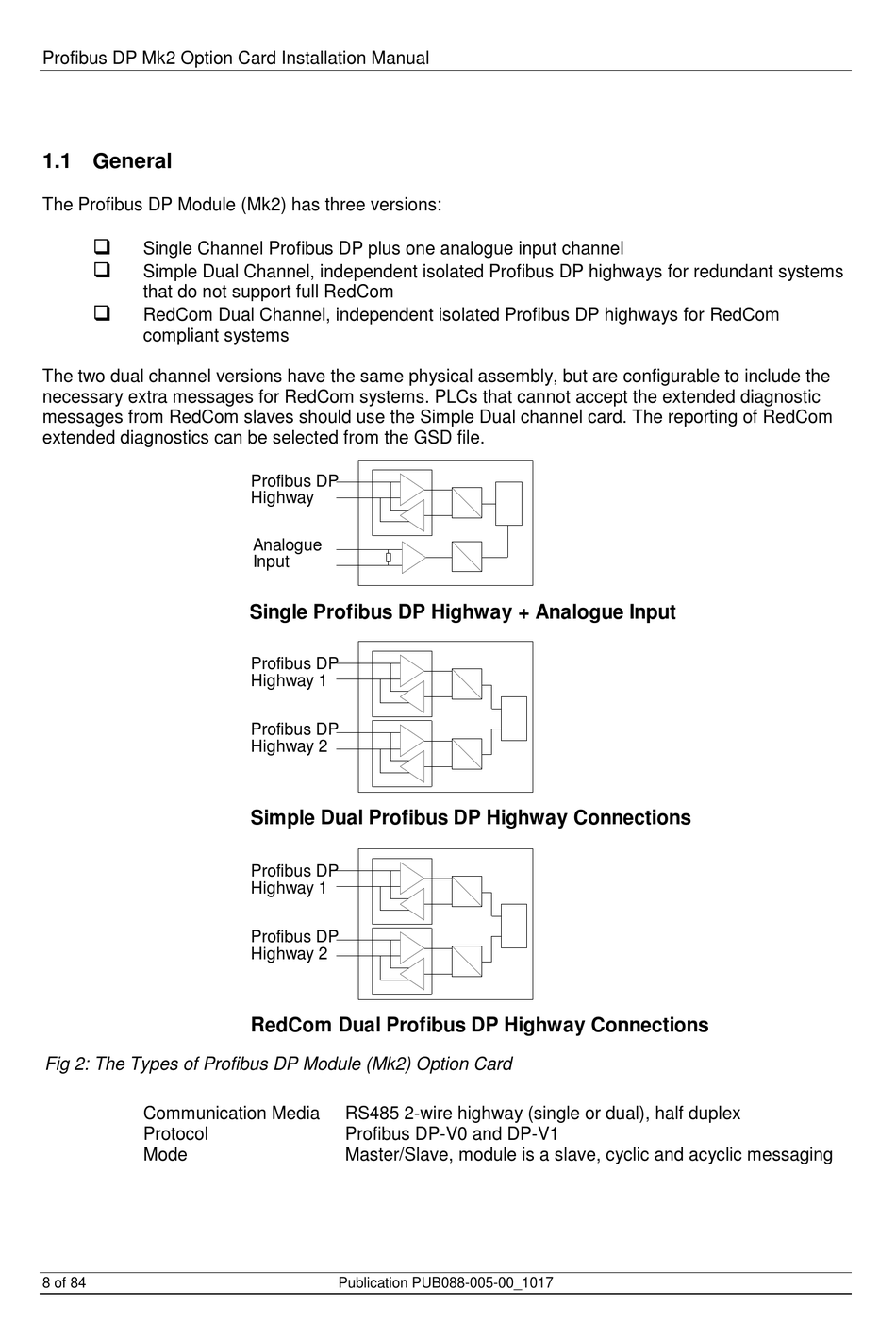

Fig 2: The Types of Profibus DP Module (Mk2) Option Card
Communication Media
Protocol
Mode
8 of 84
Profibus DP
Highway
Analogue
Input
Single Profibus DP Highway + Analogue Input
Profibus DP
Highway 1
Profibus DP
Highway 2
Simple Dual Profibus DP Highway Connections
Profibus DP
Highway 1
Profibus DP
Highway 2
RedCom Dual Profibus DP Highway Connections
RS485 2-wire highway (single or dual), half duplex
Profibus DP-V0 and DP-V1
Master/Slave, module is a slave, cyclic and acyclic messaging
Publication PUB088-005-00_1017
