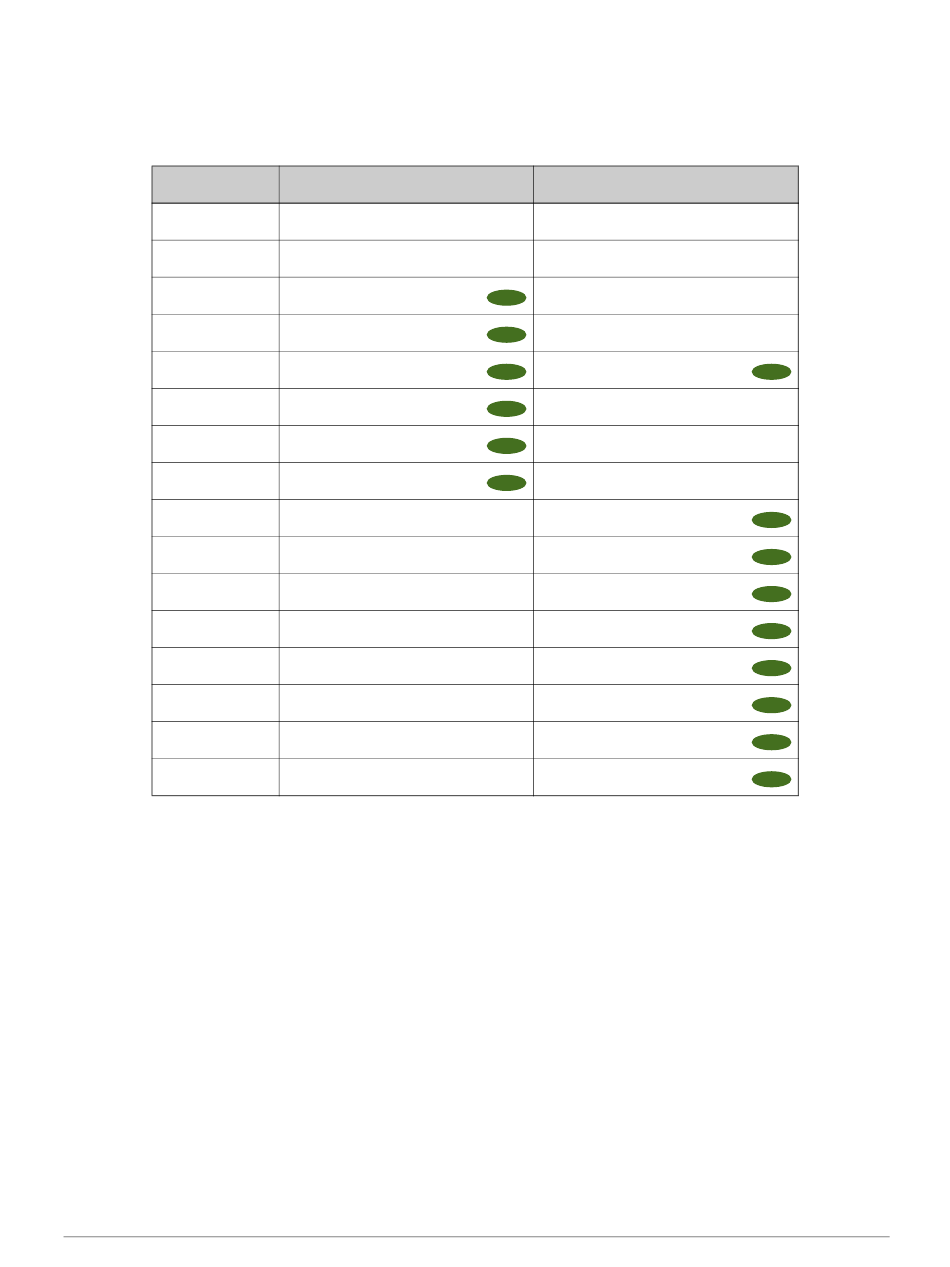

Table 6-2 shows the structure of the external interrupt vector table. Each interrupt vector falls on a 16-byte
boundary inside the table. Interrupts that are new to the Rabbit 6000 are highlighted as such.
Table 6-2. External Interrupt Vector Table Structure
Offset
0x00
0x10
0x20
0x30
0x40
0x50
0x60
0x70
0x80
0x90
0xA0
0xB0
0xC0
0xD0
0xE0
0xF0
Note that the breakpoint interrupt moved from its location in previous Rabbit processors to make room for
the new external interrupt vectors.
