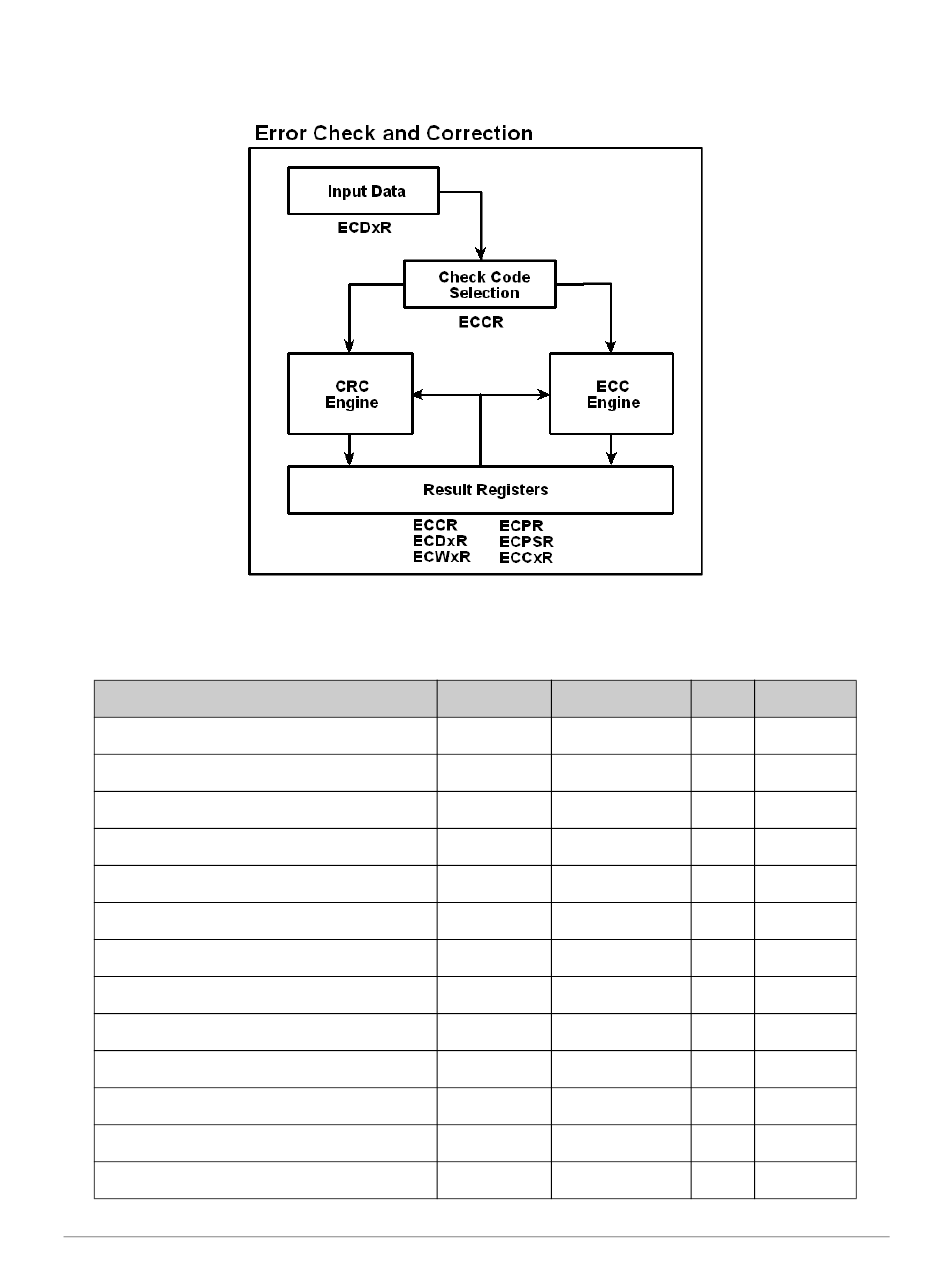

34.1.1 Block Diagram

34.1.2 Registers

Register Name
ECC Data 0 Register
ECC Data 1 Register
ECC Data 2 Register
ECC Data 3 Register
ECC Control Register
ECC CP Read Register
ECC CP Read Shifted Register
ECC Write 0 Register
ECC Write 1 Register
ECC Write 2 Register
ECC Write 3 Register
ECC Count 0 Register
ECC Count 1 Register
Rabbit 6000 User's Manual
Mnemonic I/O Address
ECD0R 0x05C0
ECD1R 0x05C1
ECD2R 0x05C2
ECD3R 0x05C3
ECCR 0x05C4
ECPR 0x05C4
ECPSR 0x05C6
ECW0R 0x05C7
ECW1R 0x05C8
ECW2R 0x05C9
ECW3R 0x05CA
ECC0R 0x05CB
ECC1R 0x05CC
digi.com
R/W Reset
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
R/W 00000000
