Machine description – quick overview
Machine control – Operating elements
4.2
Machine control – Operating elements
4.2.1

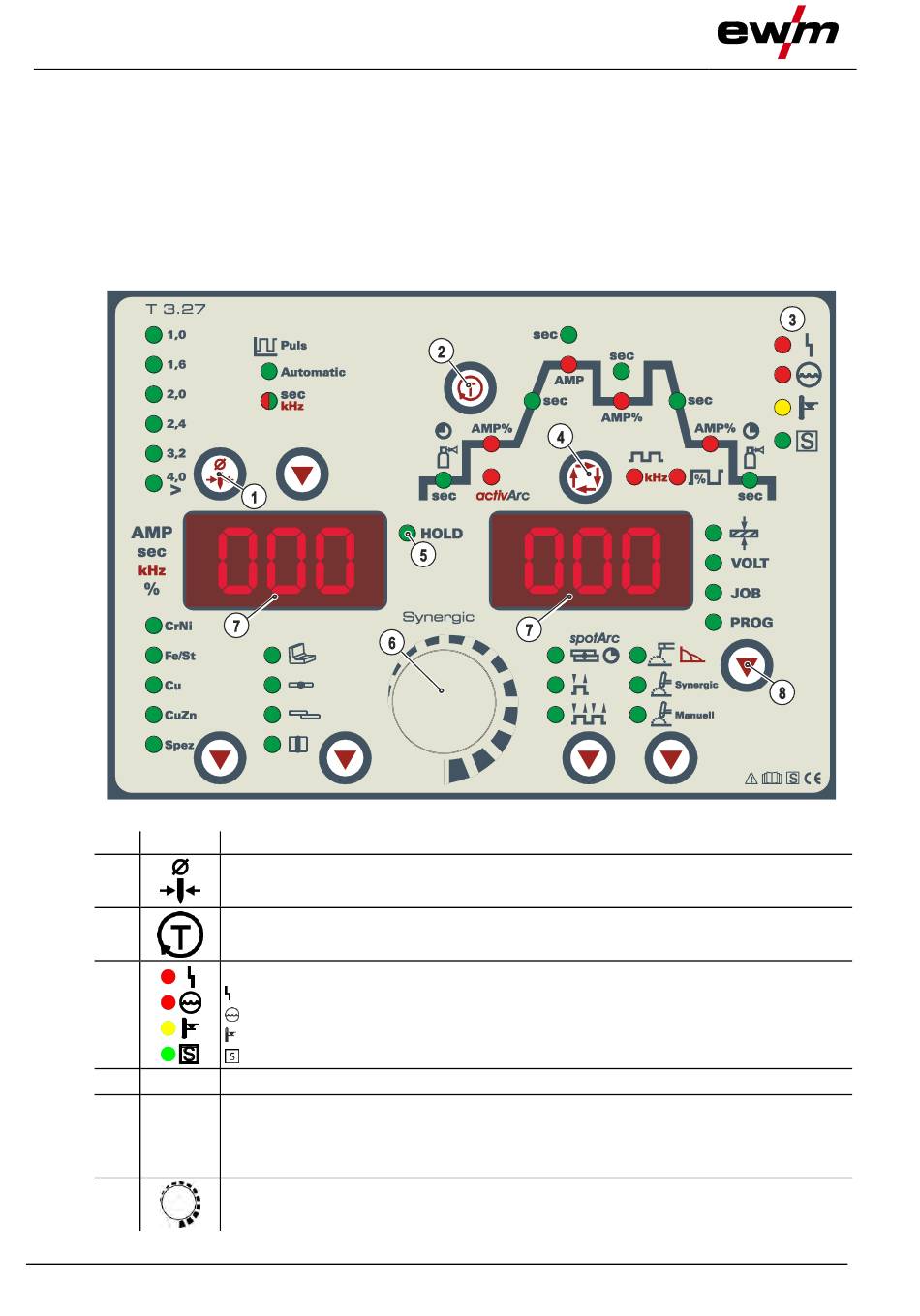

Machine control (Mode RC - on)

This welding machine is operated in 'RC – on, remote-controlled' mode ex works.
RC – on: The machine is controlled via an external interface in this mode. The majority of
operating elements on the machine control are deactivated and are used to check the welding
data only.
RC – off: The welding machine is controlled using the machine control.
To switch to a different operating mode > see 5.11 chapter.
Item Symbol
1
2
3
4
5
Hold
6
18
Description
0
Electrode diameter push-button > see 5.4 chapter
Ignition optimisation (TIG) > see 5.4.3 chapter
Gas test/rinse hose package button
> see 5.1.8 chapter
Error/status indicators
------- Collective interference signal light
--------- Water deficiency signal light (welding torch cooling)
--------- Excess temperature signal light
--------- S safety sign signal light
Functional sequence > see 4.2.1.1 chapter
Signal light Status display
After each completed welding task, the last values used in the welding process for the
welding current and welding voltage are shown on the displays, and the signal light will
be on
Welding parameter setting rotary dial
Setting currents, times and parameters.
Figure 4-2
099-000141-EW501
22.03.2023
