Teldat Atlas-i70 Installation Manual page 16

3 Components and Power Supply

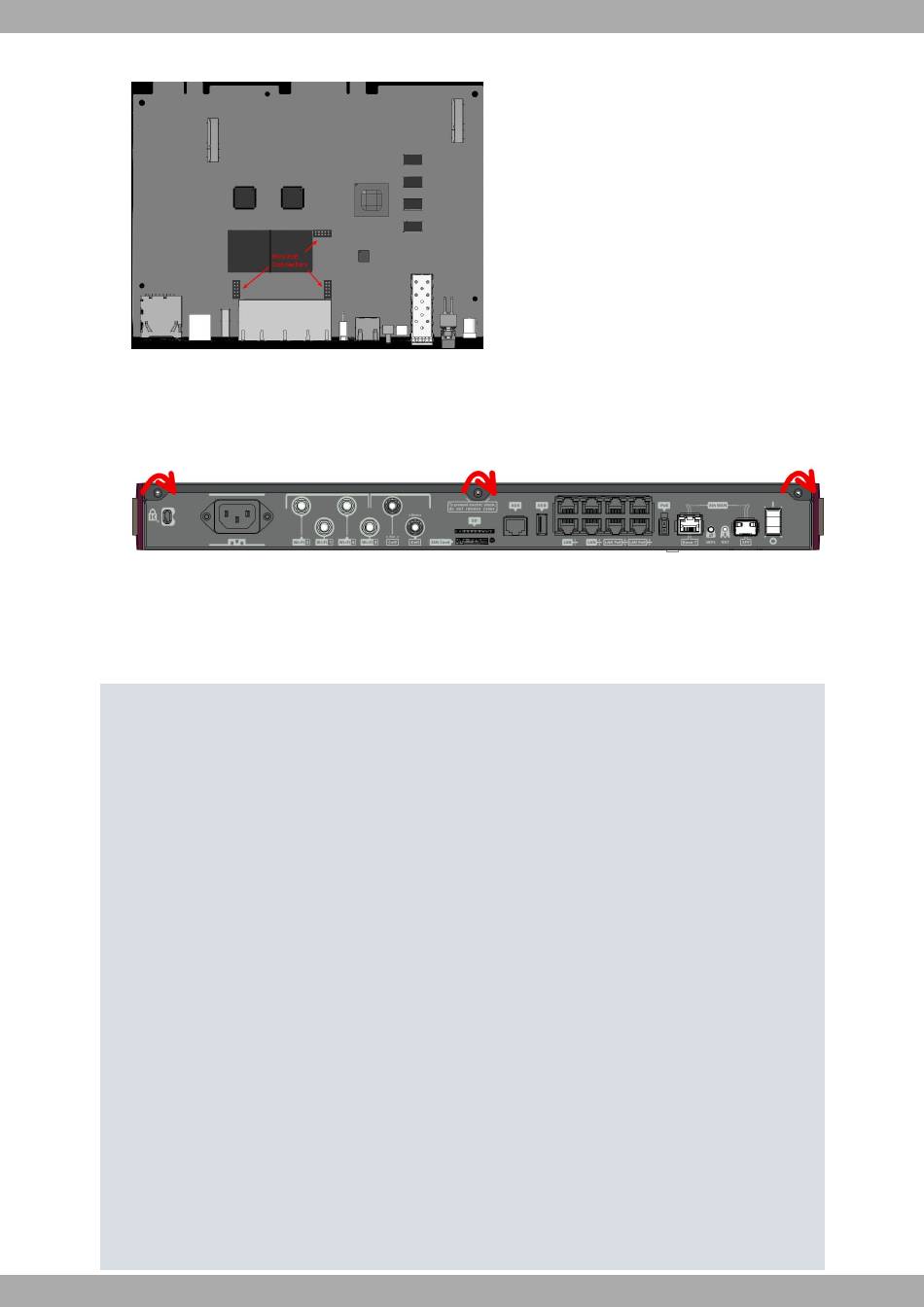

MiniPoE card
Fig. 14:
(6) Place the MiniPoE card so that it matches the three connectors. This operation must be carried out carefully,
without forcing any piece or part of the device. Check that the card is clearly settled over the connectors.
(7) Reposition the top panel flap and screw it into place using the screws.
Rearranging the top panel's flap screws
Fig. 15:
(8) Connect and switch on the device, as described in section
lems, switch off the device and make sure that the above steps have been carried out correctly. If the problem
persists, please contact your usual supplier.
(9) Connect a terminal to the console and check that the device detects the MiniPoE card.
**************************************************
**************************************************
**************************************************
BIOS CODE DUMP..................
BIOS DATA DUMP....
End of BIOS dump
FLASH BIOS CODE VERSION: 01.05
RTC stopped.
System Info:
PCB:0x14E PVR:0x80241021 SVR:0x85480010 T1024
CLKs: PLAT=400 CPU0/1/2/3=1400/1400/1400/1400 DDR(clk)=1584 LBUS=50 PCI0/1/2/3=0/0/0/0
Watchdog:Enabled
MMU Mode:Dynamic
ICache:ON DCache:ON Write-Back L2Cache:ON
Mem Info:
DRAM size: 1024 Megabytes
BANK 0: 1024 Megabytes
FLASH: 32256 KB.
EEPROM: 16384 Bytes.
Devices:
SWITCH(8) 10/100/1000
USB 2
USB 1
NVRAM 128 KB
SECURITY ENGINE(0x0a120500)
POE CARD 0
GIGABIT ETHERNET 1
12
: Location
Jan 13 2017 12:28:31
Connecting on page 11. Should you detect any prob-
L0
Teldat S.A.
Teldat Router Atlas-i70
