3.2 Expansion Slots

The Teldat Atlas-i70 router has two expansion slots. This allows you to increase the features and interfaces by in-
serting different cards or boards.

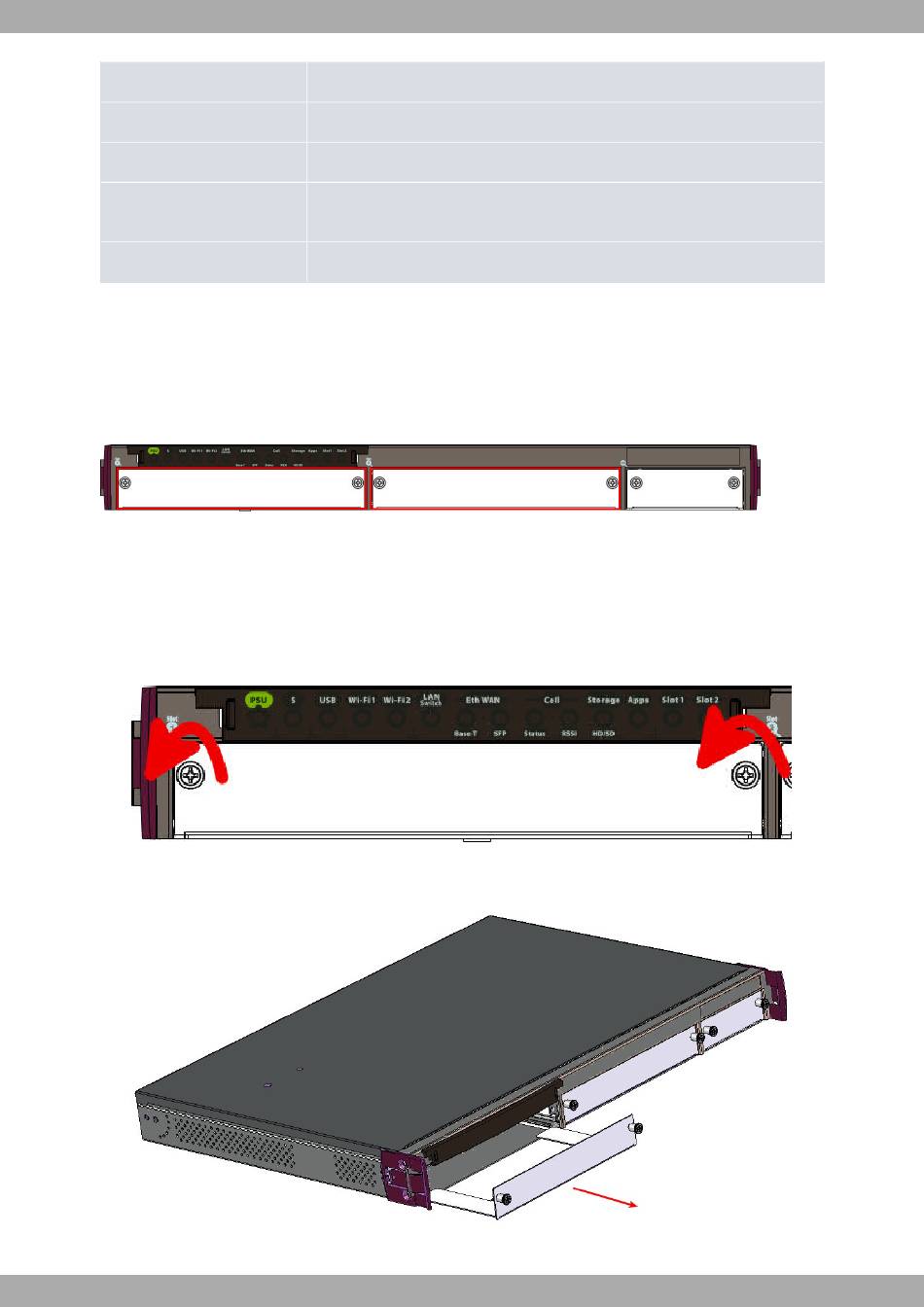

These slots are located on the router's front panel, as shown in the following figure:
Expansion slots
Fig. 4:
To correctly insert cards, please follow these steps:
(1) Switch off the device and remove the data cables as described under section
(2) Remove the device from the workplace and place it in a stable, safe location where it can be easily accessed
and handled.
(3) Unscrew the front panel screws to remove the expansion card tray.
Unscrewing the front panel screws
Fig. 5:
(4) Once unscrewed, pull the tray out of the front panel slot.
Extracting the tray from the front panel
Fig. 6:
Teldat Router Atlas-i70
Eth WAN Base-T. WAN Gigabit Ethernet.
Eth WAN SFP.
WPS (Wireless Protected Setup). Not supported.
RST. Reset button. For further information on how the reset button works, please
see RST Button on page 13
On/Off switch.
3 Components and Power Supply
Disconnecting on page 11.
