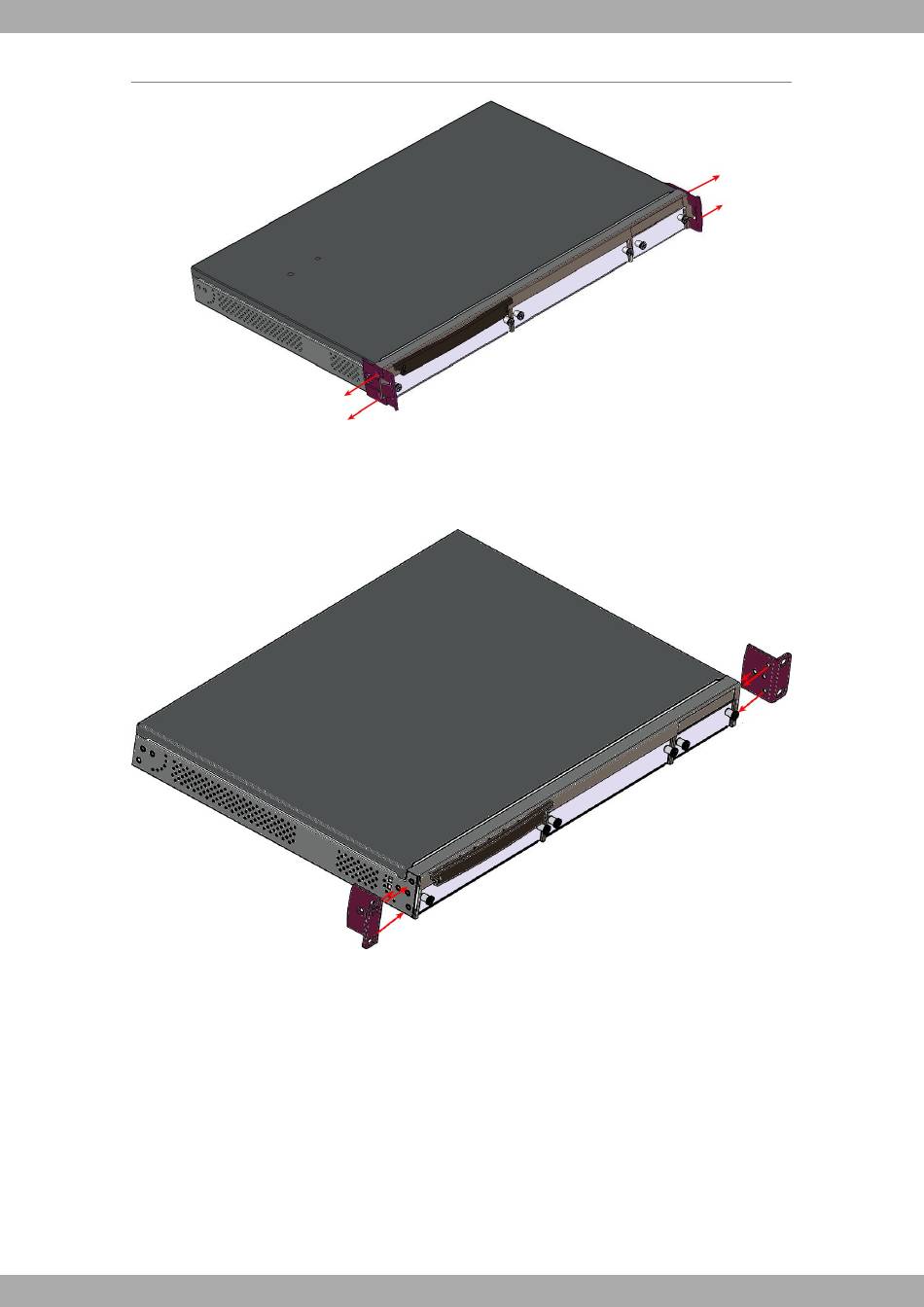

Side tabs have to be removed
Fig. 9:
(2) Both strips are attached to the device through 6 screws, as shown in the following figure:
Rack anchor bolts
Fig. 10:

3.3.1 Standalone

Teldat Atlas-i70 devices can be placed as standalones on a flat, stable surface. The adhesive rubber feet must be
stuck to the underside panel to prevent the router from sliding.
Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and
data cables can reach it.

3.3.2 Wall mounting

The Teldat Atlas-i70 cannot be mounted on the wall.
