3 Components and Power Supply

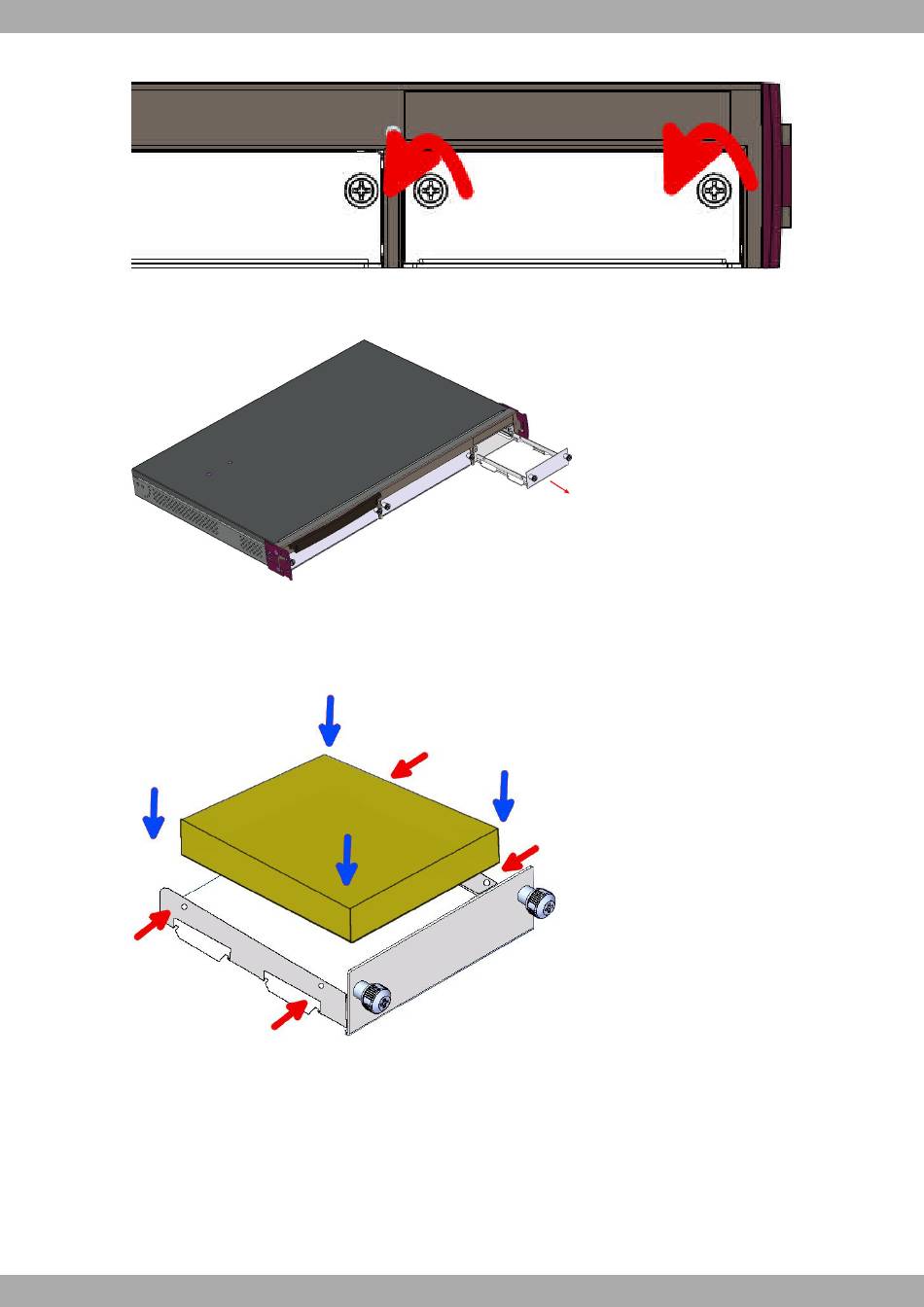

Unscrewing the screws from the front panel tray
Fig. 22:
(4) Once unscrewed, pull out the tray from the front panel slot.
Extracting the tray from the front panel
Fig. 23:
(5) If the tray is attached, skip to the next step. Otherwise, once you have extracted the tray, place the hard disk in
the correct position. Then fix the hard disk using the appropriate 4 screws, taking care not to damage it during
the tightening process (red arrows).
Placing the hard disk
Fig. 24:
(6) Finally, insert the tray into the device once again using the slot guides.
