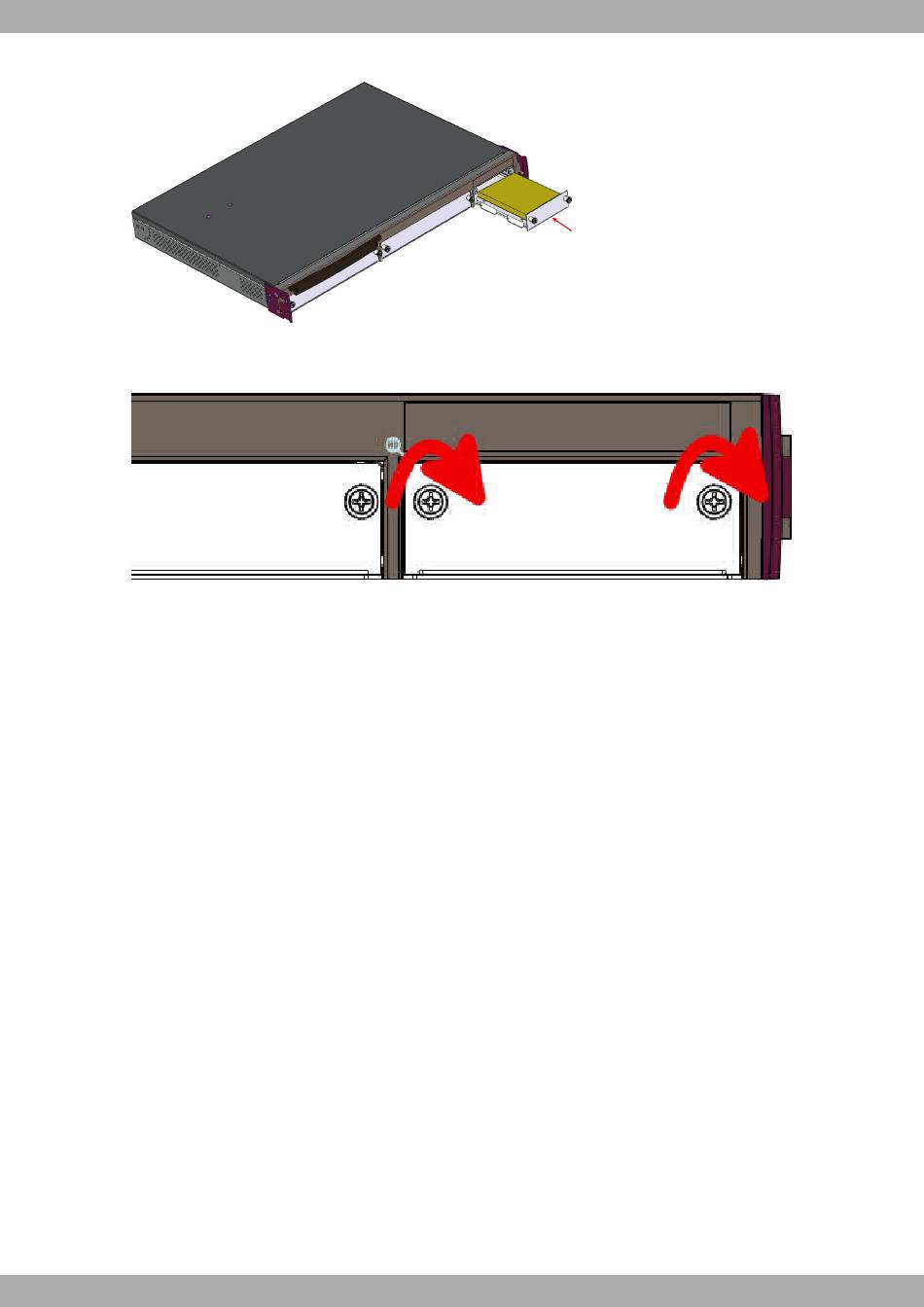

Inserting the hard disk
Fig. 25:
(7) Screw the tray to the device.
Screw the tray to the front panel
Fig. 26:
(8) Connect the equipment as indicated in section 3.5.1.1 "Connecting". Connect the terminal to the console and
check that the device detects the hard disk.

3.8.2 Procedure to install a flash memory expansion SD

To install an SD card, insert it into the SD tray as shown in the following figure:
Teldat Router Atlas-i70
3 Components and Power Supply
17
