1.1.1. Configuration and Related Signals

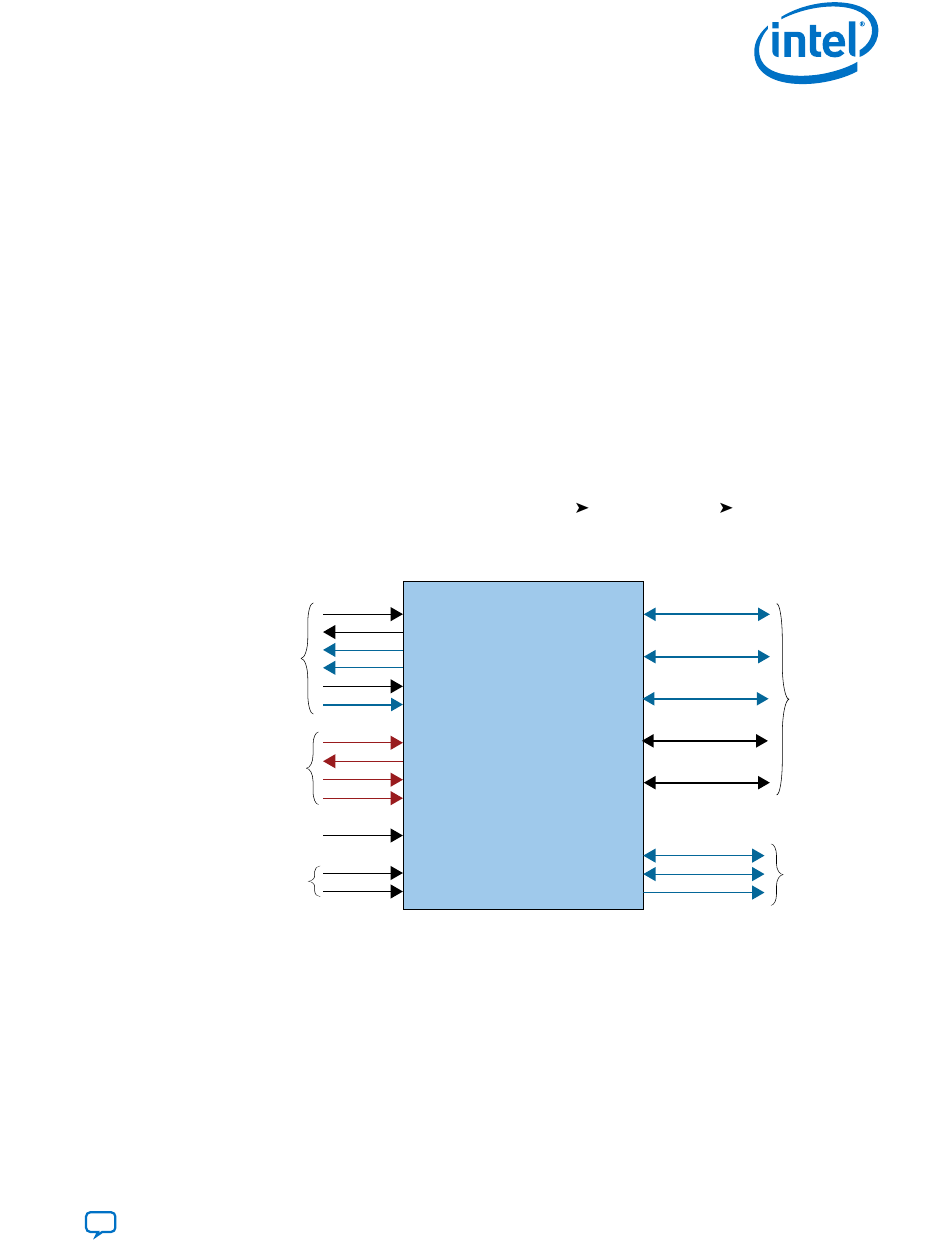

The following figure shows the configuration interfaces and configuration-related
device functions. Pins shown in dark blue use dedicated SDM I/Os. Pins shown in black
use general purpose I/Os (GPIOs). Pins shown in red are dedicated JTAG I/Os. You
specify SDM I/O pin functions using the Device
Options dialog box in the Intel Quartus Prime software.
Figure 1. Intel Stratix 10 Configuration Interfaces
Configuration
Control
JTAG
Remote
System
Update (RSU)
Security
This user guide discusses most of the interfaces shown in the figure. Refer to the
separate Intel Stratix 10 Configuration via Protocol (CvP) Implementation User Guide
and Intel Stratix 10 Power Management User Guide for more information about those
features.
Related Information
• SDM Pin Mapping
• Intel Stratix 10 Configuration via Protocol (CvP) Implementation User Guide
• Intel Stratix 10 Power Management User Guide
