Chapter 2: Jumpers and Connectors

Internal Connectors

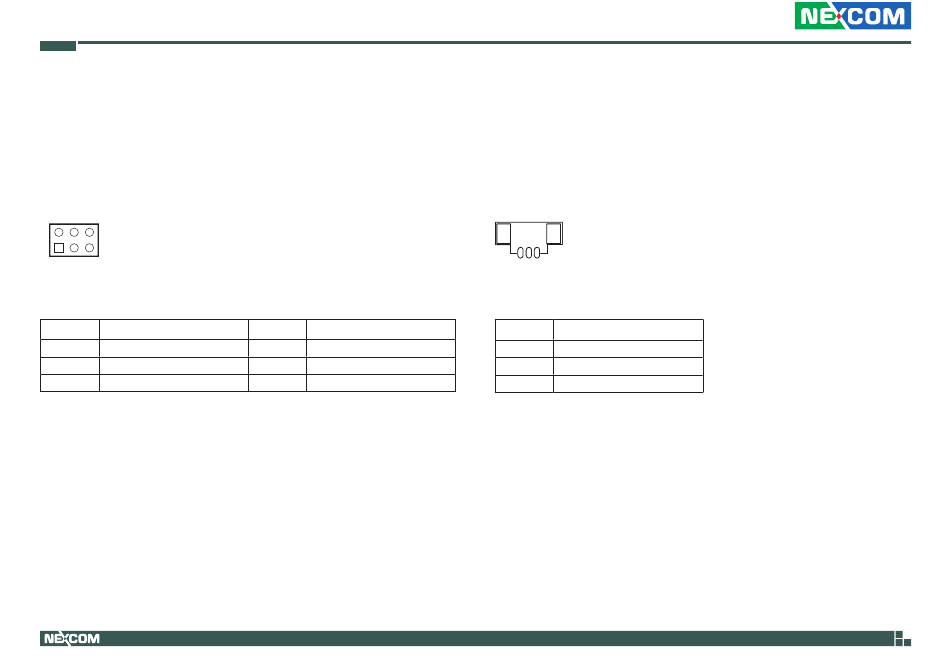

BIOS Flash Pin Header

Connector type: 2x3 6-pin header, 2.0mm pitch
Connector location: JFW1
2 6
1 5
Pin Definition
1 VSPI
3 BIOS_SPI_CS#0
5 BIOS_SPI_SO
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 BIOS_SPI_CLK
6 BIOS_SPI_SI

Power Button Connector

Connector type: 1x3 3-pin header, 1.25mm pitch
Connector location: J6
3 1
Pin Definition
1 GND
2 EC_PWRBT#
3 S3_OUT
