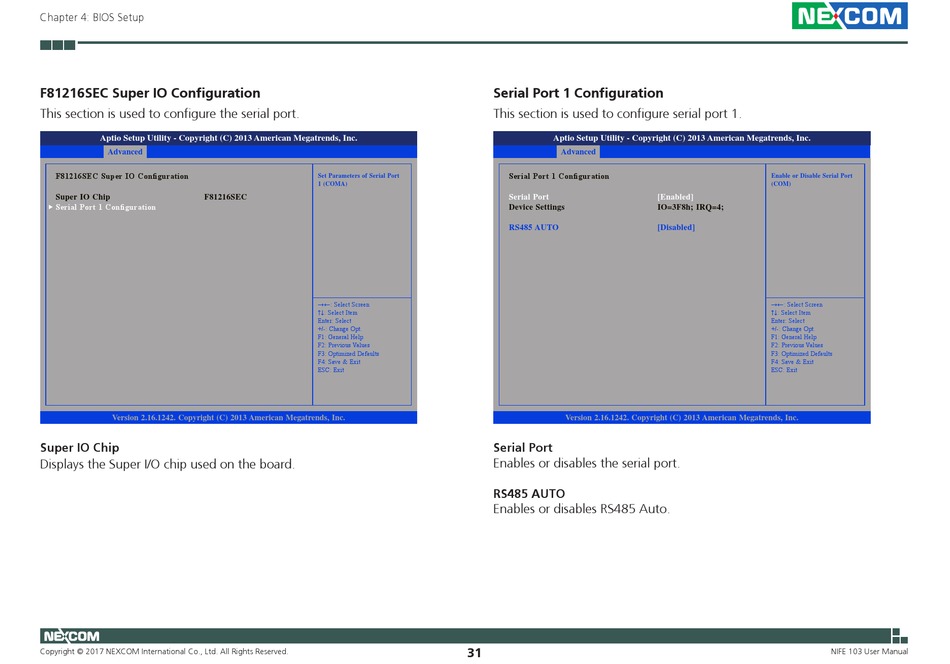

Chapter 4: BIOS Setup
F81216SEC Super IO Configuration
This section is used to configure the serial port.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
F81216SEC Super IO Configuration
Super IO Chip F81216SEC
Serial Port 1 Configuration

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
RS485 AUTO
Enables or disables RS485 Auto.
31
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4;
RS485 AUTO [Disabled]
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
