Chapter 2: Jumpers and Connectors

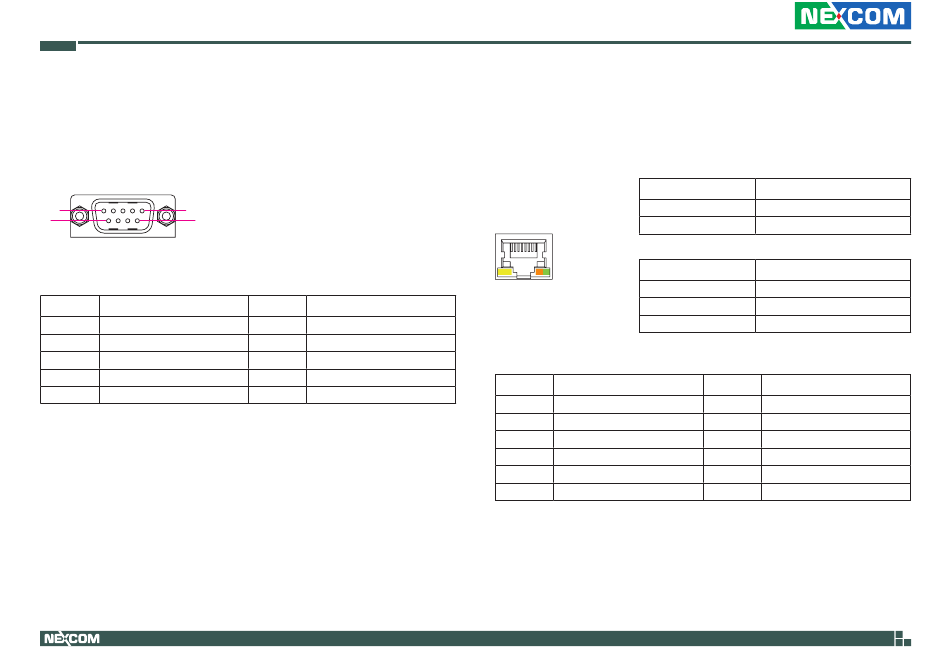

COM1 Connector

Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM1
1 5
6 9
Pin Definition
1 RS485_D-_R
3 COM1_TXD
5 GND
7 COM1_RTS#
9 NC
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 COM1_RXD
4 NC
6 RS485_D+_R
8 COM1_CTS#

LAN1 Port

Connector type: RJ45 port with LEDs
Connector location: LAN1
1 8
ACT LINK
Pin Definition
1 LAN2TXDP0
3 LAN2TXDP1
5 LAN2TXDN2
7 LAN2TXDP3
9 LAN2_LED_ACT#
11 LAN2_LED_LINK1G#
14
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 LAN2TXDN0
4 LAN2TXDP2
6 LAN2TXDN1
8 LAN2TXDN3
10 LAN2_ACTPW
12 LAN2_LINK
