Chapter 2: Jumpers and Connectors

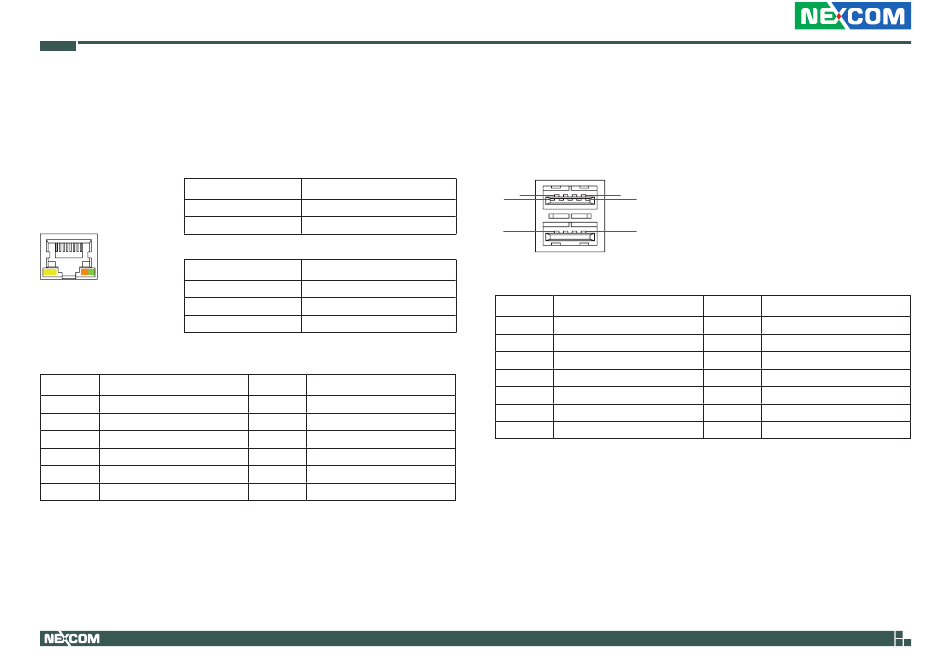

LAN2 Port

Connector type: RJ45 port with LEDs
Connector location: LAN2
Flashing Yellow
1 8
ACT LINK
Steady Green
Steady Orange
Pin Definition
1 LANTXDP0
3 LANTXDP1
5 LANTXDN2
7 LANTXDP3
9 LAN_LED_ACT#
11 LAN_LED_LINK1G#
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Data activity
Off No activity
Link Status
1G network link
100Mbps network link
Off 10Mbps or no link
Pin Definition
2 LANTXDN0
4 LANTXDP2
6 LANTXDN1
8 LANTXDN3
10 LAN1_ACTPW
12 LAN1_LINK

USB 3.0 and USB 2.0 Port

Connector type: USB 3.0 and USB 2.0 port
Connector location: CN2
8
5
13
9
4 1
Pin Definition
1 5VSB
3 SOC_USB0P
5 USB3_RX0_N_C
7 GND
9 USB3_TX0_P_C
11 SOC_USB2N
13 GND
15
Pin Definition
2 SOC_USB0N
4 GND
6 USB3_RX0_P_C
8 USB3_TX0_N_C
10 5VSB
12 SOC_USB2P
NIFE 103 User Manual
