Chapter 2: Jumpers and Connectors

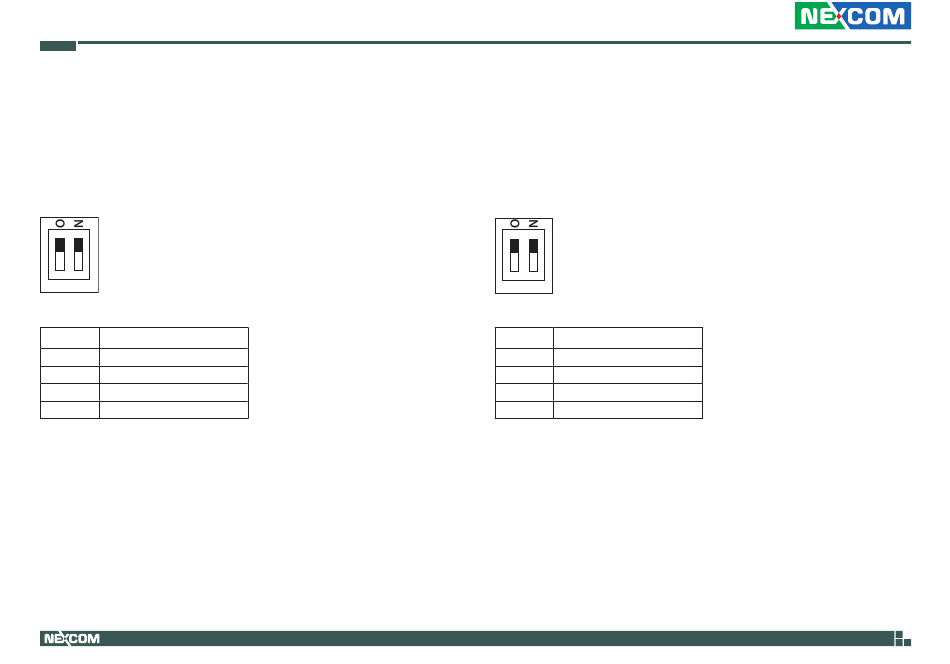

DIP Switches

AT/ATX Switch

Connector type: 2-pin On/Off DIP switch
Connector location: SW3
4 3
1 2
Pin Function
1 AT_ATX_SELECT
2 NC
3 *GND
4 *GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.

Clear CMOS Select

Connector type: 2-pin On/Off DIP switch
Connector location: SW2
4 3
1 2
Pin Function
1 RTC_TEST#
2 SRTC_RST#
3 GND
4 GND
