Chapter 3: System Setup

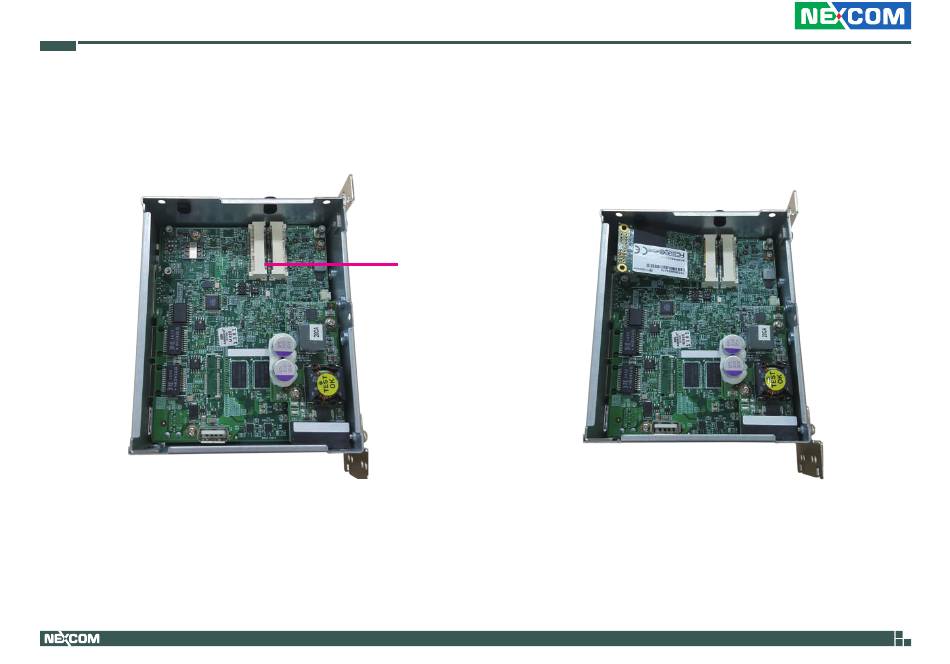

Installing a mSATA or 3G Module
1. Locate the mini-PCIe slot for 3G or mSATA modules. The SIM card is
located in the middle of the mini-PCIe slot.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
2. Insert the mSATA module into the mini-PCIe slot at 45 degree angle
until the gold-plated connector on the edge of the module completely
disappears into the slot.
Mini-PCIe
slot
21
NIFE 103 User Manual
