Chapter 2: Jumpers and Connectors

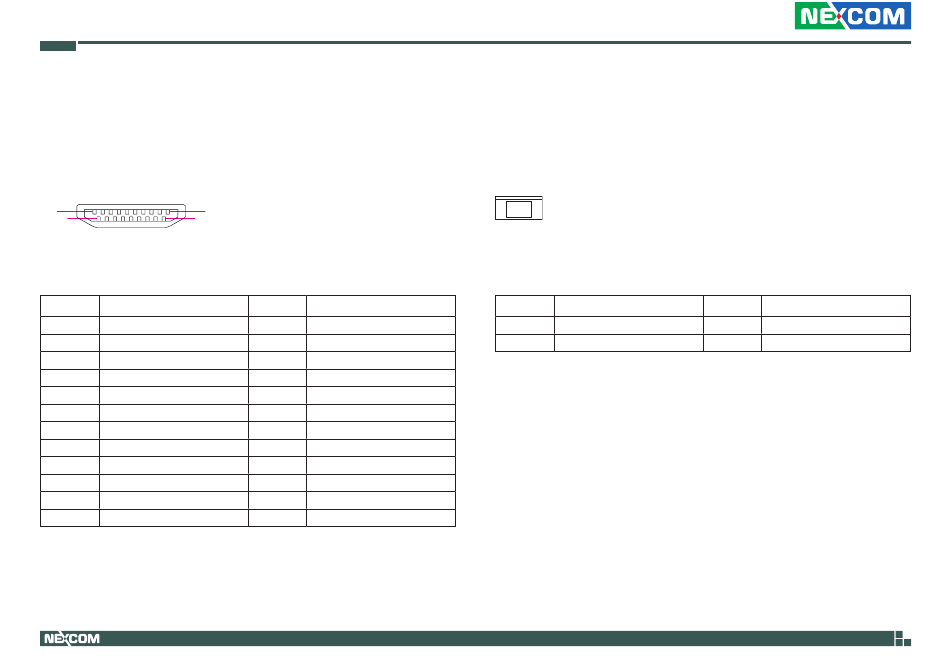

Micro HDMI

Connector type: Micro HDMI port
Connector location: CN8
19 1
18 2
Pin Definition
1 HDMI_HPD_R
3 HDMI_DATA2_P_C
5 HDMI_DATA2_N_C
7 GND
9 HDMI_DATA0_P_C
11 HDMI_DATA0_N_C
13 GND
15 NC
17 HDMI_CTRL_CLK
19 HDMI_PWR
MH1 CHASSIS_DP_GND
MH3 CHASSIS_DP_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 GND
6 HDMI_DATA1_P_C
8 HDMI_DATA1_N_C
10 GND
12 HDMI_CLK_P_C
14 HDMI_CLK_N_C
16 GND
18 HDMI_CTRL_DAT
MH2 CHASSIS_DP_GND
MH4 CHASSIS_DP_GND

Reset Button

Connector location: SW1
Pin Definition
1 PM_RESET#_J
3 GND
16
Pin Definition
2 PM_RESET#_J
4 GND
