INSTALLATION
6.7

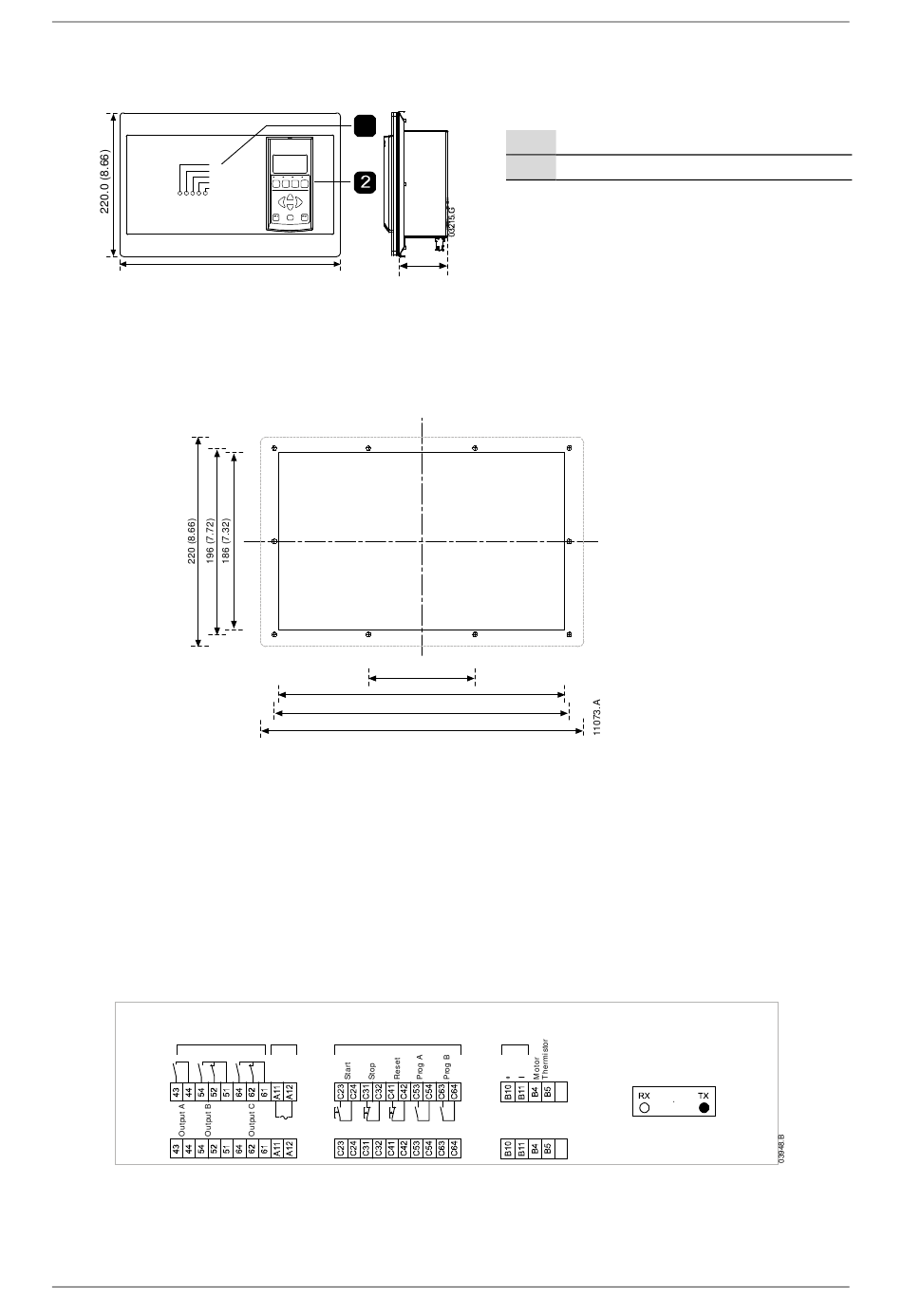

Controller Mounting

The controller is suitable for use with all MVE soft starters.
ST ART
ST OP
RESET
INPUTA
INPUTB
340.0
(13.39)
Dimensions are shown in mm (inch).
Weight: 2.1 kg (4.63 lb)
Mounting Instructions - Controller
The controller is secured into place using ten M4 nuts, affixed to the studs on the back of the controller.
To mount the controller, make a 186 mm x 300 mm cutout at the desired mounting location. Ensure adequate clearance (>85 mm)
is available behind the mounting location. If you intend to use a communication module, allow for a minimum clearance of 120 mm
behind the mounting panel.
Drill 5 mm holes to accommodate the studs on the controller. Fit the MVE Controller through the cutout and tighten the nuts onto
the studs.
6.8

Terminations on the Controller

Terminal Block (controller)
Terminations on the controller use plug-in terminals. Unplug the terminal blocks, complete the wiring, then re-plug the terminal
blocks into the controller.
Relay Outputs
18
| MVE User Manual (710-17074-00G)
1
Ready
Run
Tr ip
Local
L CL
S ta r t
St o p
R e se t
RM T
M e nu
Exit
St or e
Alt
L og s
To o ls
80
(3.14)
112 (4.41)
300 (11.81)
310 (12.20)
340 (13.39)
Control
Supply
Control Inputs
24 VAC/DC
1
Control input LEDs
2
Keypad
Analog
Output
Fibre Optic Connection
To Power Assembly
