INSTALLATION
6.3

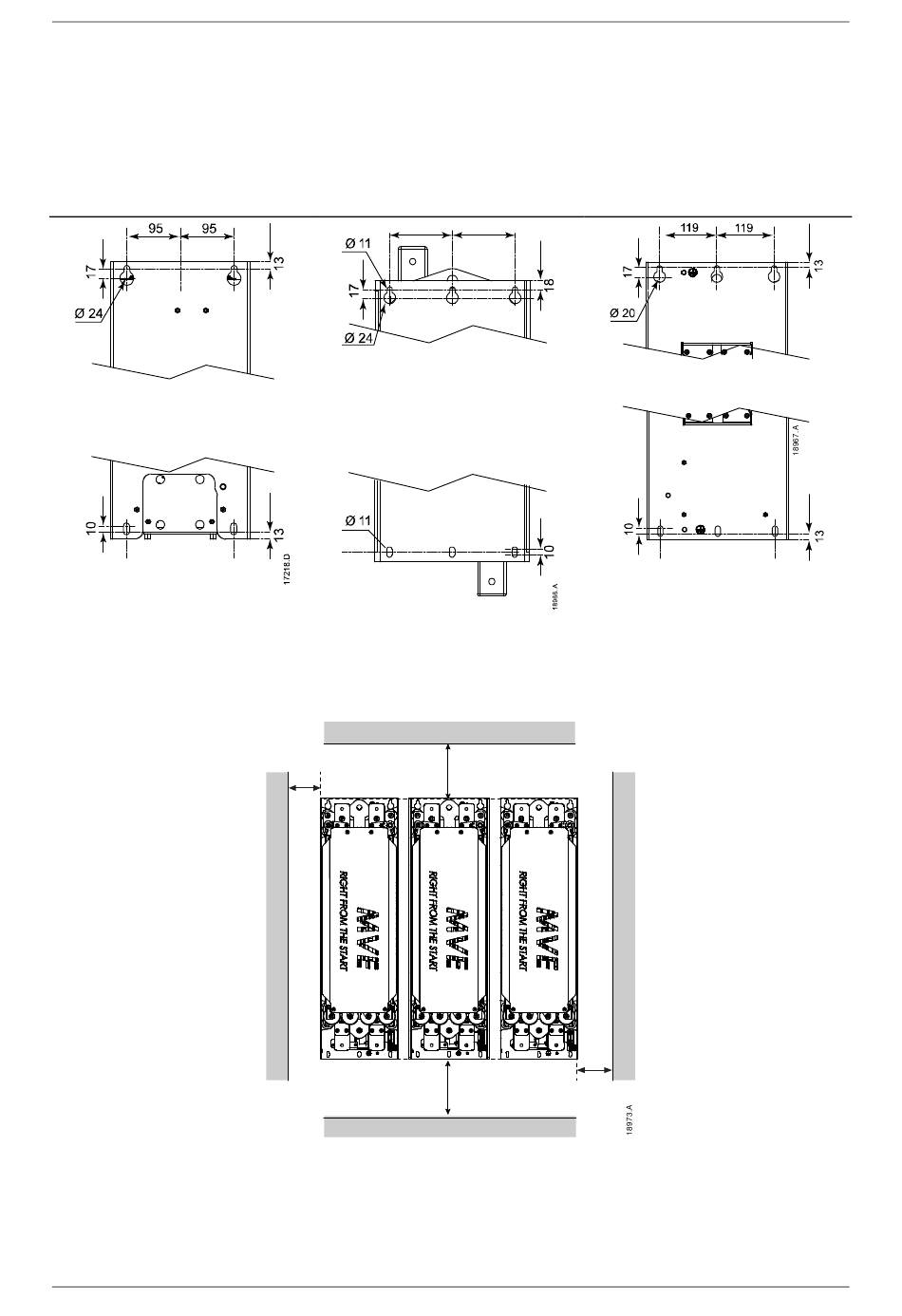

Mounting Points

Each phase arm is mounted in place using M10 bolts. The bolts must be grade 8.8 or better.
Fix the top bolts in place in the enclosure, then position the phase arm over the bolts. Secure the phase arm in position with the
bottom bolts.
V02~V06
0070 A ~ 0540 A
MVE-0600~1700, V11~V13: For typical values, please consult AuCom.
6.4

Clearance Requirements

The phase arms are rated IP00 and must be installed inside an enclosure.
14
| MVE User Manual (710-17074-00G)
V02~V06
0600 A ~ 1700 A
130
120
120
(4.7)
(4.7)
120
(4.7)
130
120
(4.7)
V11~V13
0070 A ~ 0540 A
