INSTALLATION: INSTALLATION
4.2

Mounting Instructions - MVS Controller

710-03261-00D

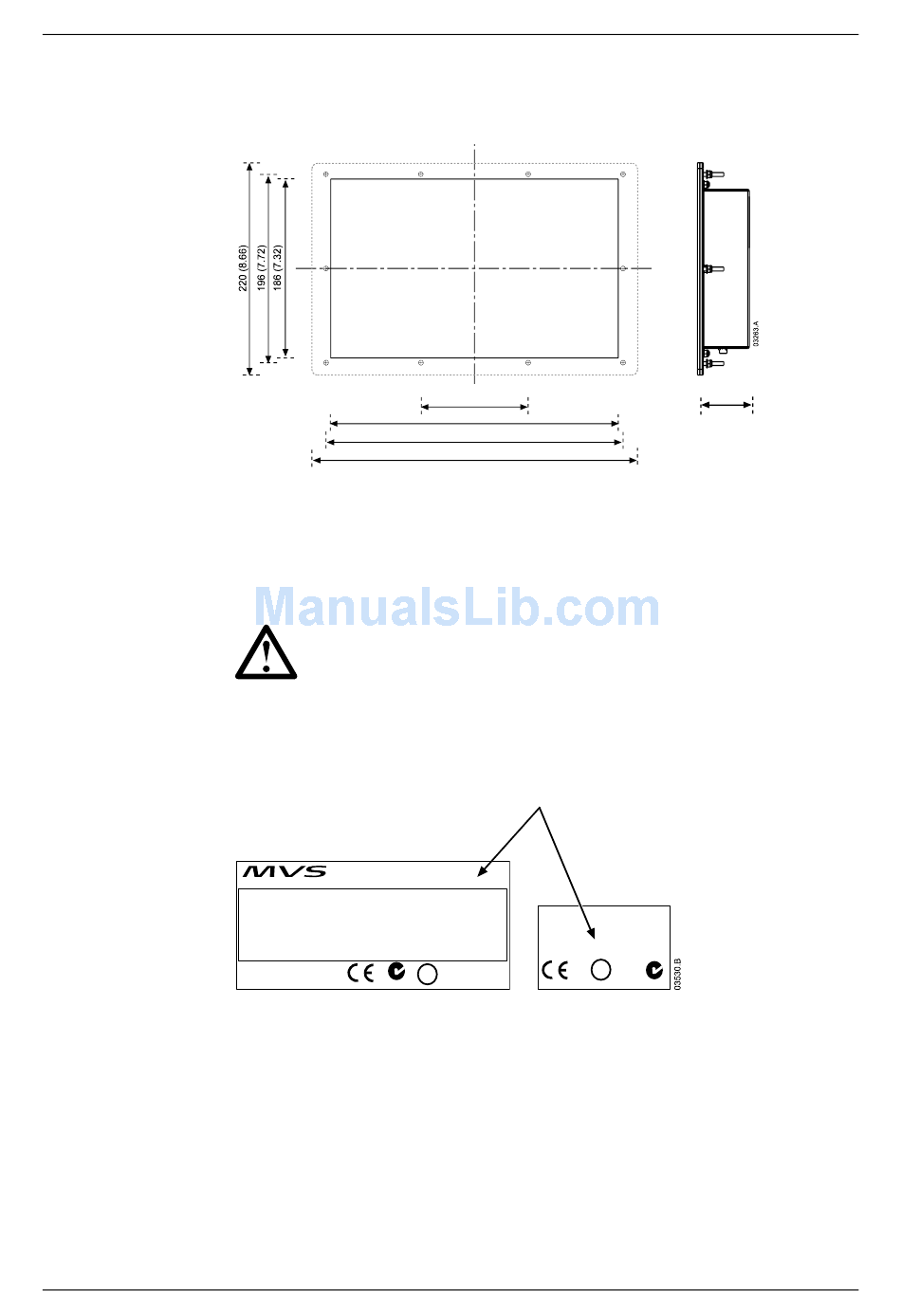

The MVS Controller can be secured in place with ten M4 nuts, affixed to the studs
on the back of the controller.
To mount the controller, make a 186 mm x 300 mm cutout at the desired mounting
location. Ensure adequate clearance (54 mm) is available behind the mounting
location.
Drill 5 mm holes to accommodate the studs on the controller. Fit the controller
through the cutout and tighten the nuts onto the studs.
NOTE
Before installation, always ensure that you are using the correct
controller for the soft starter. This can be checked by comparing
the serial number on the back of the controller with the serial
number on the front of the power assembly.
Serial number
MVS 0321-V04-C12
O/C: MVS 0321-411 S/N: 989898-0
S e r i e s
INPUT RATING: 4160 VAC 50/60 Hz
OUTPUT RATING: 321 A : AC53b 4-20 1780
AUXILIARY CONTACTS: 10A, 30 VDC resistive / 10 A, 250 VAC 360 VA
WITHSTAND CURRENT: 48 kA
WITHSTAND VOLTAGE: 45000 VAC Cat III
AUXILIARY CONTACTS: #24-#14 AWG, 0.2-2.5 mm2 (0.5 NM, 4.4 lb-in)
AUCOM
Z79
112 (4.41)
300 (11.81)
310 (12.20)
340 (13.39)
Serial Number
MAIN CONTROL MODULE
MVS-0321-V04-C12
S/N: 989898-0
IND. CONT. EQ.
U L
32 AN
C US
®
IND. CONT. EQ. 32AN
12
54.0 (2.13)
U L
C US
®
Z79
MVS Series
