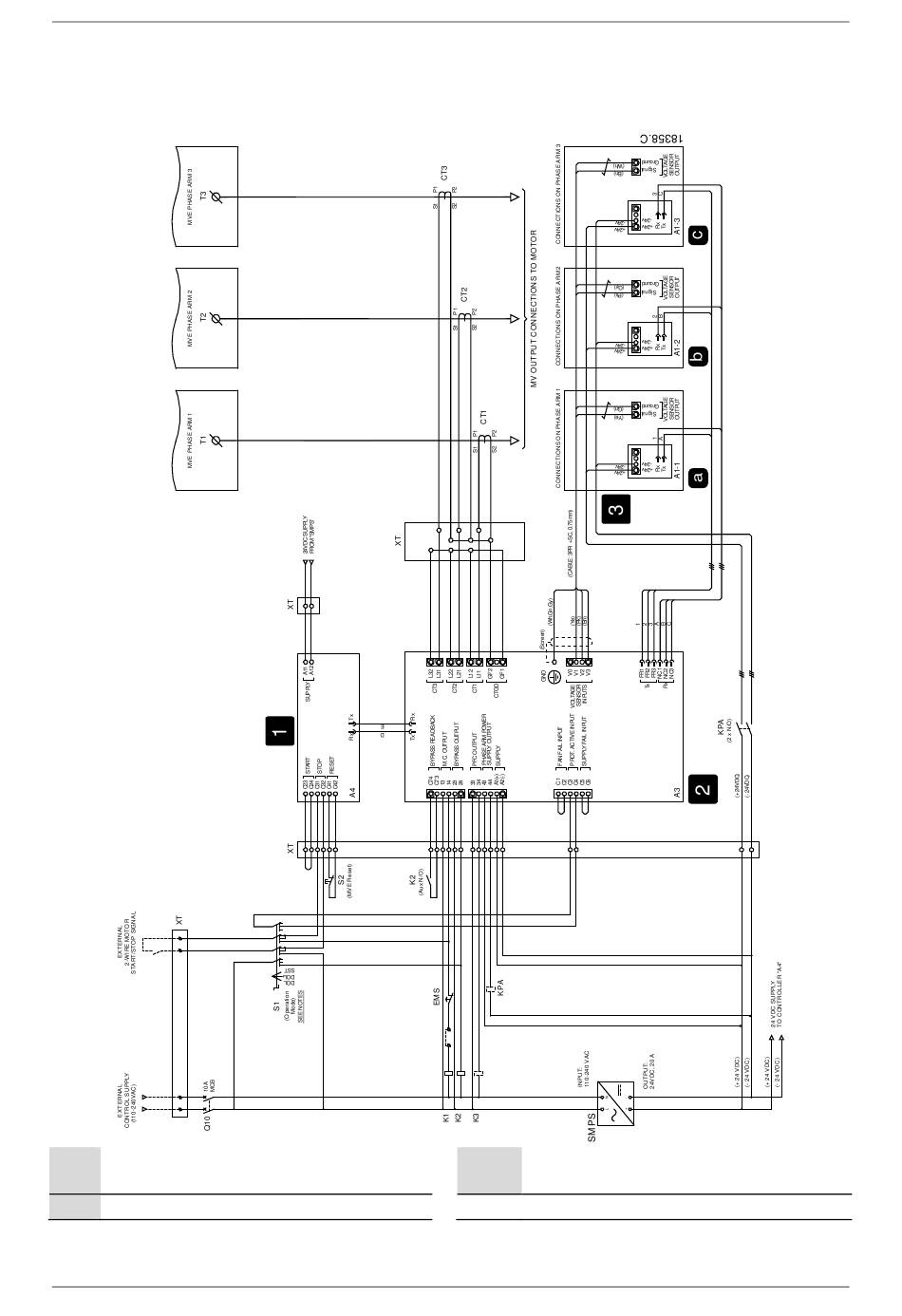

6.14 Internal Panel Wiring
Internal connection wiring diagram. This information is intended for panel builders when integrating and wiring the MVE into a
panel.
1
Controller (A4)
2
Power interface board (A3)
3
Gate drive adapter PCB and voltage sensing
connectors
a ~ c
Phase arm 1 ˜ Phase arm 3 (A1-1 ~ A1-3)
MVE User Manual (710-17074-00G) |
INSTALLATION
27
