vacon • 8
3. PROFINET IO
3.1 Installation in VACON
1

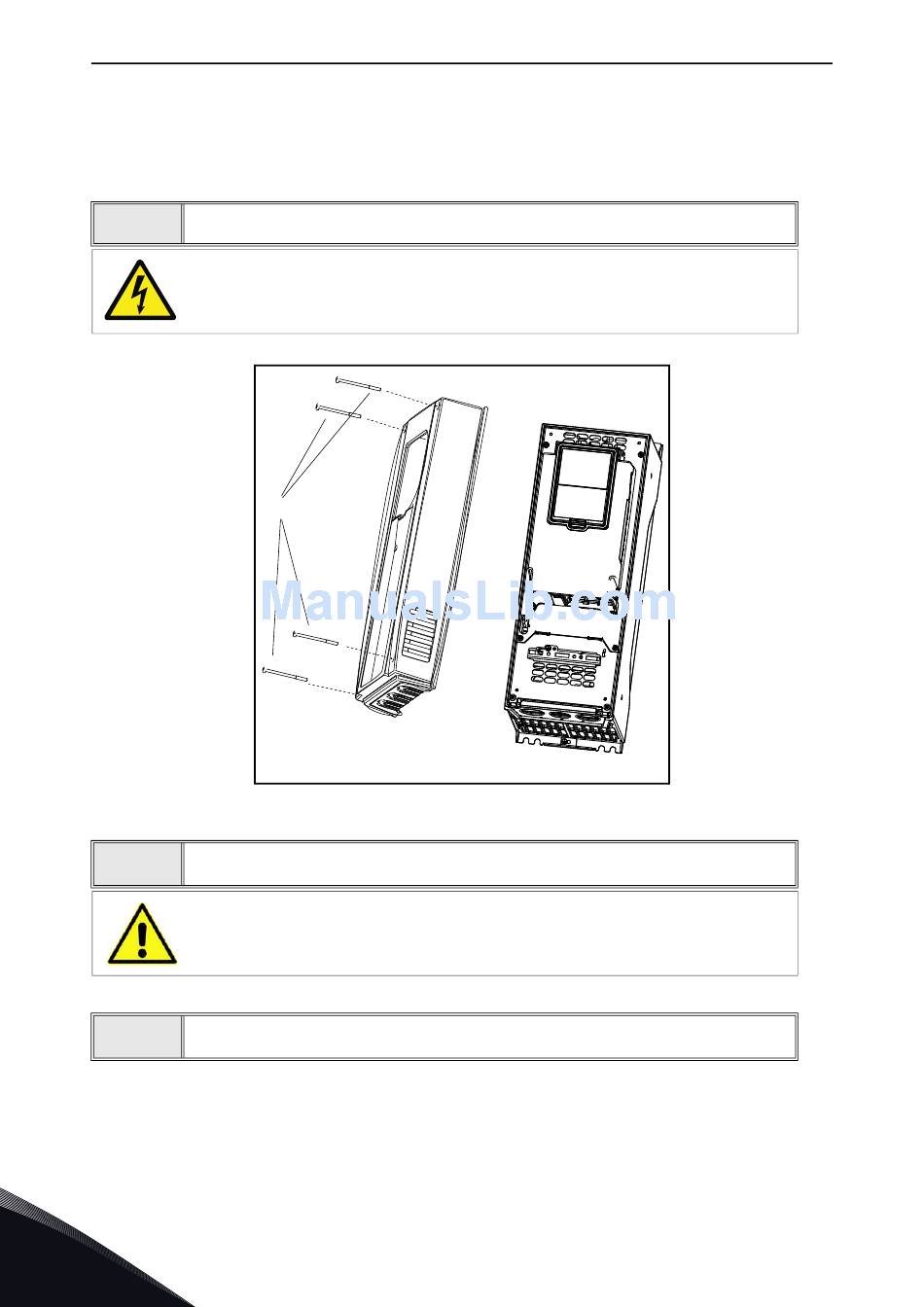

Open the cover of the AC drive.
The relay outputs and other I/O-terminals may have a dangerous control voltage
present even when the AC drive is disconnected from mains.
9000.emf
Locate the components that you will need on the AC drive to connect and run the
2
Ethernet cables.
Be sure not to plug the Ethernet cable to the terminal under the keypad! This can
harm your personal computer.
13006.emf
Connect the Ethernet cable to its terminal and run the cable through the conduit
3
as shown in Figure 2.
3
INSTALLATION
®
100
M4x55
Figure 1.
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

PROFINET IO installation

9174.emf
