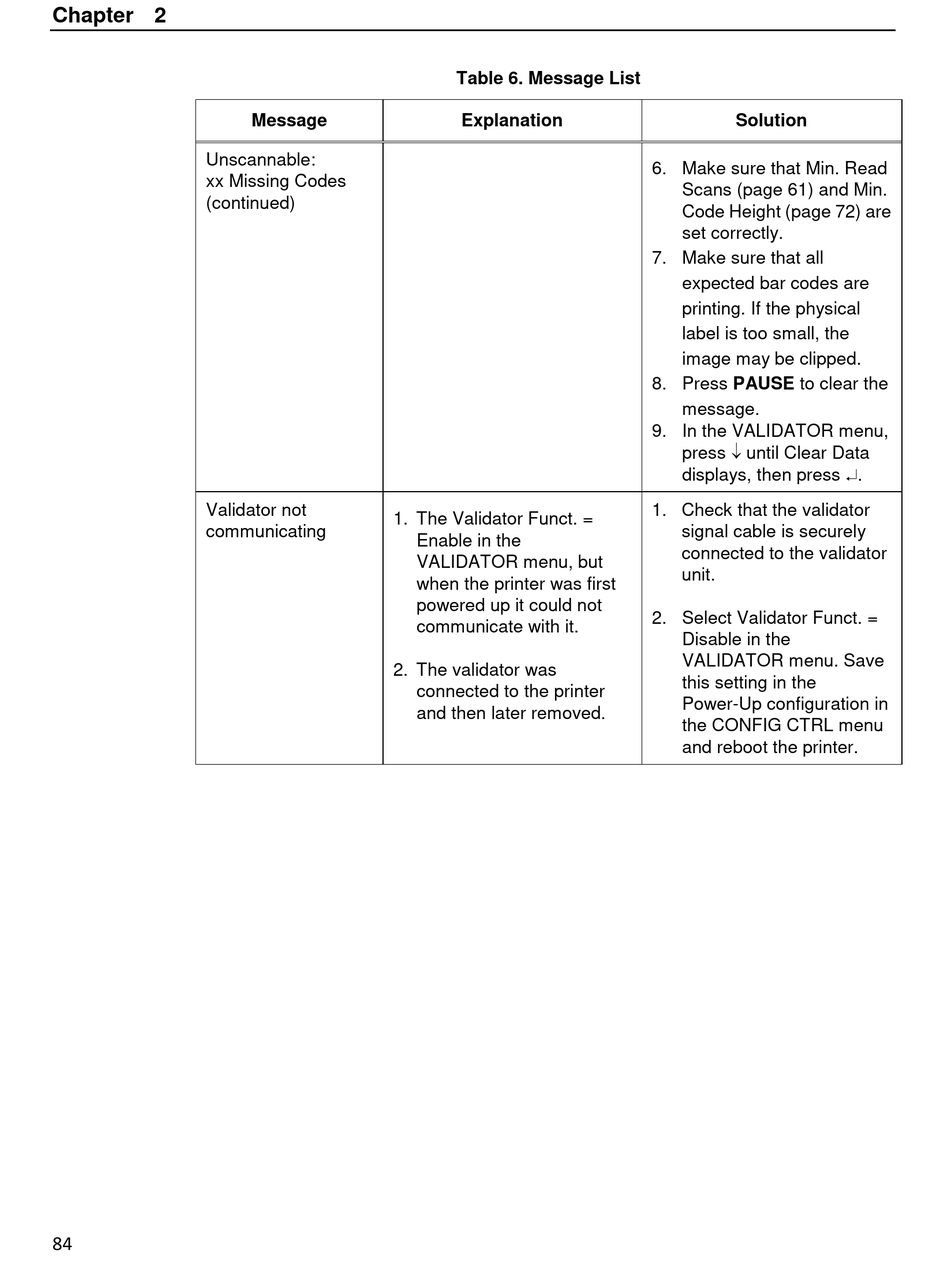

Printronix SL5000r User Manual page 84

Chapter 2
Unscannable:
xx Missing Codes
(continued)
Validator not
communicating
84
Message
1. The Validator Funct. =
Enable in the
VALIDATOR menu, but
when the printer was first
powered up it could not
communicate with it.
2. The validator was
connected to the printer
and then later removed.
Table 6. Message List
Explanation Solution
6. Make sure that Min. Read
Scans (page 61) and Min.
Code Height (page 72) are
set correctly.
7. Make sure that all
expected bar codes are
printing. If the physical
label is too small, the
image may be clipped.
8. Press PAUSE to clear the
message.
9. In the VALIDATOR menu,
press until Clear Data
displays, then press .
1. Check that the validator
signal cable is securely
connected to the validator
unit.
2. Select Validator Funct. =
Disable in the
VALIDATOR menu. Save
this setting in the
Power-Up configuration in
the CONFIG CTRL menu
and reboot the printer.
