Printronix SL5000r User Manual page 31

Power/Data Cable

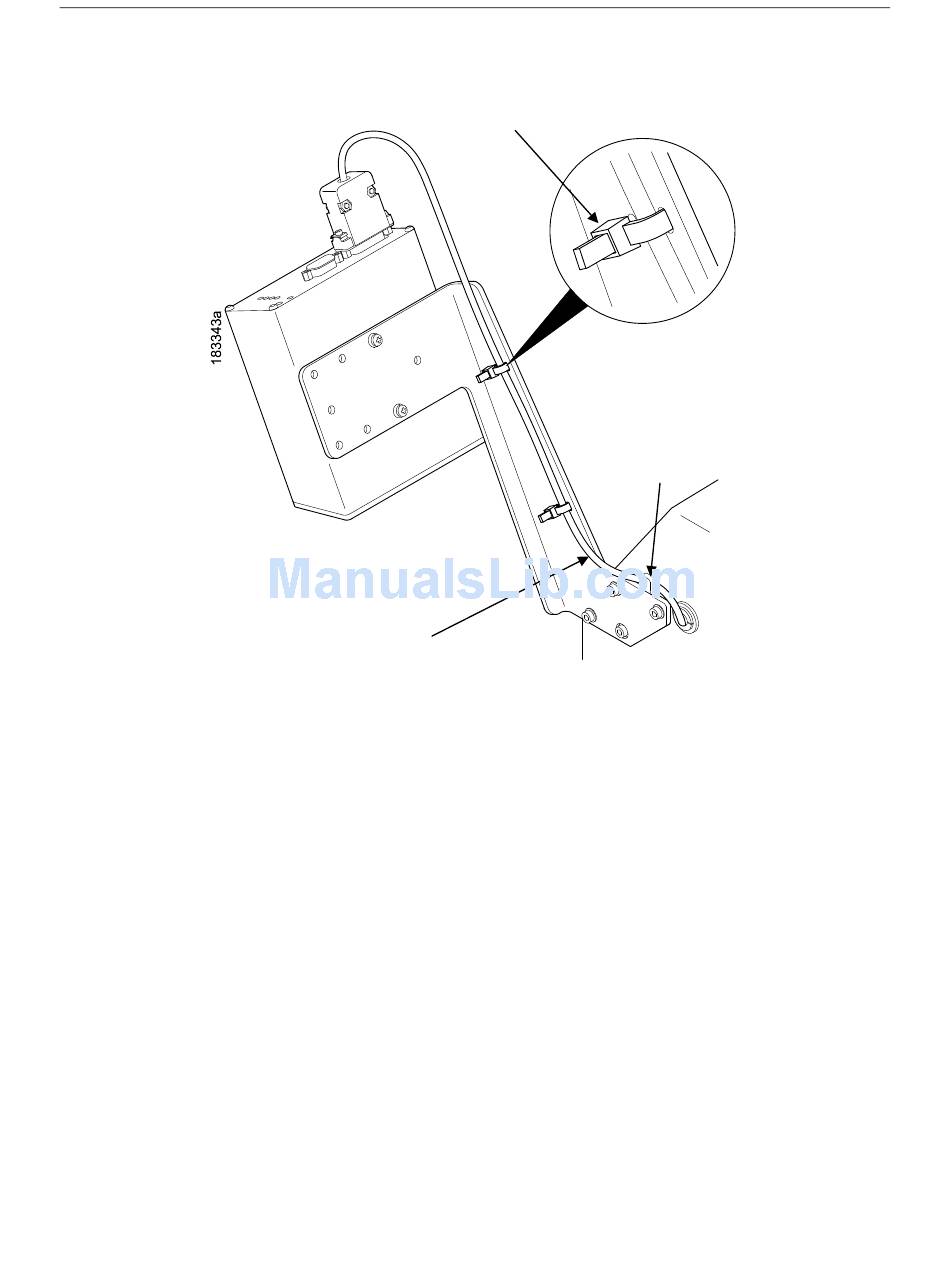

Figure 16. Securing the Power/Data Cable
4. Route the tie wrap back through the second upper slot and underneath the
power/data cable and then through the tie wrap head, as shown in Detail A of Figure
16.
5. Pull the tie wrap just enough to hold the cable in place, but do not over tighten it.
6. Repeat step 3 through step 5 using the lower pair of slots.
7. Route the power/data cable behind the bracket tab as shown in Figure 16.
NOTE: If necessary, loosen the bracket mounting screws enough to slip the
power/data cable behind the bracket tab, then retighten the bracket mounting
screws.
8. Gently pull the power/data cable to minimize the slack along and behind the
bracket. Push any excess slack through the grommet.
9. Once the power/data cable is properly positioned, pull the tie wraps snug against
the cable and bracket and cut off the excess.
Tie Wrap Head
Bracket Tab
