P10 Connector
Plastic Plug
CAUTION To prevent electrostatic damage to electronic components, always wear a
properly grounded static wrist strap when you handle circuit boards.
5. Put on a static wrist strap and ground it to an unpainted part of the printer frame.
Touch the frame with the hand wearing the wrist strap.
6. Raise the media cover and remove the plastic plug from the frame opening.
7. Gently press the small wires of the P10 connector end of the power/data cable
against the connector and route the connector through the frame opening. (Figure
4.)

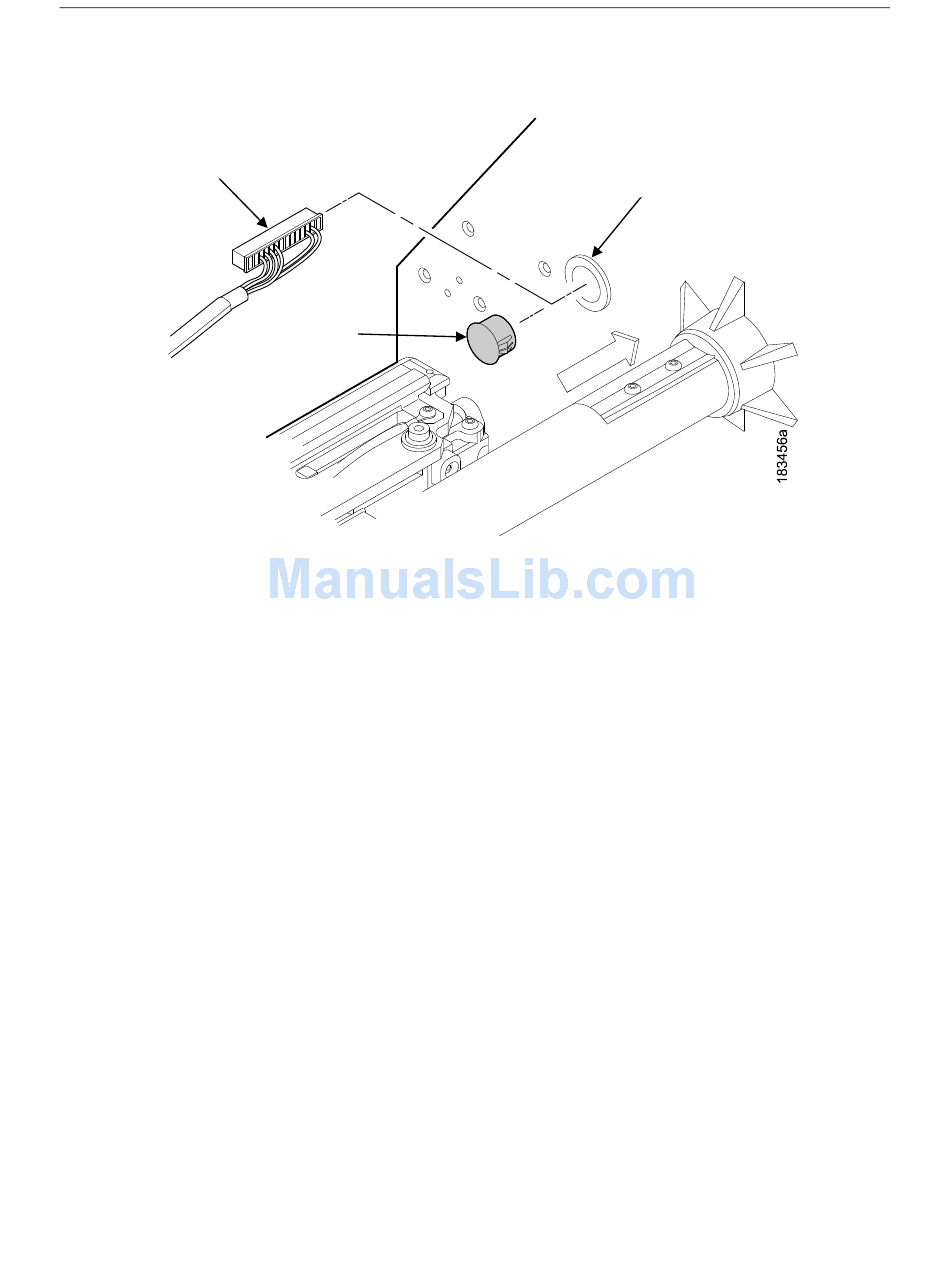

Figure 4. Routing the Power/Data Cable
Frame Opening
