M4x10mm

Screw (4)

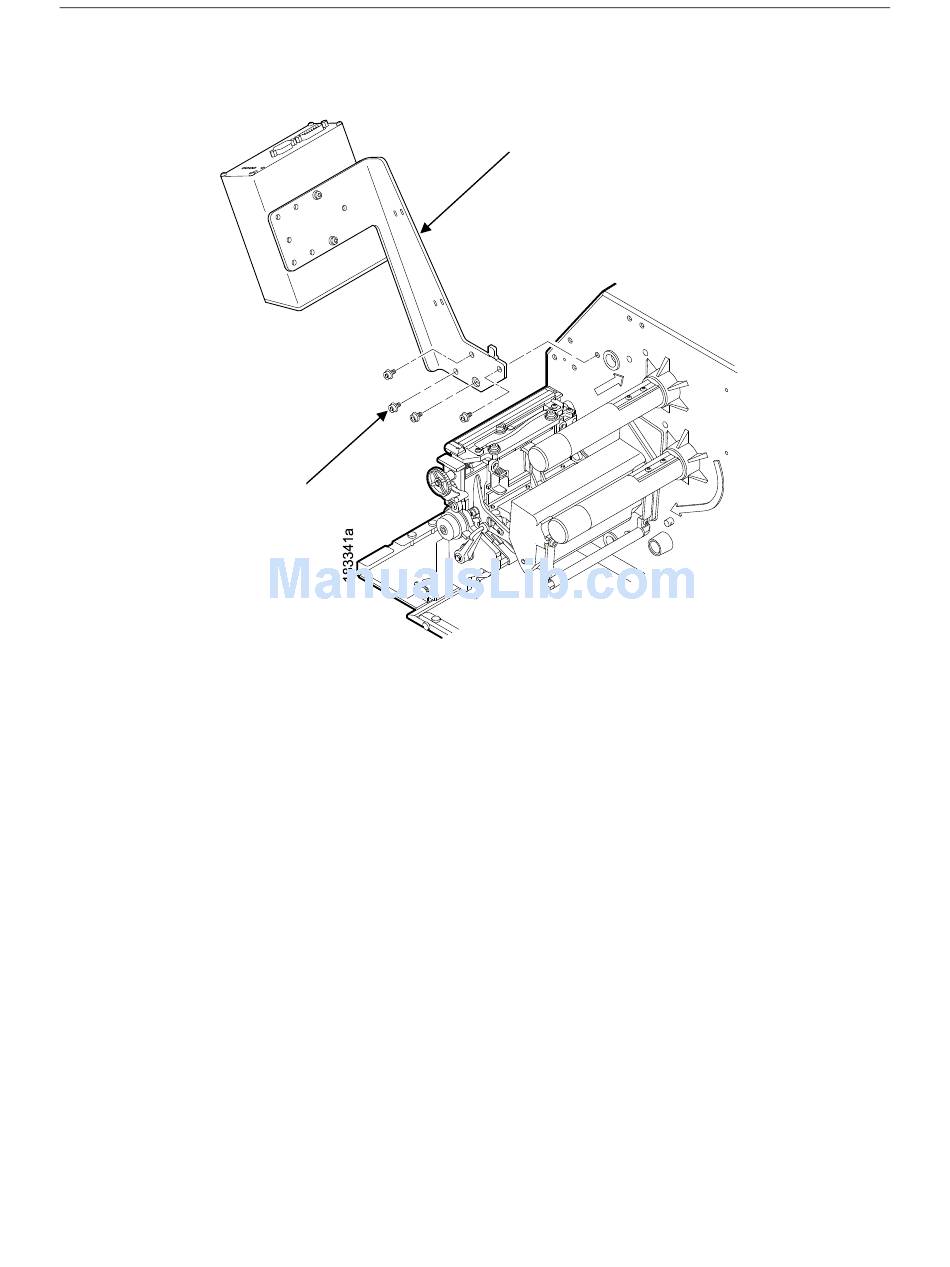

Figure 14. Attaching the Validator/Bracket Unit to the Printer

3. Face the front of the printer while installing the validator/ bracket unit.

4. Using four M4x10mm screws, attach the validator/bracket unit to the printer frame

as shown in Figure 14.

5. Tighten the four screws finger tight. You will adjust the

validator/bracket unit in a later step using the 3mm hex key (provided).

Validator/Bracket Unit
