Chapter 1

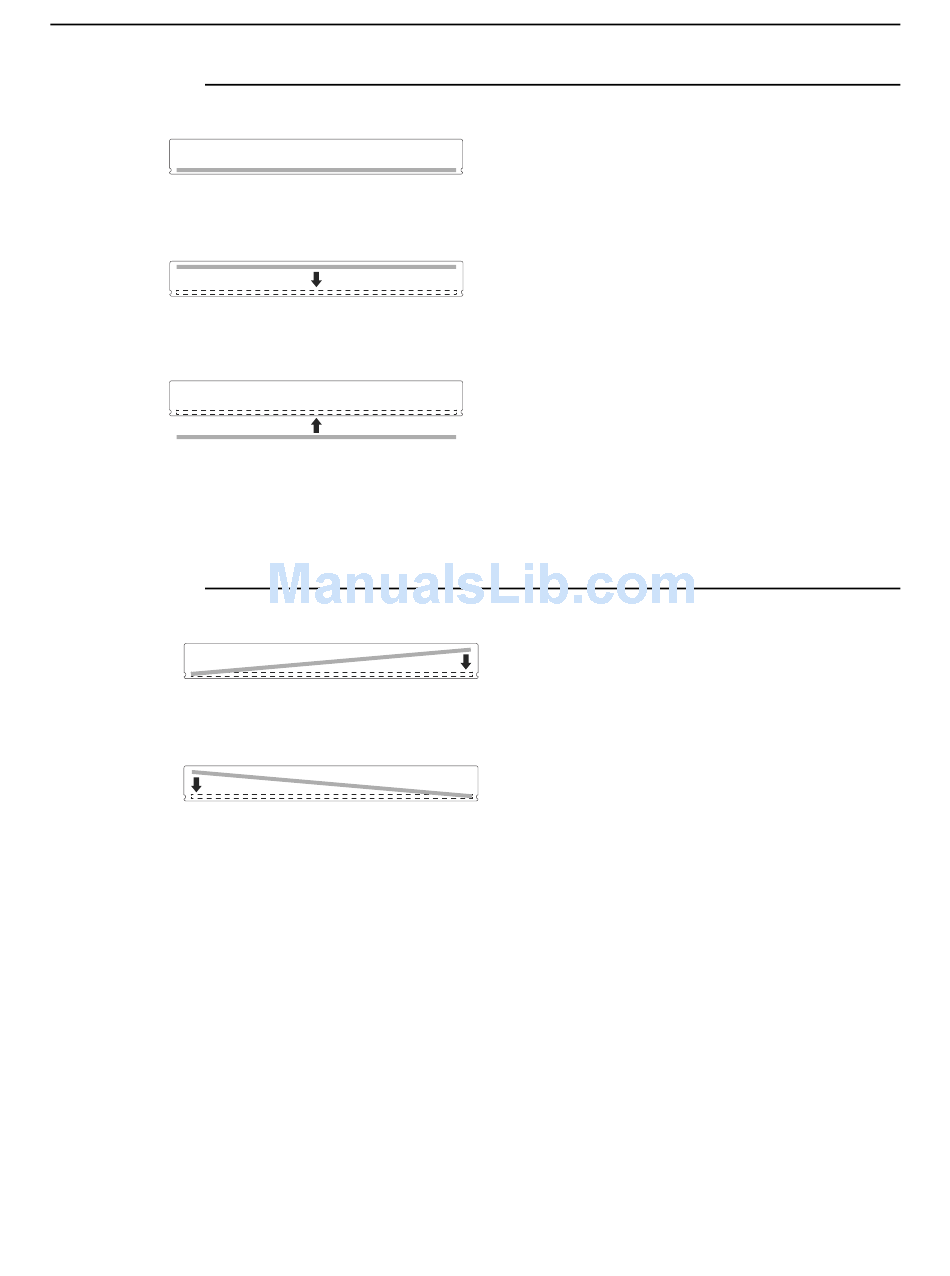

Scanning Beam Vertical Alignment

Tear Bar

Correct vertical alignment of the scanning

beam. The beam lines up with the end

notches and is parallel to the long edge of

the tear bar.

Raise the validator/bracket unit to move

the scanning beam forward. Once the

beam is correctly aligned with the end

notches, tighten the four screws.

Lower the validator/bracket unit to move

the scanning beam back. Once the beam

is correctly aligned with the end notches,

tighten the four screws.

Install the M4 x 6 mm screw in the right

threaded (outboard) hole and use the 3

mm allen wrench to gradually turn the

screw clockwise until the beam is parallel.

Install the M4 x 6 mm screw in the left

threaded hole and use the 3 mm allen

wrench to gradually turn the screw clock-

wise until the beam is parallel.
