Chapter 1
Attach the Power/Data Cable
Power/Data Cable
DB15 Connector
Validator
1. Plug the DB15 connector end of the power/data cable into the validator.
2. Route the power/data cable along the inside of the bracket, as shown in Figure 15.
3. Route a tie wrap from the inside of the bracket through the first upper slot as shown
30

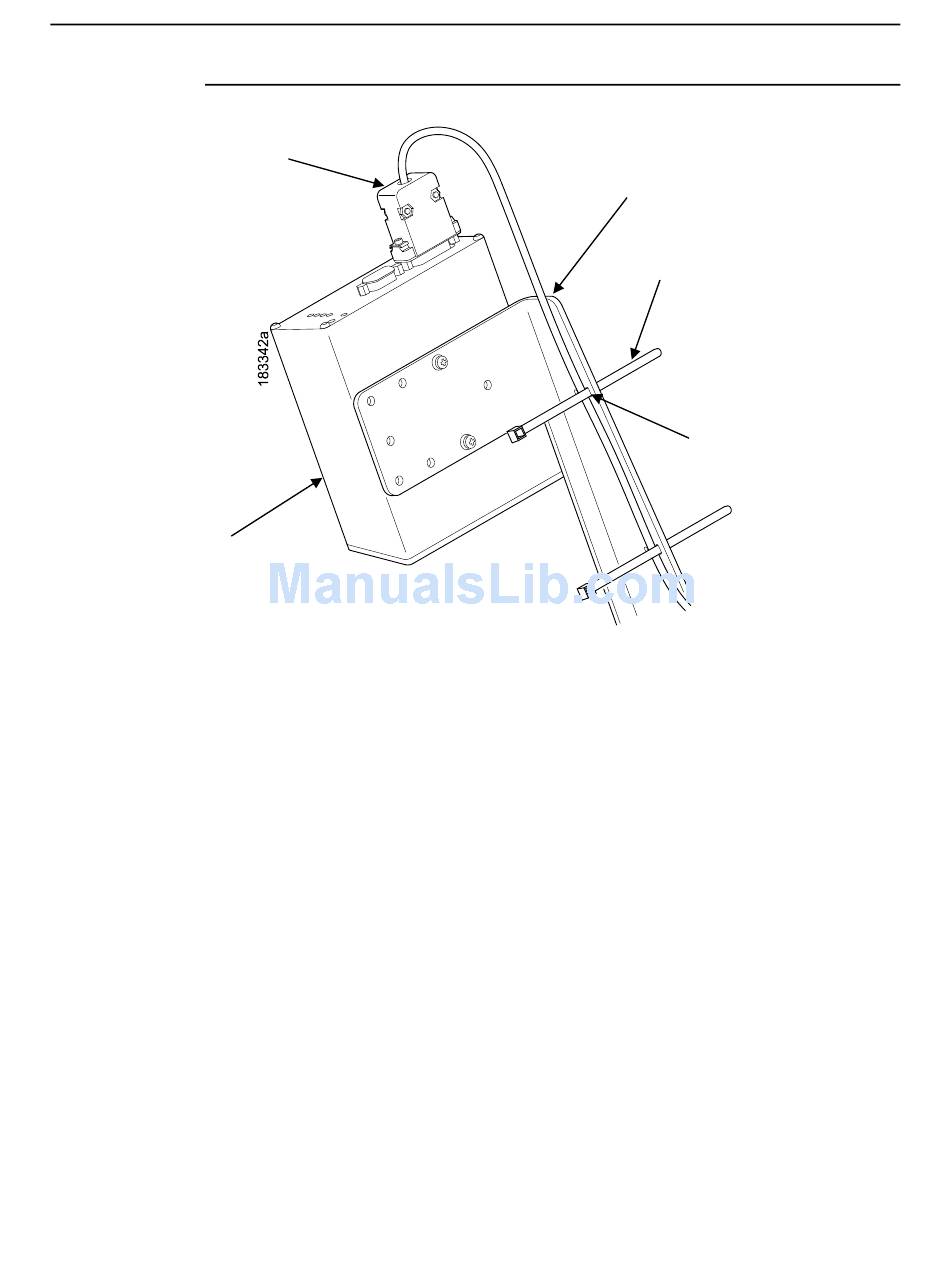

Figure 15. Attaching the Power/Data Cable
in Figure 15, keeping the power/data cable underneath the tie wrap.
Bracket
Tie Wrap (2)
First Upper
Slot
