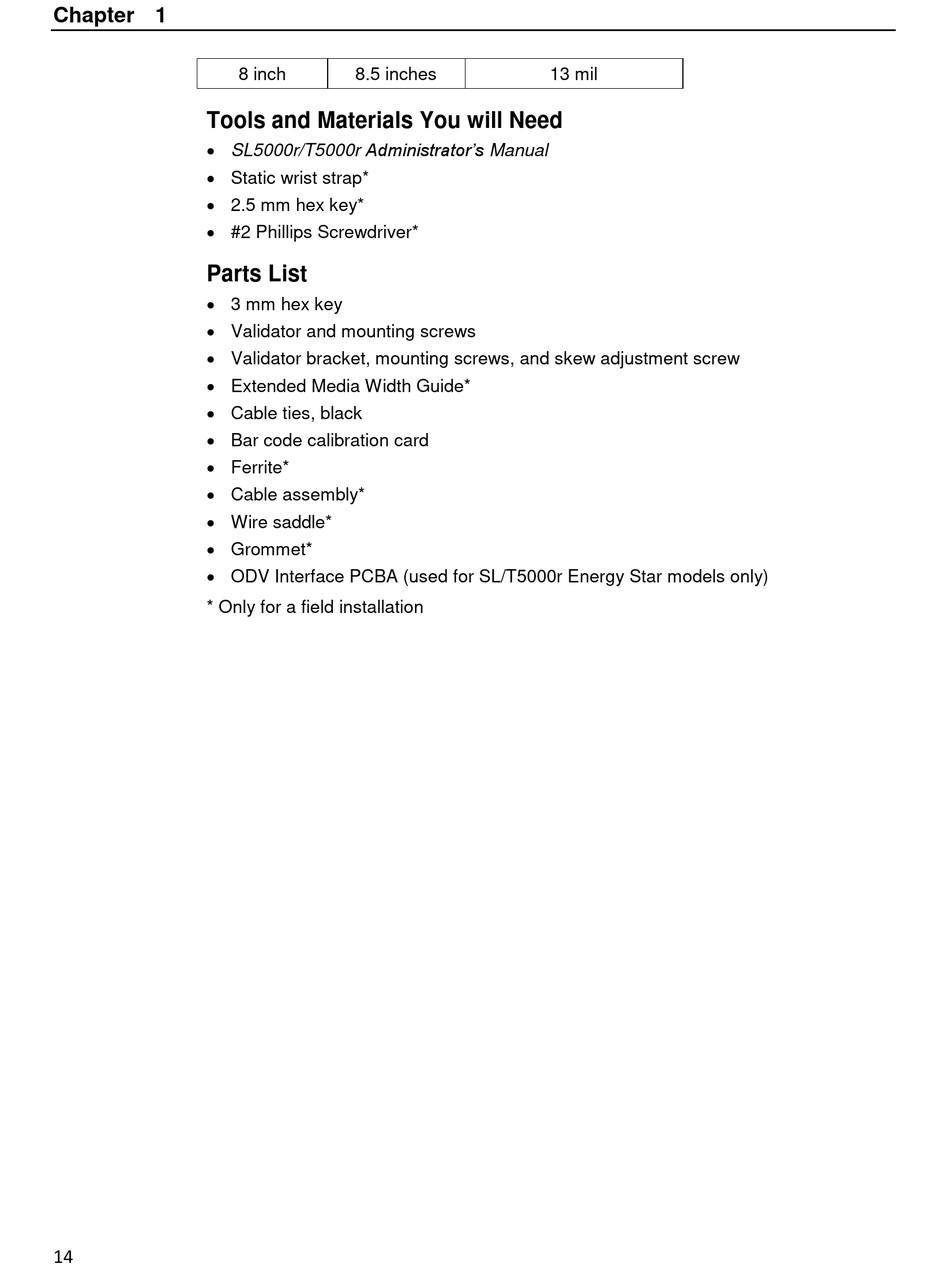

Chapter 1

Tools and Materials You will Need

 SL5000r/T5000r Administrator's Manual

 Static wrist strap*

 2.5 mm hex key*

 #2 Phillips Screwdriver*

Parts List

 3 mm hex key

 Validator and mounting screws

 Validator bracket, mounting screws, and skew adjustment screw

 Extended Media Width Guide*

 Cable ties, black

 Bar code calibration card

 Ferrite*

 Cable assembly*

 Wire saddle*

 Grommet*

 ODV Interface PCBA (used for SL/T5000r Energy Star models only)

* Only for a field installation

8 inch

8.5 inches

13 mil
