Adjust the Scanning Beam

NOTE:

Continuous, Tear-Off, and Tear-Off Strip

When the validator is first installed, the scanning beam may need to be aligned with the
two notches on the sides of the tear bar, as shown in Detail A of Figure 17. When the
scanning beam is properly aligned it will line up with the two notches.
See Figure 18, Detail A
on page 34

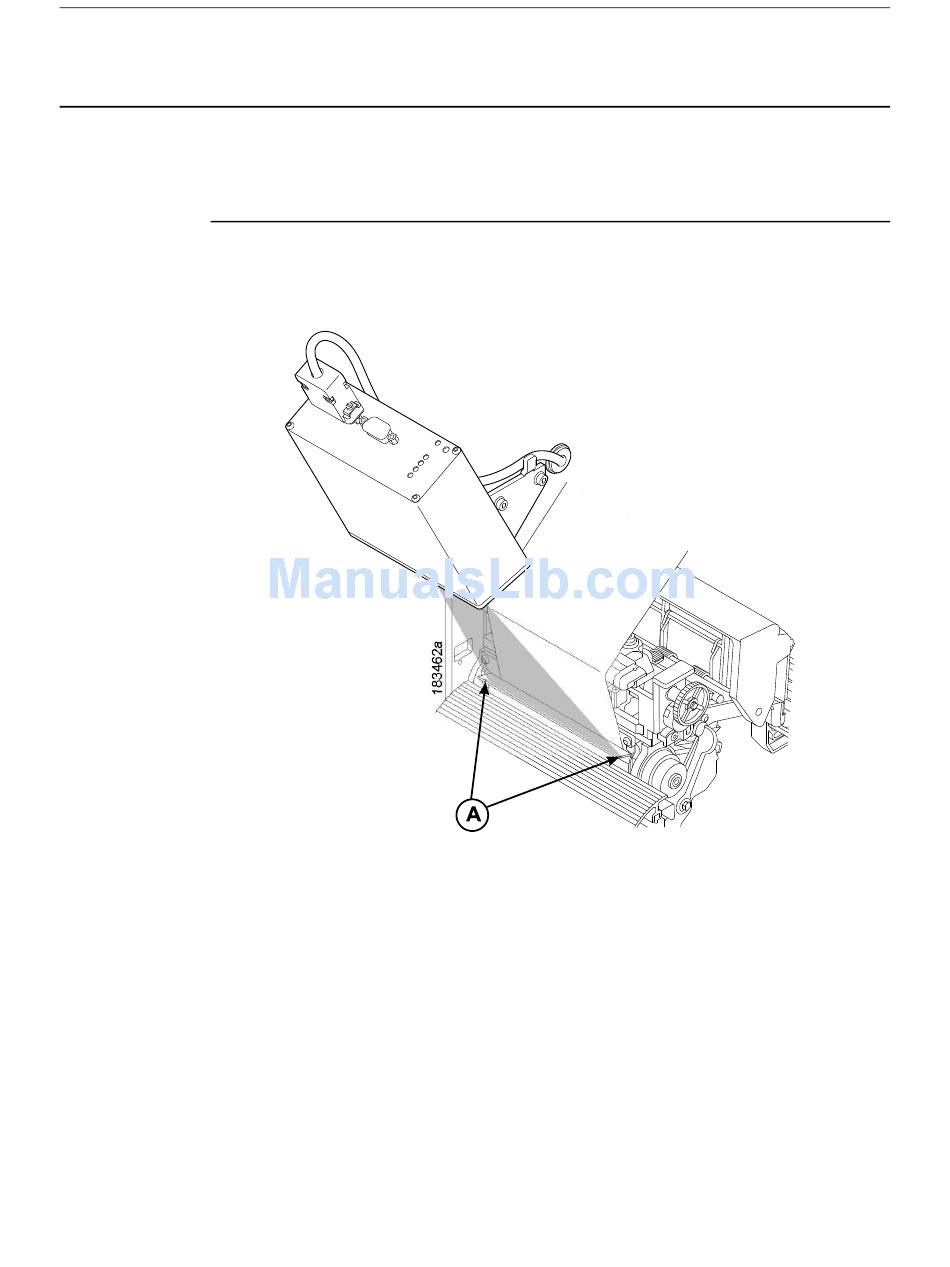

Figure 17. Aligning the Scanning Beam: Continuous, Tear-Off, and Tear-Off Strip
Make sure the printer is on and the scanning beam is on. If the beam is off,
press the RESET button for less than 2 seconds to turn on the beam.
Media Handling Modes Only
