Install The Motherboard Assembly - Oracle Exadata Storage Server X7-2 EF Service Manual

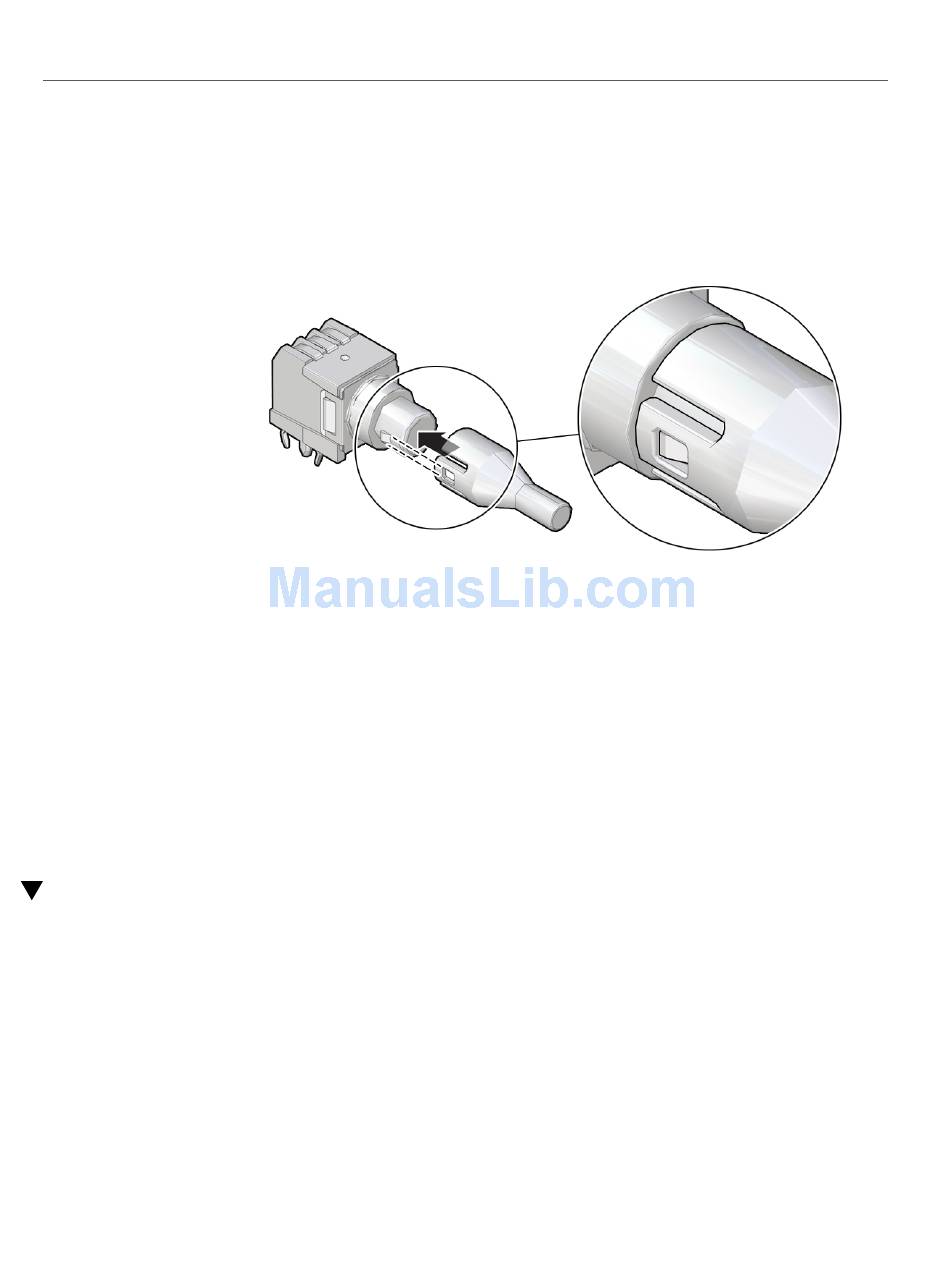

i. Match the rectangular holes on the outside of the light pipe with the
retaining clips on the housing.
ii. Push the light pipe onto the housing until the clips latch in the holes.
Related Information
"System Components" on page 21
■
"Replaceable Units" on page 23
■
"Replaceable Units" on page 23
■
"Install the Motherboard Assembly" on page 181
■

Install the Motherboard Assembly

Attach an antistatic wrist strap to your wrist, and then to a metal area on the
1.
chassis.
See "Take Antistatic Measures" on page
2. Carefully lift and place the motherboard assembly into the chassis [1].
63.
Servicing the Motherboard Assembly
Install the Motherboard Assembly
181
