Front and Back Panel Components

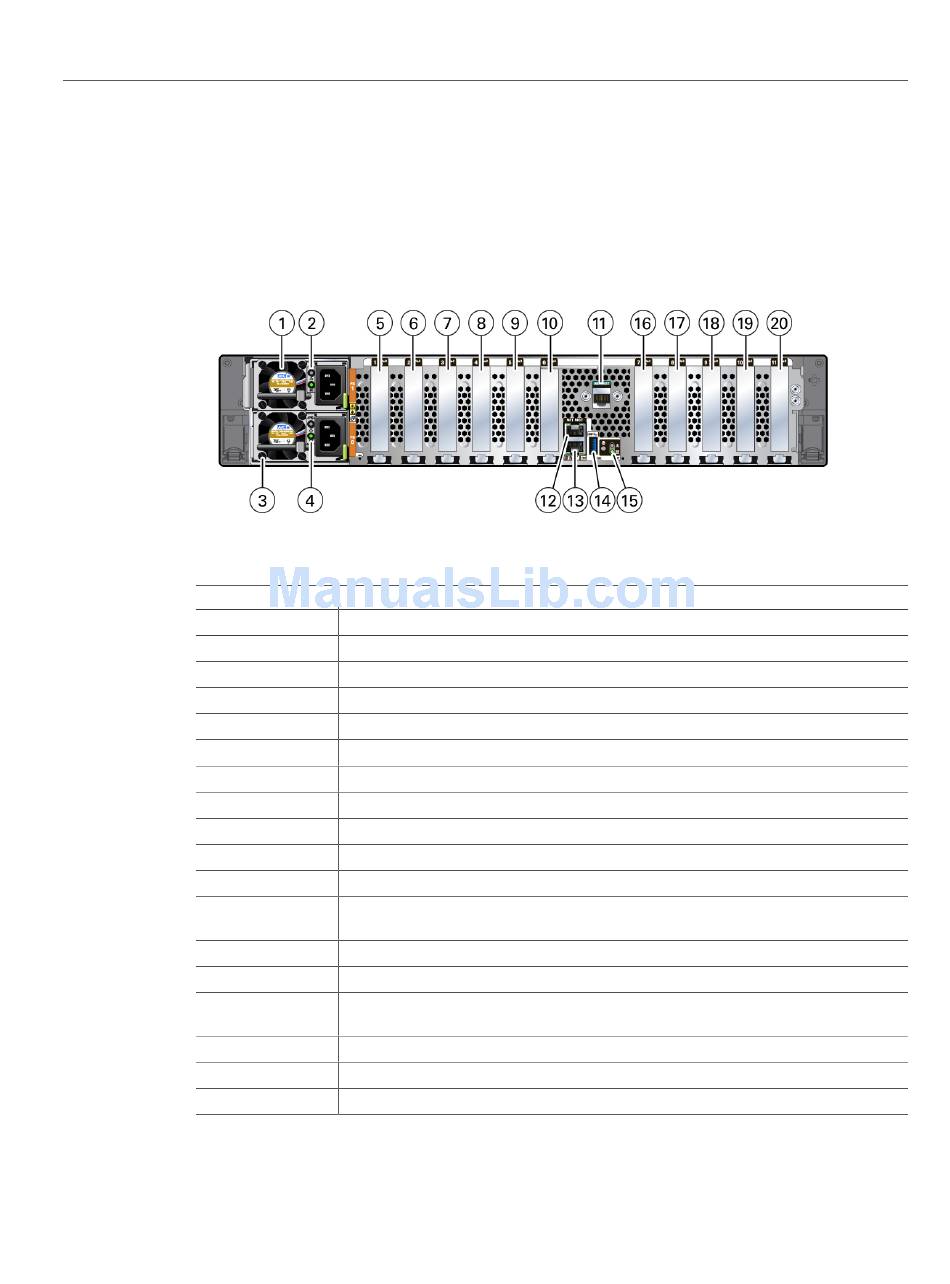

EF Back Panel Components and Cable
Connections
Callout
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18 Oracle Exadata Storage Server X7-2 EF and HC Service Manual • May 2018
Description
Power supply (PS 1)
PS 1 status indicators: Fault-Service Required LED: amber; AC OK LED: green
Power supply (PS 0)
PS 0 status indicators: Fault-Service Required LED: amber; AC OK LED: green
PCIe slot 1
PCIe slot 2 (Oracle Flash Accelerator F640)
PCIe slot 3 (Oracle Flash Accelerator F640)
PCIe slot 4 (Oracle Flash Accelerator F640)
PCIe slot 5 (Oracle Flash Accelerator F640)
PCIe slot 6 (Oracle Flash Accelerator F640)
Serial management (SER MGT) RJ-45 serial port
Oracle Integrated Lights Out Manager (ILOM) service processor (SP) network management
(NET MGT) RJ-45 10/100/1000BASE-T port
Network (NET) 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port: NET 0
USB 3.0 connector
System status LEDs: Locate Button/LED: white; Fault-Service Required: amber; System
OK: green
PCIe slot 7 (Oracle Dual Port QDR InfiniBand Adapter M4)
PCIe slot 8 (Oracle Flash Accelerator F640)
PCIe slot 9 (Oracle Flash Accelerator F640)
