Oracle Exadata Storage Server X7-2 EF Service Manual page 147

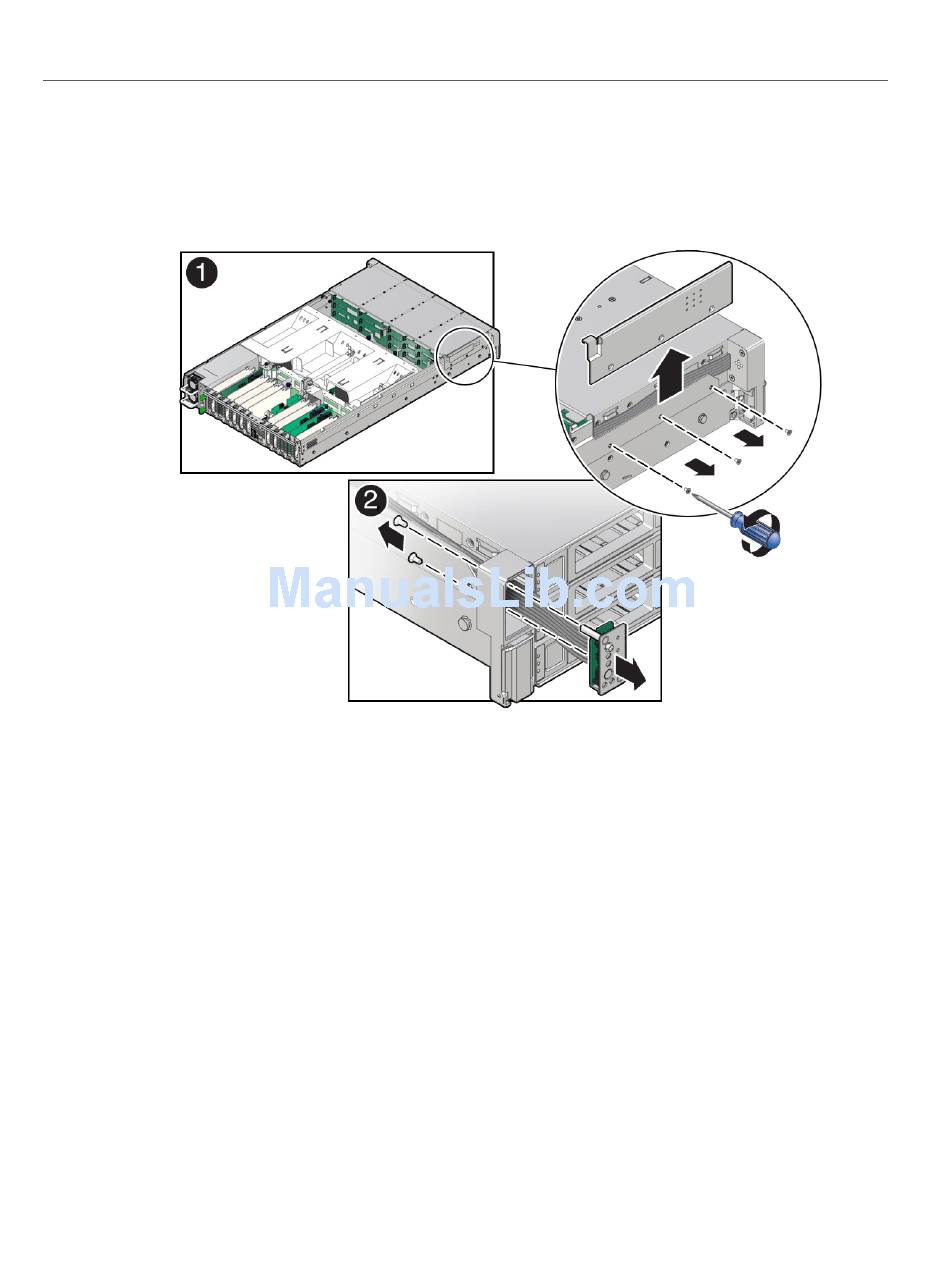

3. Remove the three No. 2 Phillips screws that secure the FIM cable and Temp
Sensor Access cover to the chassis [1].
4. Lift up and remove the FIM cable and Temp Sensor Access cover from the FIM
cable and Temp Sensor Access cover slot [1].
Set aside the FIM cable and Temp Sensor Access cover.
5. Remove the front LED indicator module [2].
Remove the two No. 2 Phillips screws that secure the LED indicator module
a.
to the server front panel.
Remove the LED indicator module and cable from the server front panel.
b.
Remove the LED indicator module cable by carefully pulling the cable through the cable
trough along the left side of the chassis.
Remove the Front LED Indicator Module
Servicing the Front LED Indicator Module 147
