2.2.3 Installing the Alcohol Cartridge
1. Remove the alcohol cartridge from the alcohol bottle
and gently shake off any excess alcohol solution.
Failure to do this may cause the absorbed alcohol to
clog the front of the alcohol cartridge. As a result, the
flow of the drawn airborne particles and alcohol vapor
will be disturbed, making it impossible to measure
correctly.
Note: Please wait until the outer surface of the alcohol
cartridge dries or wipe the excess alcohol off with a non-
abrasive, lint-free wipe.

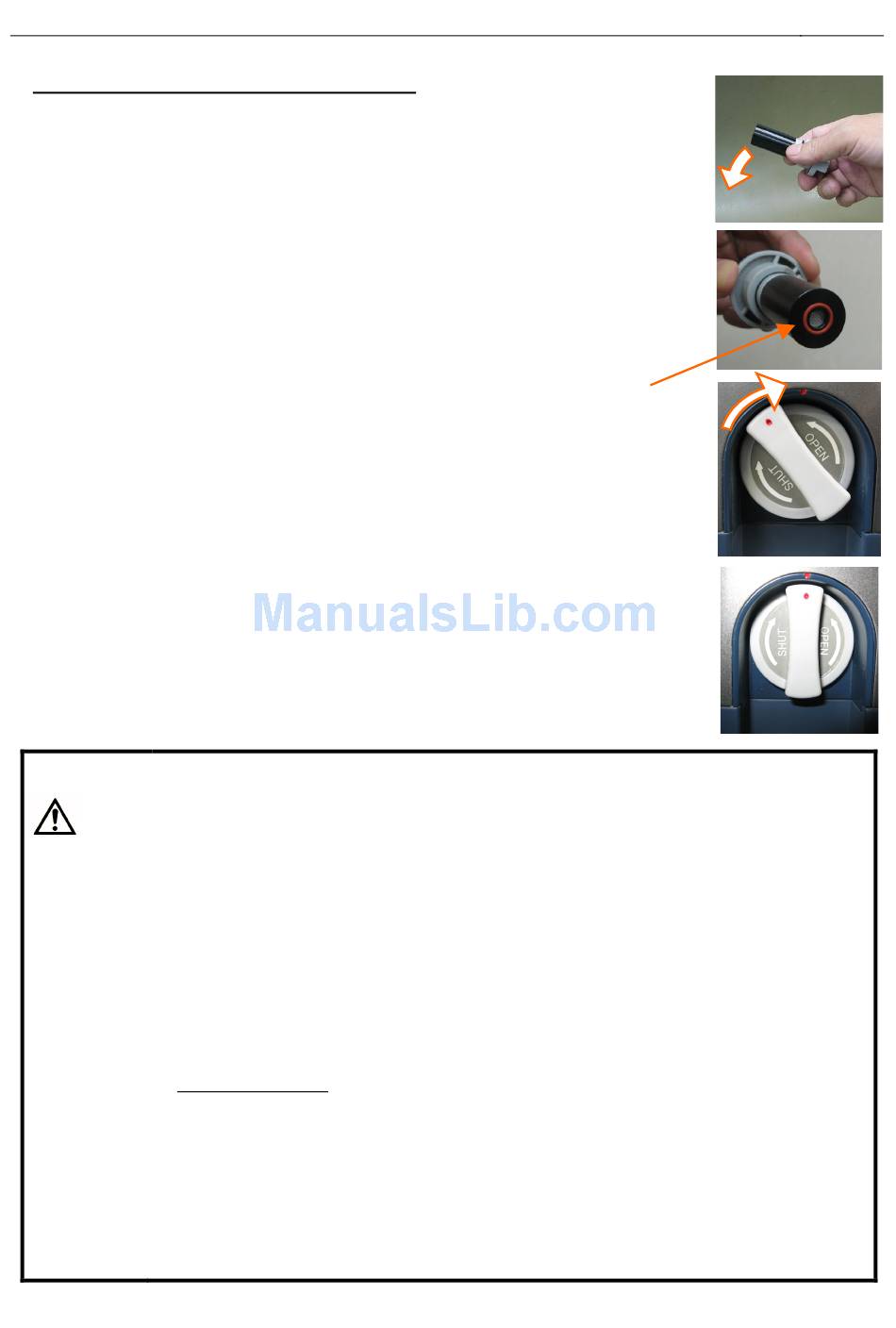

2. Insert the alcohol cartridge into the inlet as shown on
the right, and turn the alcohol cartridge clockwise about
45° until the marks align.
To confirm the alcohol cartridge is correctly inserted,
make sure the marks on the main unit and the alcohol
cartridge align as shown.
[Caution]
If
alcohol
insertion opening, please wipe the alcohol off with
a non-abrasive, lint-free wipe.
・To prevent the alcohol from absorbing moisture and from vaporizing,
always recap the alcohol bottle with the storage cap.
Caution
alcohol must be disposed of.
・When the instrument is not in use, the alcohol cartridge must be stored
in the alcohol bottle. To keep the inside of the instrument clean, seal
the cartridge insertion opening with the storage cap.
・Do not carry or store the instrument with the alcohol cartridge installed.
Failure to observe the above may cause the alcohol solution to get in the
optical system and affect measurements. When carrying or storing the
instrument, seal the cartridge insertion opening with the storage cap to
keep dust out.
・Always keep the storage cap and alcohol cartridge clean (Please refer to
5. Maintenance) If dust sticks to the side of the cartridge or inside the
cap, it may get into the instrument during an operation, affecting correct
measurements.
・After measuring for a long period of time, alcohol may collect inside the
cartridge insertion opening. If you continue measuring, the alcohol will
get into the optical system, affecting measurements. Please wipe the
accumulated alcohol off with a non-abrasive, lint-free wipe before using
the instrument.
accumulates
inside
The front of the
Alcohol Cartridge
the
cartridge
7
Contaminated
