Kanomax 3888 Quick Start Manual

Quick Start Guide
For detail description, please refer to the user manual
●
Include
●
●
Functions
DC jack
Supplies power with the
provided AC adaptor
Starts a measurement
Start
Stops a measurement
Stop
Power/Home button
Turns the power ON/OFF
To return to the Main screen in operation
General setting
Opens the menus to set the unit, calendar, data, sound,
language and to display instrument information
Measurement setting
Opens the menu to set the mode, alarm, save, remote
and temperature/humidity
Preset
Opens the menu to set or select up to 18 Presets
1.888.610.7664
Main unit Li-ion battery x 2 (installed in the unit)
●
USB cable Zero lter with tubing
●
CD-ROM: USB driver, Remote software, User manual
www.calcert.com
15
10 20
5 25
0 30

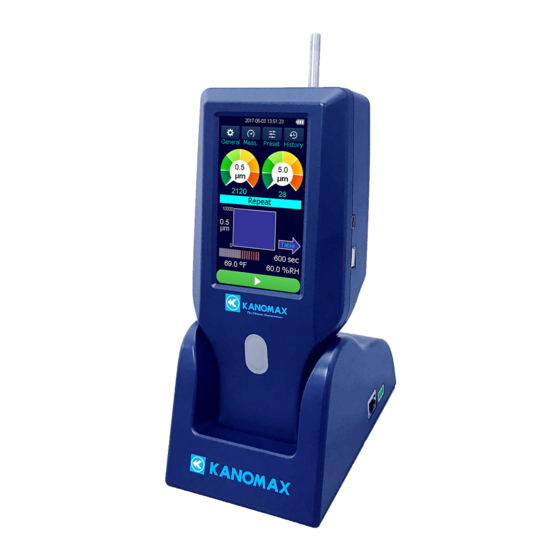

Handheld Particle Counter Model 3888 and 3889
Note:
the threaded exhaust port on back of the instrument
Inlet protective cap
●
AC adapter
●
Inlet protective cap
Remove cap while the unit is operating
Inlet
2.83L/min suction volume
Outer diameter 6.4mm
USB port
(for PC)
Connects with your PC by using
the USB cable
USB port
(for Printer & USB memory)
Connects with the printer by using the USB cable
Allows you to copy the measurement
results to the USB memory
Change chart types
Switches the chart types:
Bar → Circle → Table ∑
Threaded tripod mount
Attaches instrument to the tripod
Please do not cover or insert anything into
History
Views the historical data or measurements
Error
Tap the Error key to display an error description
Di erential
Opens the Di erential display on the Main screen
Cumulative Σ sales@calcert.com
Opens the Cumulative ∑ display on the Main screen
