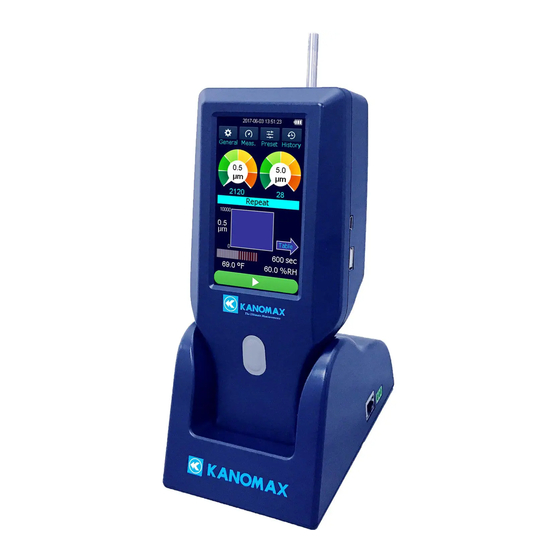

Handheld Particle Counter
MODEL 3888/3889
User Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3889 and is the answer not in the manual?

Questions and answers

Related Manuals for Kanomax 3889

Summary of Contents for Kanomax 3889

  • Page 1 Handheld Particle Counter MODEL 3888/3889 User Manual...
  • Page 3 List of Components ■ Standard Items MODEL Functions Body 3888 Body (or 3889) AC Adaptor Operates the instrument with AC power and 3888-10 charge the internal rechargeable battery USB Cable 3888-20 Communicates with PC or Printer Zero Count Filter with tubing...

  • Page 4: Important Safety Information

    Important Safety Information The symbols for the warnings used in this manual are defined below: Classifications Warning Warnings in this classification indicate risks that may result in serious injury or death if not observed. Caution Warnings in this classification indicate risks that may result in injury or damage to the surrounding objects if not observed.
  • Page 5 Failure to observe the above may cause electric shock, fire hazard, or damage. Please contact your local distributor or Kanomax service center for repair. Caution （Handle properly）Pull out the plug when the instrument is not in use.

  • Page 6: Table Of Contents

    §２ Getting Started ........................6 Charging Batteries ....................6 Caution ......................... 6 Checking the Temperature/Humidity Probe（Optional accessory for the MODEL 3889） .. 6 Turning the Power ON/OFF ..................6 §３ Measurement Procedures ....................6 Turning the Power ON ..................... 6 Internal Cleaning ....................

  • Page 7: １ Part Names And Functions

    6. Threaded tripod mount Attaches instrument to the tripod 7. Battery compartment The battery is replaceable 8. Temperature/Humidity probe terminal Connects the temperature/humidity (only for 3889) probe 9. Communication port with cradle Communicates with the cradle 10. Communication port RS-485 port 11.

  • Page 8: ２ Getting Started

    (more than ten minutes ) Checking the Temperature/Humidity Probe（Optional accessory for the MODEL 3889） Prolonged measurement under high temperature conditions or measurement under rapid ...

  • Page 9: Measurement

    Measurement Use the General setup and Measurement setup sub-menus to configure the necessary  settings. Set the measurement conditions from the Measurement mode. You can also select the  measurement conditions from the Preset. Return to the Main screen. Press the Start button to perform a measurement. ...

  • Page 10: ４ User Interface

    There are four configurations for the main screen that can be selected to best suit your  purposes. (The figures below show the user interfaces of 6 channel Model 3889.) From each Main screen, you can move to sub-menu screens.
  • Page 11 Icons Names Functions Opens the menus to set the unit, calendar, data, General setting sound, language display instrument information Measurement Opens the menu to set the mode, alarm, save, setting remote and temperature/humidity Preset Opens the menu to set or select up to 18 Presets History Views the historical data or measurements Change chart...

  • Page 12: General Setting

    Icons Names Functions Displays the selected measurement modes Display Mode Main Repeat Repeat Single Single Continuous Continuous Calculation Calculation Mode Display Displays the selected preset modes Display Mode Preset 1 Preset 2 Preset 3 Repeat P1(Repeat) P2(Repeat) P3(Repeat) Single P1(Single) P2(Single) P3(Single) Continuous...
  • Page 13 Icons Names Functions Confirms the information and perform operation on the entire measured data Memory remaining: Displays the ratio of the free space to the  whole memory capacity. Number of Records: Displays the number of the stored  records. Copy: Copies all files to the USB flash memory.

  • Page 14: Measurement Setting

    Measurement setting Select [Measurement Setup] in the Main screen to set the mode, alarm, save, remote, and  temperature/humidity. Icons Names Functions Selects 6 options of the measurement modes. Measurements will be performed under the latest mode setting. Repeat mode: Repeats the measurement of configured sampling ...
  • Page 15 "Ethernet", "Wi-Fi" and each connection method’s parameters. ID is the identification number of the device. Connection: starts to connect outer PC  Sets measurement with the temperature/humidity probe Temperature/ ON/OFF and set the temperature unit (°C or °F) Humidity (Only for 6-channel model 3889）...

  • Page 16: Preset

    Preset Select [Preset] in the Main screen to set and select measurement conditions.  Three options of Preset number provide 6 measurement modes each; therefore 18  measurement conditions in total can be preset. When setting the Preset, select one of the 18 measurement modes in the Step 3, then set ...

  • Page 17: Print Example

    Print Example The following figures show print examples of 6 channel model. (1) Repeat mode (3) Calculation mode 2017/3/30 11: 02 E= - - - 2017/3/30 11: 02 E= - - - Repeat Number Calculation Number Location Location S-Time 00:21 S-Time 00:21 I -Time...
  • Page 18 (4) ISO mode (5) GB mode 2017/3/30 11: 02 E= - - - 2017/3/30 11: 02 E= - - - Number From Number From S-Time 00:21 S-Time 00:21 I -Time 00:21 I -Time 00:21 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Piont=001 Times=001...

  • Page 19: Screen Transition

    Screen Transition The screens are structured by 6 layers and the operations are mainly performed from the  Layer 2 and higher. The Main screen for ready to measure is displayed when the instrument is not in the  measuring process. The Main screen for measurement is displayed when performing measurements.

  • Page 20: Specifications

    §５ Specifications Product Handheld Particle Counter 3888 (3-channel model) Model 3889 (6-channel model) Measuring Light scattering method 6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0µm） Size distribution 3 channels (0.3, 0.5, 5.0µm） 0.1CFM (2.83L/min) Flow rate Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4）...
  • Page 21 USB (Host: for printer and USB flash memory, Standard Device: for PC） Communication Cradle (Option) Ethernet, Wi-Fi, and RS485 (9600, 19200, 38400 baud) Media Internal memory Recording Number and media Up to 10,000 records in CSV format format Language English, Japanese, Chinese, and Spanish Internal supply Li-ion rechargeable battery (Replaceable）...

  • Page 22: ６ Troubleshooting

    If the reading remains high, the instrument may malfunction. Please contact Kanomax USA. Laser power failure or flow error Particle count or → The instrument may malfunction. concentration is too low.

  • Page 23: ７ Warranty And After Service

    PRODUCT as determined by KUI. Warranty for such replacements shall not extend the original warranty period of the defective PRODUCT. To obtain service under this warranty, you must notify Kanomax USA, Inc. on or before the expiration of the warranty period to obtain directions for returning the defective product. You are responsible for all return shipping charges to the authorized Kanomax service center.

  • Page 24: Contact Information

    §８ Contact Information U.S.A.  KANOMAX USA, INC. 219 US Hwy 206, Andover, New Jersey 07821 U.S.A. TEL: (800)-247-8887 / (973)-786-6386 FAX: (973)-786-7586 URL: http://www.kanomax-usa.com/ E-Mail: info@kanomax-usa.com JAPAN  KANOMAX JAPAN INC. 2-1 Shimizu, Suita City, Osaka 565-0805, Japan TEL: 81-6-6877-0183 FAX: 81-6-6879-5570 URL: http://www.kanomax.co.jp...
