Installing the Manifold

The standard manifolds are installed using the following procedure:
Locating Pin
70

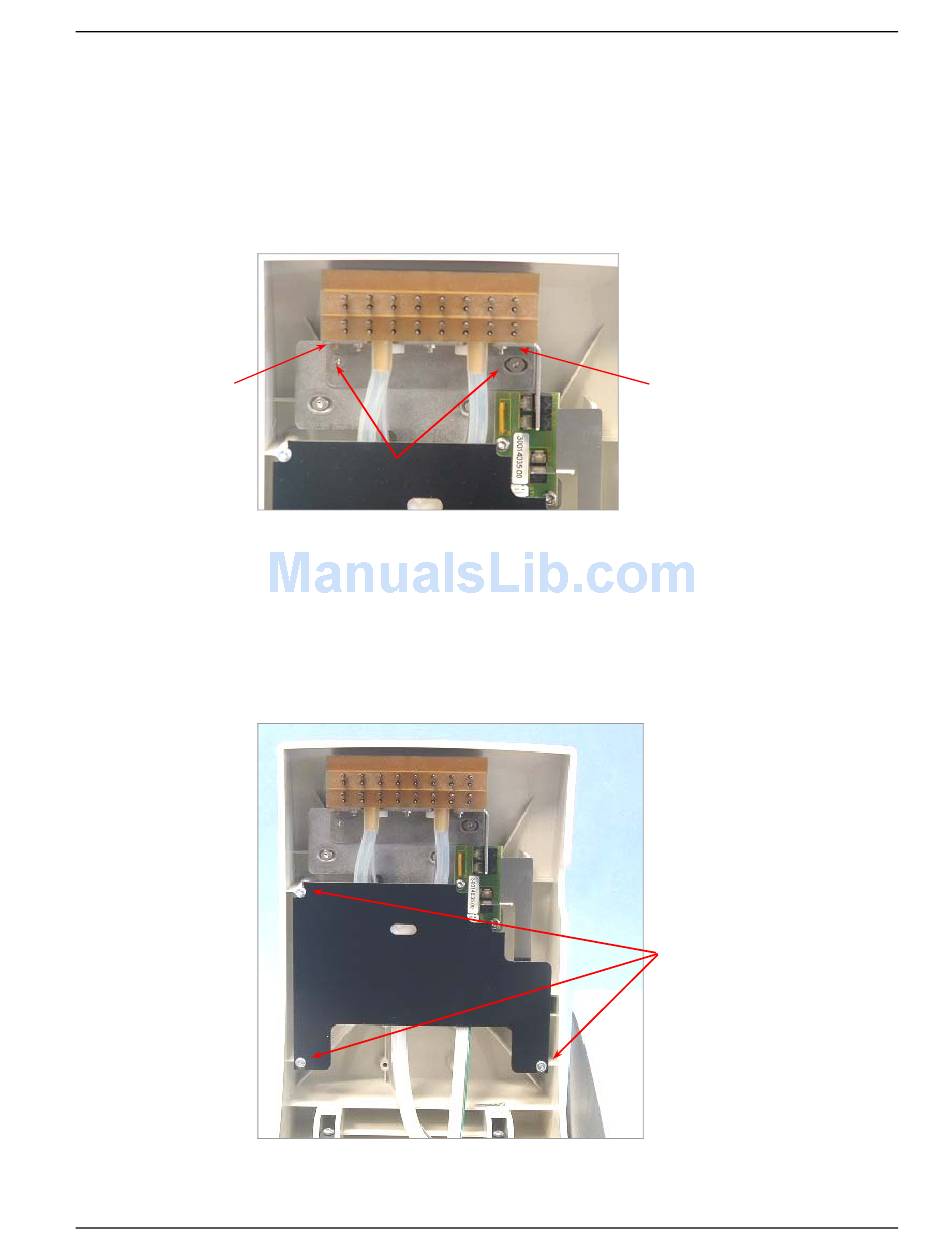

1. Lift the manifold arm.
2. Carefully fit the manifold onto the manifold arm and ensure that the locating
pins are correctly inserted through the holes in the bracket.
2 screws
3. Tighten the manifold into place using the two screws using the Allen key
provided.
4. Fit the dispensing tubes (marked blue) onto the top connector on the rear of
the manifold.
5. Fit the aspirating tubes (marked red) onto the two bottom connectors on the
rear of the manifold (marked with red labels).
6. Attach the black manifold guard plate with the 3 screws using the Allen key
provided.
7. Lower the manifold arm and prime the instrument before starting a wash
program.
Locating Pin
3 screws
Bio-Plex Pro and Bio-Plex Pro II Wash Stations
