Defining New Programs
Aspiration Position Diagrams
Position Bottom

Process Step: Dispense

56

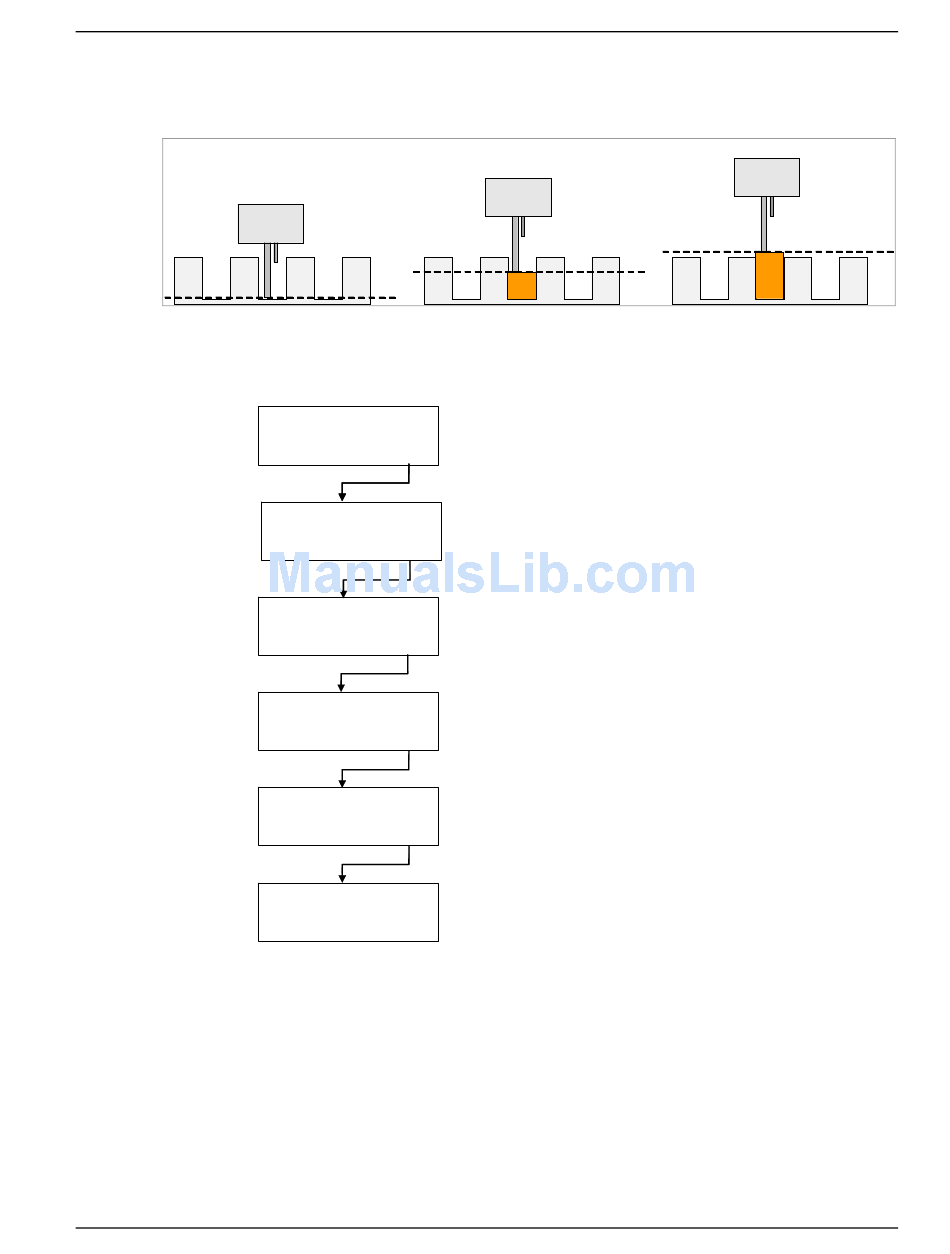

Aspiration Position Diagrams
CX PX DISP
- + EXIT OK
Z-POS: OVERFLOW
- + EXIT OK
VOLUME 300µl
- + EXIT OK
CHANNEL 1
- + EXIT OK
FL.RATE 300 µl/s
- + EXIT OK
CX PY DISP
- + EXIT OK
Position Custom
Select and confirm dispensing step (DISP)
CX = Cycle Number
PX = Program Step Number
Select required dispensing position
(OVERFLOW, CUSTOM, MOVE OVER.,
MOVE CUST. or BOTTOM).
Select the volume of solution to be used
(50 - 400 µl in increments of 50 µl).
Select the channel to be used (1 - 4)
depending on instrument configuration.
Select required flow rate (drip to 500µl/sec).
After the process step has been defined the initial
display appears.
CX = Cycle Number
PY = Program Step Number incremented by 1
Press OK to define another dispense step
or press – or + to select the next program step,
Program End or a new cycle.
Bio-Plex Pro and Bio-Plex Pro II Wash Stations
Position Overflow
