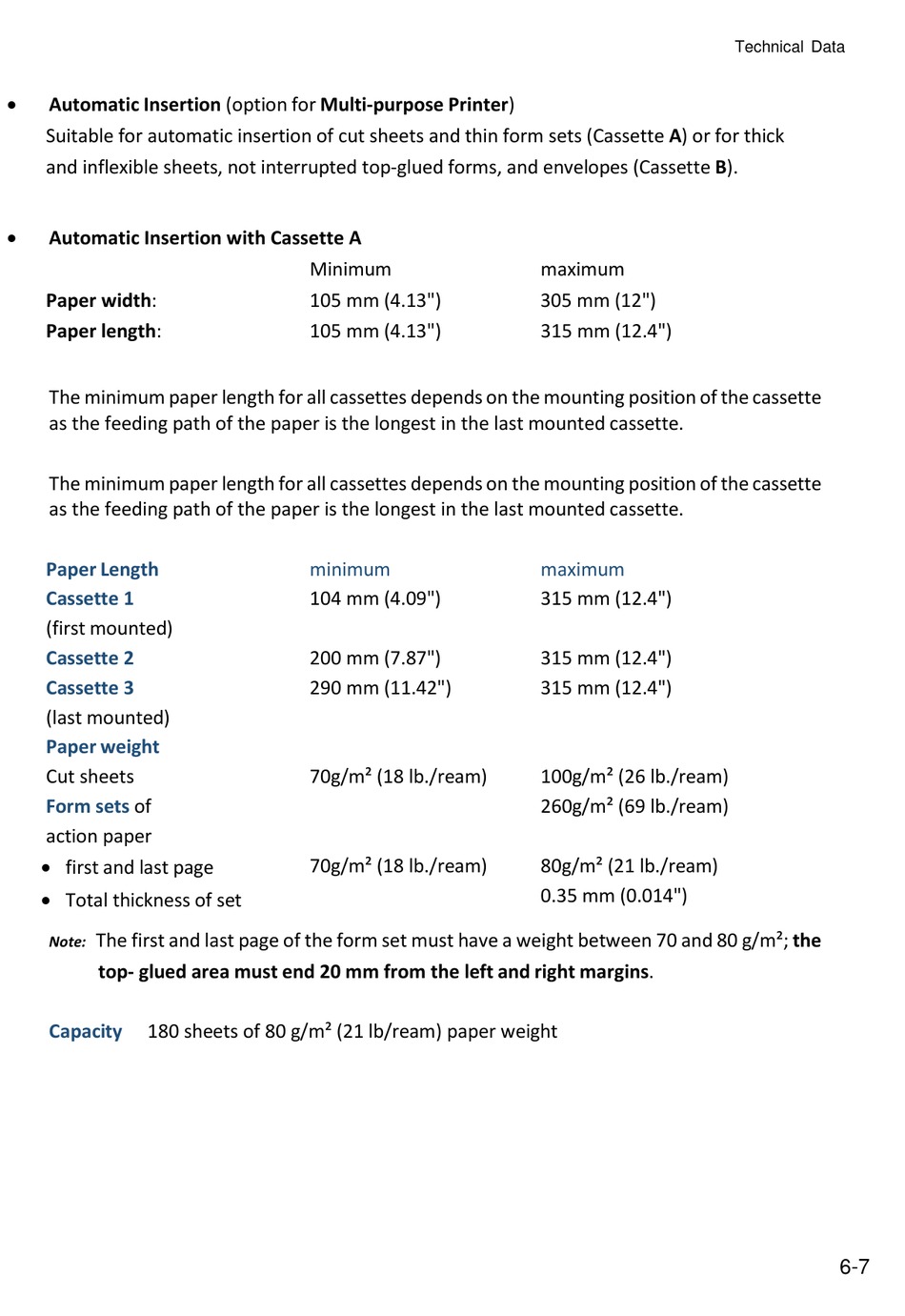

Automatic Insertion (option for Multi-purpose Printer)
Suitable for automatic insertion of cut sheets and thin form sets (Cassette A) or for thick
and inflexible sheets, not interrupted top-glued forms, and envelopes (Cassette B).

Automatic Insertion with Cassette A
Paper width:
Paper length:
The minimum paper length for all cassettes depends on the mounting position of the cassette
as the feeding path of the paper is the longest in the last mounted cassette.
The minimum paper length for all cassettes depends on the mounting position of the cassette
as the feeding path of the paper is the longest in the last mounted cassette.
Paper Length
Cassette 1
(first mounted)
Cassette 2
Cassette 3
(last mounted)
Paper weight
Cut sheets
Form sets of
action paper
 first and last page
 Total thickness of set
The first and last page of the form set must have a weight between 70 and 80 g/m²; the
Note:
top- glued area must end 20 mm from the left and right margins.
Capacity 180 sheets of 80 g/m² (21 lb/ream) paper weight
Minimum
105 mm (4.13")
105 mm (4.13")
minimum
104 mm (4.09")
200 mm (7.87")
290 mm (11.42")
70g/m² (18 lb./ream)
70g/m² (18 lb./ream)
maximum
305 mm (12")
315 mm (12.4")
maximum
315 mm (12.4")
315 mm (12.4")
315 mm (12.4")
100g/m² (26 lb./ream)
260g/m² (69 lb./ream)
80g/m² (21 lb./ream)
0.35 mm (0.014")
