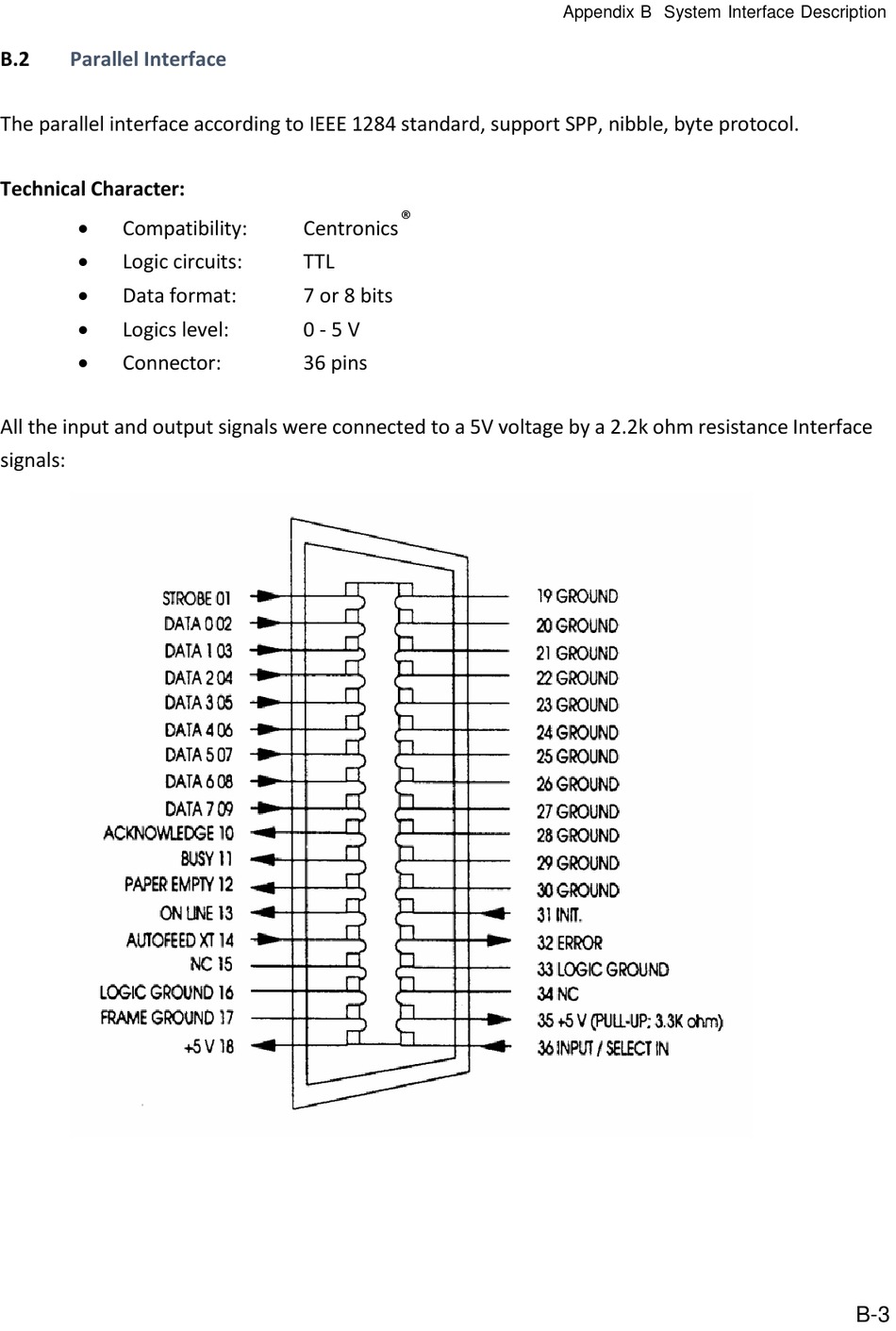

B.2

Parallel Interface

The parallel interface according to IEEE 1284 standard, support SPP, nibble, byte protocol.
Technical Character:

Compatibility:

Logic circuits:

Data format:

Logics level:

Connector:
All the input and output signals were connected to a 5V voltage by a 2.2k ohm resistance Interface
signals:
Centronics ®
TTL
7 or 8 bits
0 - 5 V
36 pins
Appendix B System Interface Description
B-3
